Discontinued, replaced by the E67A.
ACTi E67 Features
- Max Resolution: 1920 x 1080
- Image Sensor: Progressive Scan CMOS with Superior Low Light Sensitivity
- Sensor Size: 1/2.8"
- Day/Night: No
- Mechanical IR Cut Filter: No
- Minimum Illumination: Color: 0.1 lux at F1.4 (30 IRE, 2400°K)
- IR Illuminators: No
- IR Illuminator Range: N/A
- Lens Type: Vari-focal
- Focal Length: f2.8 - 12 mm / F1.4
- Zoom: N/A
- Iris: Fixed
- Focus: Manual
- Field of View: Horizontal: 92.5° - 35.9° (Pan: 0° - 350°; Tilt: 17° - 163°; Rotate: 0° - 350°)
- Compression Styles: H.264 HP, MJPEG
- Frame Rate: 30 fps at 1920 x 1080; 30 fps at 1280 x 720; 30 fps at 640 x 480; 15 fps at 320 x 240
- Image Settings: Basic WDR (72 dB); White balance: automatic, hold, and manual; Brightness; Contrast; Sharpness(auto); Auto gain control; Digital noise reduction; Flickerless; Image flip and mirror; user defined text overlay on video
- Privacy Mask: 4 configurable regions
- Built-in Microphone: No
- Audio Capabilities: N/A
- Alarm/Event Management: Video motion detection (3 regions); Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video, snapshot to FTP
- ONVIF: Yes
- Security: IP address filtering; HTTPs encryption; Password protected user levels; Anonymous login; IEEE802.1X network access control
- Users: N/A
- On-board Storage: MicroSDHC/MicroSDXC memory card slot (card not included)
- Indoor/Outdoor: Indoor
- Housing/Enclosure Rating: Vandal Resistant (IK09 rated); Transparent dome cover
- Dimensions: 146 mm x 113.9 mm (5.8" x 4.5")
- Weight: 503 g (1.1 lb)
- Operating Temperature: -10 °C ~ 50 °C (14 °F ~ 122 °F)
- Operating Humidity: 10% ~ 85% RH
- Power: PoE Class 2 (IEEE802.3af) / 2.64W
- Warranty: 3 Years

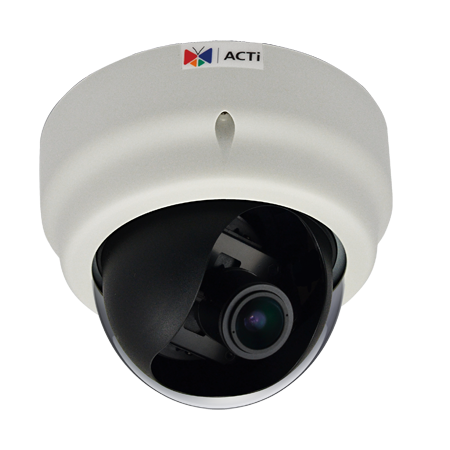

ACTi E67 Overview
This is a cutting-edge 2 MP digital video surveillance camera. It can compress and transmit real time images with outstanding image quality through a standard TCP/IP network. This camera is your best choice to build an intelligent IP surveillance system. This device supports 2 compression formats: H.264 High Profile and MJPEG. No more external motion sensors are required. You may assign up to 3 video motion detection areas. By tuning the object size and sensitivity, it will reliably detect objects passing though is view. Hardware motion detection also offers better sensitivity and faster response time than software motion detection. To extend the capabilities of the IP Camera series, a powerful surveillance program is included in the package for free and you can set up the camera to receive e-mail notification with snapshots. Users can easily use an existing PC as a digital video recorder. Scheduled recording and manual recording keep every important video recorded in the local hard disk. Reliable and accurate motion detection with instant warning enables immediate response in every condition. Quick and simple search and playback function lets you easily find the images and video you want.
