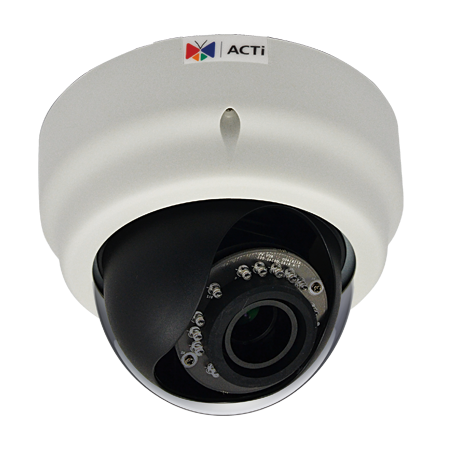

ACTi E69 Features
- Max Resolution: 1920 x 1080
- Image Sensor: 1/2.8" Progressive Scan CMOS with Superior Low Light Sensitivity
- Day/Night: Yes
- Mechanical IR Cut Filter: Yes
- Minimum Illumination: Color: 0.1 lux at F1.4 (30 IRE, 2400°K); B/W: 0 lux (IR LED on)
- IR Illuminators: Yes
- IR Illuminator Range: 15m (0 lux, 30 IRE, Gain 255, Auto shutter mode)
- Lens Type: Vari-focal, Board mount
- Focal Length: f2.8-12mm / F1.4
- Zoom: N/A
- Iris: Fixed
- Focus: Manual
- Field of View: Horizontal: 92.5°-35.9° (Pan: 0°-350°, Tilt: 17°-163°, Rotate: 0°-350°)
- Compression Styles: H.264 HP, MJPEG
- Frame Rate: 30 fps at 1920 x 1080; 30 fps at 1280 x 720; 30 fps at 640 x 480; 15 fps at 320 x 240
- WDR Technology: Basic WDR (72 dB)
- Image Settings: White balance: automatic, hold, and manual; Brightness; Contrast; Sharpness (auto); Auto gain control; Digital noise reduction; Flickerless; User defined text overlay on video; Image flip and mirror
- Privacy Mask: 4 configurable regions
- Built-in Microphone: No
- Audio Capabilities: Supports two-way audio with terminal block input/output
- Alarm/Event Management: Video motion detection (3 regions); Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video, snapshot to FTP
- ONVIF: Yes
- Security: IP address filtering; HTTPs encryption; Password protected user levels; Anonymous login; IEEE802.1X network access control
- Users: Software defined
- On-board Storage: MicroSDHC/MicroSDXC memory card slot (card not included)
- Indoor/Outdoor: Indoor
- Housing/Enclosure Rating: Vandal Resistant (IK09 rated)
- Dimensions: (Ø x H) 146 mm x 114 mm (5.75" x 4.5")
- Weight: 538g (1.186lb)
- Operating Temperature: -10 °C ~ 50 °C (14 °F ~ 122 °F)
- Operating Humidity: 10% ~ 85% RH
- Power: PoE Class 2 (IEEE802.3af) / 6.49 W
- Warranty: 3 Years
