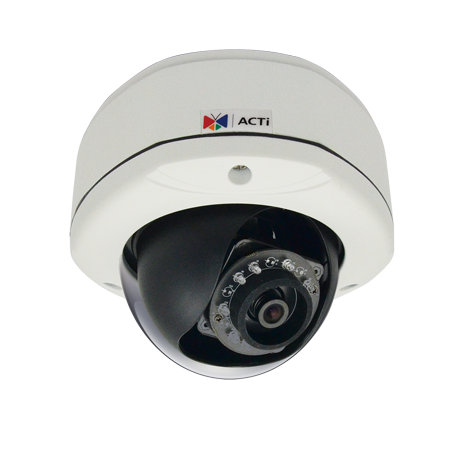

ACTi E71A 1MP Day/Night IR Outdoor Vandal Fixed Dome Network Camera

Discontinued; replaced by the E72A, E76, E78.

ACTi E71A Features

• Max Resolution: 1280 x 720
• Image Sensor: 1/4" Progressive Scan CMOS
• Day/Night: Yes
• Mechanical IR Cut Filter: Yes
• Minimum Illumination: Color: 0.1 lux at F2.0 (30 IRE, 2400°K); B/W: 0 lux (IR LED on)
• IR Illuminators: Yes
• IR Illuminator Range: 15 meters
• Lens Type: Fixed board mount
• Focal Length: f2.93 mm / F2.0
• Zoom: N/A
• Iris: Fixed
• Focus: Fixed
• Field of View: Horizontal: 70.0°; Pan: 0° - 350°; Tilt: 17° - 163°; Rotate: 0° - 350°
• Compression Styles: H.264 HP, MJPEG
• Frame Rate: 30 fps at 1280 x 720; 30 fps at 640 x 480; 15 fps at 320 x 240
• Image Settings: White balance: automatic, hold, and manual; Brightness; Contrast; Auto gain control; Digital noise reduction; Flickerless; User defined text overlay on video; Image flip & mirror
• Privacy Mask: Yes, 4 configurable regions
• Built-in Microphone: No
• Audio Capabilities: Supports two-way audio with terminal block input/output
• Alarm/Event Management: Video motion detection (3 regions); Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Upload video, snapshot to FTP
• ONVIF: Yes
• Security: IP address filtering; HTTPS encryption; Password protected user levels; Anonymous login; IEEE 802.1X network access control
• Users: N/A
• On-board Storage: Yes
• Indoor/Outdoor: Outdoor
• Housing/Enclosure Rating: Weatherproof (IP66 rated); Transparent vandal proof dome cover (IK10 rated)
• Dimensions: 150.76 mm x 116.9 mm (6" x 4.6")
• Weight: 975 g (2.15 lb)
• Operating Temperature: -20°C ~ 50°C (-4°F ~ 122°F)
• Operating Humidity: 10% ~ 85% RH
• Power: PoE Class 2 (IEEE802.3af) / 3.29 W (IR on)
• Warranty: Two Years
