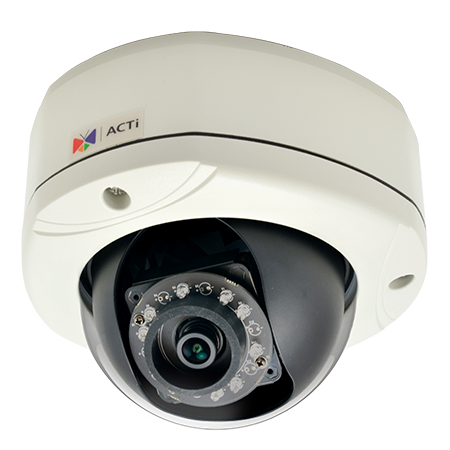

ACTi E75 1.3MP Day/Night IR Outdoor Vandal Fixed Dome IP Network Camera

ACTi

ACTi E75 1.3MP Day/Night IR Outdoor Vandal Fixed Dome IP Network Camera

$380.00
Discontinued
SKU: E75
Link to Manufacturer's Page

Contact

Discontinued; replaced by the E76.

ACTi E75 Features:

  • Max Resolution: 1280 x 960
  • Image Sensor: 1/3" Progressive Scan CMOS
  • Day/Night: Yes with Superior Low Light Sensitivity
  • Mechanical IR Cut Filter: Yes
  • Minimum Illumination: Color: 0.1 lux at F1.85 (30 IRE, 2400°K); B/W: 0 lux (IR LED on)
  • IR Illuminators: IR LED x 10 (850nm)
  • IR Illuminator Range: 15 m (0 lux, 30 IRE, Gain 255, Auto shutter mode)
  • Lens Type: Fixed Board Mount
  • Focal Length: f3.6 mm / F1.85
  • Zoom: N/A
  • Iris: Fixed
  • Focus: Fixed
  • Field of View: Horizontal viewing angle: 77.9°; Pan: 0°~350°; Tilt: 17°~163°; Rotate: 0°~350°
  • Compression Styles: H.264 HP, MJPEG
  • Frame Rate: 30 fps at 1280 x 960; 60 fps at 1280 x 720; 30 fps at 640 x 480; 15 fps at 320 x 240; 15 fps at 320 x 240
  • WDR Technology: Basic WDR (83.5dB)
  • Image Settings: White balance: automatic, hold, and manual; Brightness; Contrast; Sharpness (auto); Auto gain control; Digital noise reduction; Flickerless, User defined text overlay on video, Image flip & mirror
  • Privacy Mask: Yes, 4 configurable regions
  • Built-in Microphone: No
  • Audio Capabilities: Audio-in, Audio-out terminal blocks
  • Alarm/Event Management: Video motion detection (3 regions); External device through digital input; Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video, snapshot to FTP Server; Active external device through digital output
  • ONVIF: Yes
  • Security: IP address filtering; HTTPS encryption; Password protected user levels; Anonymous login; IEEE 802.1X network access control
  • Users: Software defined
  • On-board Storage: MicroSDHC/MicroSDXC memory card slot (card not included)
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: Weatherproof (IP66 rated); Vandal proof(IK10 rated); Transparent dome cover
  • Dimensions: 150.4 mm x 116.9 mm (5.9" x 4.6")
  • Weight: 975 g (2.15 lb)
  • Operating Temperature: -40°C ~ 50°C (-40 °F ~ 122°F)
  • Operating Humidity: 10% ~ 85% RH
  • Power: PoE Class 2 (IEEE802.3af) / 6.05 W (IR on)
  • Warranty: 3 Years
