Discontinued - Recommended Replacement: Z714

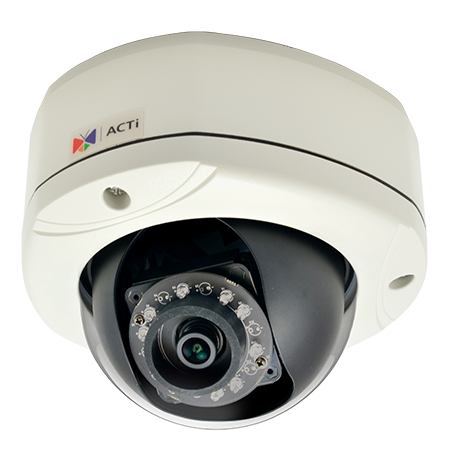

ACTi E77 Features:
- Max Resolution: 3648 x 2736
- Image Sensor: 1/2.3" Progressive Scan CMOS
- Day/Night: Yes
- Mechanical IR Cut Filter: Yes
- Minimum Illumination: Color: 0.1 lux at F1.8 (30 IRE, 2400°K); B/W: 0 lux (IR LED on)
- IR Illuminators: IR LED x 10 (850nm)
- IR Illuminator Range: 15 m (0 lux, 30 IRE, Gain 255, Auto shutter mode)
- Lens Type: Fixed Board Mount
- Focal Length: f3.6 mm / F1.8
- Zoom: N/A
- Iris: Fixed
- Focus: Fixed
- Field of View: Horizontal viewing angle: 101.4°; Pan: 0°~350°; Tilt: 17°~163°; Rotate: 0°~350°
- Compression Styles: H.264 HP, MJPEG
- Frame Rate: 6 fps at 3648 x 2736; 6 fps at 3648 x 2160; 6 fps at 2592 x 1944; 6 fps at 2048 x 1536; 30 fps at 1920 x 1080; 30 fps at 1280 x 720; 30 fps at 640 x 480; 15 fps at 320 x 240; 15 fps at 320 x 240
- WDR Technology: Basic WDR (65.2 dB)
- Image Settings: White balance: automatic, hold, and manual; Brightness; Contrast; Sharpness (auto); Auto gain control; Digital noise reduction; Flickerless, User defined text overlay on video, Image flip & mirror
- Privacy Mask: Yes, 4 configurable regions
- Built-in Microphone: No
- Audio Capabilities: Audio-in, Audio-out terminal blocks
- Alarm/Event Management: Video motion detection (3 regions); External device through digital input; Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video, snapshot to FTP Server; Active external device through digital output
- ONVIF: Yes
- Security: IP address filtering; HTTPS encryption; Password protected user levels; Anonymous login; IEEE 802.1X network access control
- Users: Software defined
- On-board Storage: MicroSDHC/MicroSDXC memory card slot (card not included)
- Indoor/Outdoor: Outdoor
- Housing/Enclosure Rating: Weatherproof (IP66 rated); Vandal proof (IK10 rated); Transparent dome cover
- Dimensions: 150.4 mm x 116.9 mm (5.9" x 4.6")
- Weight: 1.006 kg (2.218 lb)
- Operating Temperature: -40°C ~ 50°C (-40 °F ~ 122°F)
- Operating Humidity: 10% ~ 85% RH
- Power: PoE Class 2 (IEEE802.3af) / 6.49 W (IR on)
- Warranty: 3 Years
