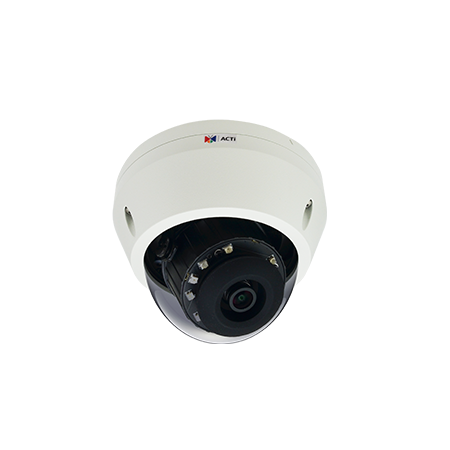

ACTi E78 2MP Extreme WDR Outdoor Dome Network Camera

ACTi

ACTi E78 2MP Extreme WDR Outdoor Dome Network Camera

$399.00
Discontinued
SKU: E78
Link to Manufacturer's Page

Contact

Discontinued - Recommended Replacement: E73A, Z94, A71

ACTi E78 Features:

  • Image Sensor 1/2.8" Progressive Scan CMOS
  • Effective Pixels: 1944 (H) x 1224 (V) (2.38 MP)
  • Day / Night: Yes
  • Low Light Sensitivity: Superior
  • Minimum Illumination: Color: 0.1 lux at F1.85 (30 IRE, 2400°K); B/W: 0 lux (IR LED on)
  • Mechanical IR Cut Filter: Yes
  • IR LED: Adaptive IR LED x 10 (850nm)
  • IR Working Distance: 30 m (0 lux, 30 IRE, Gain 255, Auto shutter mode)
  • Focal Length / Aperture: Fixed focal, f3.6mm / F1.85
  • Iris: Fixed iris
  • Focus: Fixed focus
  • Mount Type: Board mount
  • Horizontal Viewing Angle: 84.5°
  • Compression: H.264 (Baseline / Main / High profile), MJPEG
  • Max. Frame Rate vs. Resolution: 60 fps at 1920 x 1080; 60 fps at 1280 x 720; 30 fps at 640 x 480; 30 fps at 320 x 240
  • Image Enhancement: Extreme WDR (145 dB); White balance: automatic, hold and manual; Brightness; Contrast; Sharpness (auto); Auto gain control; 2D+3D digital noise reduction; Flickerless; Defogging; Digital image stabilizer; Privacy Mask 4 configurable regions; User defined text on video; Image flip, mirror and rotation
  • Built-in Analytics: Motion Detection, Tamper, Digital Image Stabilizer, Line Crossing, Enter Area, Missing Object, Unattended Object
  • Audio-In: Cable with 3.5mm phone jack
  • Audio-Out: Cable with 3.5mm phone jack
  • Security: IP address filtering; HTTPS encryption; Password protected user levels; Anonymous login; IEEE 802.1X network access control
  • Alarm Trigger: Video motion detection (10 regions); External device through digital input; Sound detection
  • Alarm Response: Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video or snapshot to FTP Server; Active external device through digital output
  • Local Storage: MicroSDHC memory card slot (card not included)
  • Power Source / Consumption: PoE Class 2 (IEEE802.3af) / 5.04W; DC 12V (adapter not included) / 3.96W
  • Weight: 551g (1.21lb)
  • Dimensions (Ø x H): 115 x 87 mm (5.53" x 3.43")
  • Environmental Casing: Weatherproof (IP68 rated); Vandal proof (IK10 rated); Transparent dome cover
  • Operating Temperature: -40°C ~ 50°C (-40°F ~ 122°F)
