Discontinued - Recommended Replacement: E815, E816

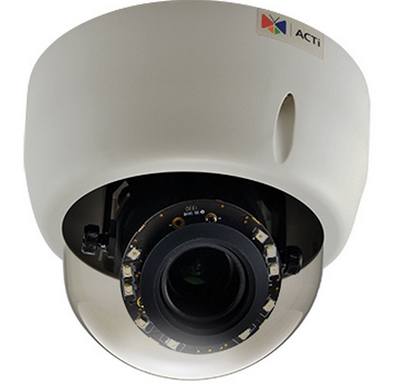

ACTi E817 Features:
- Max Resolution: 2048 (H) x 1536 (V) (3.15 MP)
- Image Sensor: 1/3" Progressive Scan CMOS
- Day/Night: Yes
- Mechanical IR Cut Filter: Yes
- Minimum Illumination: Color: 0.1 lux at F1.4 (30 IRE, 2400°K); B/W: 0 lux (IR LED on)
- IR Illuminators: Yes
- IR Illuminator Range: 30 m (0 lux, 30 IRE, Gain 255, Auto shutter mode)
- Lens Type: Vari-focal board mount
- Focal Length: f3.1 - 13.3mm / F1.4 - 4.0
- Zoom: 4.3x optical / 3 sec (1x to 4.3x)
- Iris: P-iris
- Focus: Auto focus
- Field of View: 64.4° ~ 26.4°
- Compression Styles: H.264 (Baseline/ Main/ High profile), MJPEG
- Frame Rate: 20 fps at 2048 x 1536; 30 fps at 1920 x 1080; 30 fps at 1280 x 720; 30 fps at 800 x 600; 30 fps at 640 x 480; 15 fps at 320 x 240
- WDR Technology: Superior WDR (110 dB)
- Image Settings: White balance: automatic, hold and manual; Brightness; Contrast; Sharpness (auto); Auto gain control; 2D+3D digital noise reduction; Flickerless
- Privacy Mask: Yes, 4 configurable regions
- Built-in Microphone: No
- Audio Capabilities: 2-way (Line-in, Line-out via terminal block)
- Alarm/Event Management: Video motion detection (3 regions); External device through digital input; Sound detection; Notify control center; Go to PTZ preset point or preset tour; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Save video or snapshot to FTP server; Activate external device through digital output
- ONVIF: Yes
- Security: IP address filtering; HTTPs encryption; Password protected user levels; Anonymous login; IEEE802.1X network access control
- Users: Software defined
- On-board Storage: MicroSDHC/MicroSDXC memory card slot (card not included)
- Indoor/Outdoor: Outdoor
- Housing/Enclosure Rating: Weatherproof (IP67); Vandal proof (IK10); Transparent dome cover
- Dimensions: 152.8 mm x 131 mm (6'' x 5.2'')
- Weight: 1.4 kg (3.1 lb)
- Operating Temperature: -30°C ~ 50°C (-22°F ~ 122°F)
- Operating Humidity: 10% ~ 85% RH
- Power: PoE Class 3 (IEEE802.3af) / 7.84 W (built-in heater and IR on)
- Warranty: 3 Years
