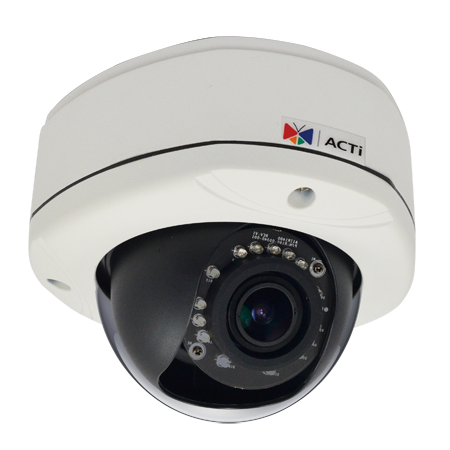

ACTi E86 3 Megapixel Day/Night IR WDR Vandal Outdoor Dome Network Camera

Discontinued, replaced by the E86A.

ACTi E86 Features

• Max Resolution: 2048 x 1536
• Image Sensor: 1/3" Progressive Scan CMOS
• Day/Night: Yes
• Mechanical IR Cut Filter: Yes
• Minimum Illumination: Color: 0.1 lux at F1.4 (30 IRE, 2400°K); B/W: 0 lux (IR LED on)
• IR Illuminators: Yes
• IR Illuminator Range: 15 m (0 lux, 30 IRE, Gain 255, Auto shutter mode)
• Lens Type: Vari-focal board mount
• Focal Length: f2.8-12mm/f1.4
• Zoom: N/A
• Iris: Fixed
• Focus: Manual
• Field of View: Horizontal: 70.5° - 28.8°; Pan: 0° - 330°; Tilt: 0° - 180°
• Compression Styles: H.264 HP, MJPEG
• Frame Rate: 15 fps at 2048 x 1536; 30 fps at 1920 x 1080; 30 fps at 1280 x 720; 30 fps at 640 x 480; 15 fps at 320 x 240
• WDR Technology: Superior WDR (107 dB)
• Image Settings: White balance: automatic, hold, and manual; Brightness; Contrast; Sharpness (auto); Auto gain control; Digital noise reduction; Flickerless; User defined text overlay on video; Image flip and mirror
• Privacy Mask: 4 configurable regions
• Built-in Microphone: No
• Audio Capabilities: None
• Alarm/Event Management: Video Motion Detection (3 regions); Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video, Snapshot to FTP
• Security: IP address filtering; HTTPS encryption; Password protected user levels; Anonymous login; IEEE802.1X network access control
• Users: Software defined
• On-board Storage: MicroSDHC/MicroSDXC memory card slot (card not included)
• Indoor/Outdoor: Outdoor
• Housing/Enclosure Rating: Weather-proof (IP66 rated) and Vandal-proof (IK10 rated)
• Dimensions: 150.76 mm x 116.9 mm (6" x 4.6")
• Weight: 1015g (2.24lb)
• Operating Temperature: -40 °C ~ 50 °C (-40 °F ~ 122 °F)
• Operating Humidity: 10% ~ 85% RH
• Power: PoE Class 2 (IEEE802.3af) / 5.39 W (IR on)
• Warranty: Two Years
