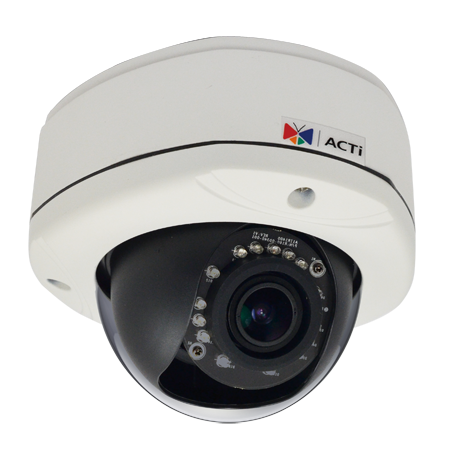

ACTi E86A 3MP IR WDR Vandal Outdoor Dome Network Camera
ACTi E86A 3MP IR WDR Vandal Outdoor Dome Network Camera

ACTi

ACTi E86A 3MP IR WDR Vandal Outdoor Dome Network Camera

Sale price$419.20
Discontinued
SKU: E86A

Contact

ACTi E86A Features

  • Max Resolution: 2048 x 1536
  • Image Sensor: 1/3" Progressive Scan CMOS
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes
  • Minimum Illumination: Color: 0.1 lux at F1.4 (30 IRE, 2400°K); B/W: 0 lux (IR LED on)
  • IR Illuminators: Yes
  • IR Illuminator Range: 15 m (0 lux, 30 IRE, Gain 255, Auto shutter mode)
  • Lens Type: Vari-focal board mount
  • Focal Length: f2.8-12mm/f1.4
  • Zoom: N/A
  • Iris: Fixed
  • Focus: Manual
  • Field of View: Horizontal: 70.5° - 28.8°; Pan: 0° - 330°; Tilt: 0° - 180°
  • Compression Styles: H.264 HP, MJPEG
  • Frame Rate: 15 fps at 2048 x 1536; 30 fps at 1920 x 1080; 30 fps at 1280 x 720; 30 fps at 640 x 480; 15 fps at 320 x 240
  • WDR Technology: Superior WDR (107 dB)
  • Image Settings: White balance: automatic, hold, and manual; Brightness; Contrast; Sharpness (auto); Auto gain control; Digital noise reduction; Flickerless; User defined text overlay on video; Image flip and mirror
  • Privacy Mask: 4 configurable regions
  • Built-in Microphone: No
  • Audio Capabilities: Supports two-way audio with terminal block input/output
  • Alarm/Event Management: Video Motion Detection (3 regions); Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video, Snapshot to FTP
  • Security: IP address filtering; HTTPS encryption; Password protected user levels; Anonymous login; IEEE802.1X network access control
  • Users: Software defined
  • On-board Storage: MicroSDHC/MicroSDXC memory card slot (card not included)
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: Weather-proof (IP66 rated) and Vandal-proof (IK10 rated)
  • Dimensions: 150.76 mm x 116.9 mm (6" x 4.6")
  • Weight: 1015g (2.24lb)
  • Operating Temperature: -40 °C ~ 50 °C (-40 °F ~ 122 °F)
  • Operating Humidity: 10% ~ 85% RH
  • Power: PoE Class 2 (IEEE802.3af) / 5.39 W (IR on)
  • Warranty: Two Years
