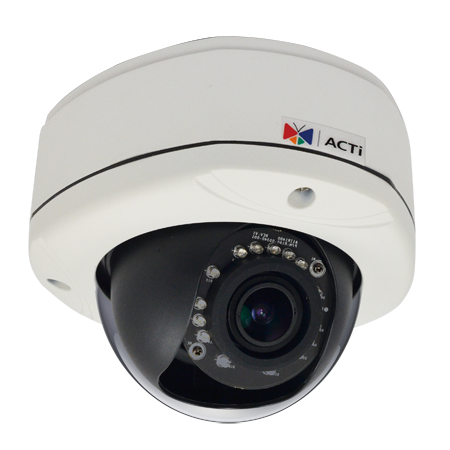

ACTi E88 1.3 Megapixel Day/Night IR WDR Vandal Outdoor Dome Network Camera

ACTi E88 Features

• Max Resolution: 1280 x 960
• Image Sensor: 1/3" Progressive Scan CMOS
• Day/Night: Yes with Superior Low Light Sensitivity
• Mechanical IR Cut Filter: Yes
• Minimum Illumination: Color: 0.1 lux at F1.4 (30 IRE, 2400°K); B/W: 0 lux (IR LED on)
• IR Illuminators: IR LED x 15 (850nm)
• IR Illuminator Range: 15 m (0 lux, 30 IRE, Gain 255, Auto shutter mode)
• Lens Type: Vari-focal Board Mount
• Focal Length: f2.8-12mm/F1.4
• Zoom: N/A
• Iris: Fixed
• Focus: Manual
• Field of View: Horizontal: 83-31.1°; Pan: 0° - 350°; Tilt: 17° - 163°; Rotate: 0° - 350°
• Compression Styles: H.264 HP, MJPEG
• Frame Rate: 30 fps at 1280 x 960; 60 fps at 1280 x 720; 30 fps at 640 x 480; 15 fps at 320 x 240
• WDR Technology: Basic WDR (83.5 dB)
• Image Settings: White balance: automatic, hold, and manual; Brightness; Contrast; Sharpness (auto); Auto gain control; Digital noise reduction; Flickerless; User defined text overlay on video; Image flip and mirror
• Privacy Mask: 4 configurable regions
• Built-in Microphone: No
• Audio Capabilities: Audio-in and Audio-out with terminal blocks
• Alarm/Event Management: Video motion detection (3 regions); Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video, snapshot to FTP
• ONVIF: Yes
• Security: IP address filtering; HTTPS encryption; Password protected user levels; Anonymous login; IEEE 802.1X network access control
• Users: Software defined
• On-board Storage: MicroSDHC/MicroSDXC memory card slot (card not included)
• Indoor/Outdoor: Outdoor
• Housing/Enclosure Rating: Weather-proof (IP66 rated) and Vandal-proof (IK10 rated)
• Dimensions: (Ø x H) 150.76 mm x 116.9 mm (6" x 4.6")
• Weight: 1015g (2.24 lb)
• Operating Temperature: -40 °C ~ 50 °C (-40 °F ~ 122 °F)
• Operating Humidity: 10% ~ 85% RH
• Power: PoE Class 2 (IEEE802.3af) / TBC W (IR on)
• Warranty: 3 Years
