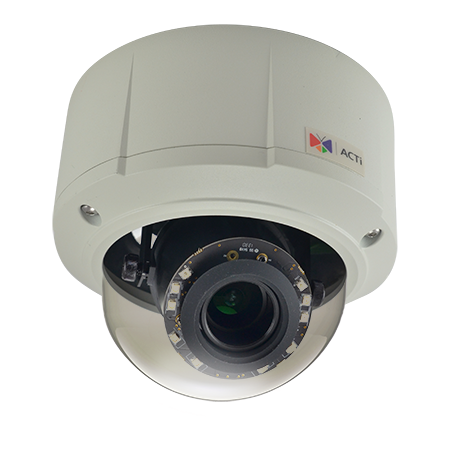

ACTi E89 Features
- Max Resolution: 3648 x 2736
- Image Sensor: 1/2.3" Progressive Scan CMOS
- Day/Night: Yes
- Mechanical IR Cut Filter: Yes
- Minimum Illumination: Color: 0.1 lux at F1.4 (30 IRE, 2400°K); B/W: 0 lux (IR LED on)
- IR Illuminators: IR LED x 15 (850nm)
- IR Illuminator Range: 15 m (0 lux, 30 IRE, Gain 255, Auto shutter mode)
- Lens Type: Vari-focal Board Mount
- Focal Length: f3.1-13mm/F1.4
- Zoom: N/A
- Iris: Fixed
- Focus: Manual
- Field of View: Horizontal: 25.8 - 100.5°; Pan: 0° - 350°; Tilt: 17° - 163°; Rotate: 0° - 350°
- Compression Styles: H.264 HP, MJPEG
- Frame Rate: 6 fps at 3648 x 2736; 6 fps at 3648 x 2160; 6 fps at 2592 x 1944; 6 fps at 2048 x 1536; 30 fps at 1920 x 1080; 30 fps at 1280 x 720; 30 fps at 640 x 480; 15 fps at 320 x 240
- WDR Technology: Basic WDR (65.2 dB)
- Image Settings: White balance: automatic, hold, and manual; Brightness; Contrast; Sharpness (auto); Auto gain control; Digital noise reduction; Flickerless; User defined text overlay on video; Image flip and mirror
- Privacy Mask: 4 configurable regions
- Built-in Microphone: No
- Audio Capabilities: Audio-in and Audio-out with terminal blocks
- Alarm/Event Management: Video motion detection (3 regions); External device through digital input; Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video, snapshot to FTP; Active external device through digital output
- ONVIF: Yes
- Security: IP address filtering; HTTPS encryption; Password protected user levels; Anonymous login; IEEE 802.1X network access control
- Users: Software defined
- On-board Storage: MicroSDHC/MicroSDXC memory card slot (card not included)
- Indoor/Outdoor: Outdoor
- Housing/Enclosure Rating: Weather-proof (IP66 rated) and Vandal-proof (IK10 rated)
- Dimensions: (Ø x H) 152.8 mm x 128.5 mm (6.0'' x 5.1'')
- Weight: 1.785 kg (3.935 lb)
- Operating Temperature: -40 °C ~ 50 °C (-40 °F ~ 122 °F)
- Operating Humidity: 10% ~ 85% RH
- Power: PoE Class 2 (IEEE802.3af) / 5.28 W (IR on)
- Warranty: 3 Years
