Discontinued - Recommended Replacement: E93, Z94

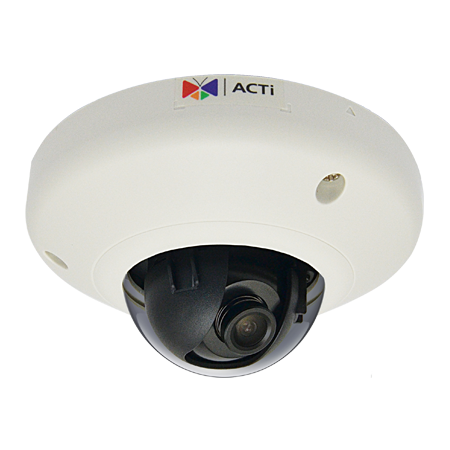

ACTi E91 Features:
- Resolution: 2592 x 1944
- Image Sensor: Progressive Scan CMOS
- Sensor Size: F1.8
- Day/Night: No
- Mechanical IR Cut Filter: Yes
- Minimum Illumination: Color: 0.1 lux at F2.0 (30 IRE, 2400°K)
- IR Illuminators: IR LED x 16 (850nm)
- IR Illuminator Range: 15 m (0 lux, 30 IRE, Max exposure gain)
- Lens Type: Fixed
- Focal Length: f2.93 mm
- Zoom: N/A
- Iris: Fixed
- Focus: Fixed
- Field of View: Horizontal:72° Pan: ±90°; Tilt: 0°- 90°
- Compression Styles: H.264 HP, MJPEG
- Frame Rate: 15fps at 2592x1944; 15 fps at 2048x1536;30 fps at 1920 x 1080 (Full HD 1080p); 30 fps at 1280 x 720 (HD 720p); 30 fps at 640 x 480 (VGA)
- Image Settings: Basic WDR; White balance: automatic, hold, and manual; Brightness; Contrast; Auto gain control; Digital noise reduction; Flickerless
- Privacy Mask: 4 configurable regions; Image flip and mirror
- Built-in Microphone: No
- Audio Capabilities: N/A
- Alarm/Event Management: Video Motion Detection (3 regions), notify control Center.
- ONVIF: Yes
- Security: IP address filtering; HTTPS encryption; Password protected user levels; IEEE 802.1X network access control
- Users: N/A
- On-board Storage: Yes
- Indoor/Outdoor: Indoor
- Housing/Enclosure Rating: N/A
- Dimensions: 110 mm x 58 mm (4.3" x 2.3")
- Weight: 201 g (0.443 lb)
- Operating Temperature: -10°C ~ 40°C (14°F ~ 104°F)
- Operating Humidity: 10% ~ 85% RH
- Power: PoE Class 1 (IEEE802.3af) / 2.43W
- Warranty: Two Years
