ACTi E923M

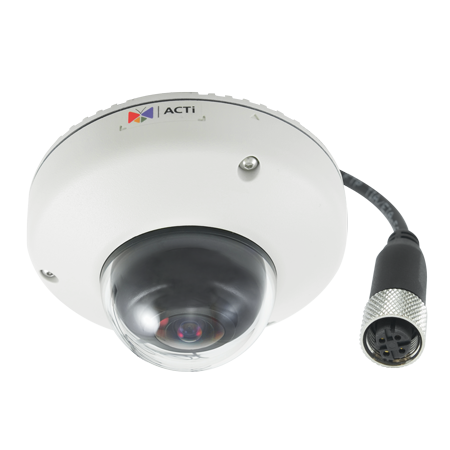

ACTi E923M 10 Megapixel Outdoor Mini Fisheye Dome Network Camera

ACTi

ACTi E923M 10 Megapixel Outdoor Mini Fisheye Dome Network Camera

$500.00
Discontinued
SKU: E923M
Link to Manufacturer's Page

Contact

ACTi E923M Features

  • Max Resolution: 3648 x 2736
  • Image Sensor: 1/3.2" Progressive Scan CMOS
  • Day/Night: No
  • Mechanical IR Cut Filter: No
  • Minimum Illumination: Color: 0.1 lux at F2.0 (30 IRE, 2400°K)
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: Fixed Fisheye Board Mount
  • Focal Length: f1.37 mm / F2.0
  • Zoom: ePTZ
  • Iris: Fixed
  • Focus: Fixed
  • Field of View: 180° (overview area), 109.8° (high detail area)
  • Compression Styles: H.264 HP, MJPEG
  • Frame Rate: 6 fps at 3648 x 2736; 6 fps at 2592 x 1944; 7 fps at 2048 x 1536; 6 fps at 1440 x 1080; 6 fps 1280 x 960; 6 fps at 640 x 480; 6 fps at 320 x 240
  • WDR Technology: Basic WDR (70 dB)
  • Image Settings: White balance: automatic, hold, and manual; Brightness; Contrast; Sharpness (auto); Auto gain control; Digital noise reduction; Flickerless; Image flip and mirror; User defined text on video
  • Privacy Mask: Yes, 4 configurable regions
  • Built-in Microphone: No
  • Audio Capabilities: Audio Input via Mic-in and line-in, cable with 3.5 mm phone jack
  • Alarm/Event Management: Video motion detection (3 regions); Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video, snapshot to FTP
  • ONVIF: Yes
  • Security: IP address filtering; HTTPS encryption; Password protected user levels; Anonymous login; IEEE 802.1X network access control
  • On-board Storage: Yes, MicroSDHC/MicroSDXC memory card slot (card not included)
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: Weatherproof (IP68 rated); Vandal proof (IK10 rated); Vibration proof (EN 50155-ready without certificate); Transparent dome cover
  • Dimensions: 110 mm x 60 mm (4.3" x 2.4")
  • Weight: 497 g (1.095 lb)
  • Operating Temperature: -20°C ~ 50°C (-4°F ~ 122°F)
  • Operating Humidity: 10% ~ 85% RH
  • Power/Consumption: PoE Class 1 (IEEE802.3af) / 3.84W
  • What's Included: Camera, screw kit, drill template, hexagon screwdriver, cable gland, quick installation guide, warranty card
  • Please note: Comes with an M12 ethernet connector for industrial applications instead of an RJ-45 connector.
