ACTi E926M
ACTi E926M 10MP Outdoor Mini Dome Network Camera

ACTi

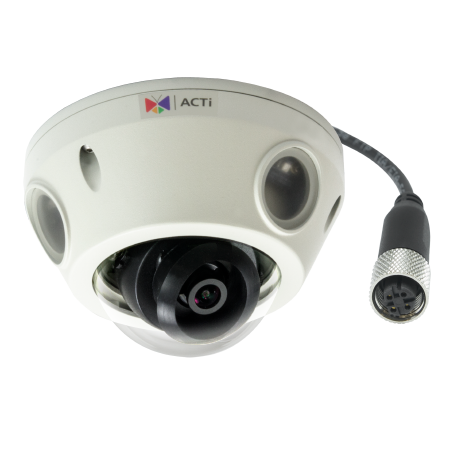

ACTi E926M 10MP Outdoor Mini Dome Network Camera

$515.00
Discontinued
SKU: E926M
Link to Manufacturer's Page

Contact

ACTi E926M Features:

  • Please note: Comes with an M12 ethernet connector for industrial applications instead of an RJ-45 connector.
  • Max Resolution: 3648 x 2736
  • Image Sensor: 1/2.3" Progressive Scan CMOS
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes
  • Minimum Illumination: Color: 0.1 lux at F1.8 (30 IRE, 2400°K); B/W: 0 lux at F1.8
  • IR Illuminators: Yes, with Adaptive IR
  • IR Illuminator Range: 15m
  • Lens Type: Fixed Board Mount
  • Focal Length: f3.6mm / F1.8
  • Zoom: No
  • Iris: Fixed
  • Focus: Fixed
  • Field of View: Horizontal: 101.4°
  • Compression Styles: H.264 (Baseline/ Main/ High profile), MJPEG
  • Frame Rate: 7 fps at 3648 x 2736; 7 fps at 3648 x 2160; 7 fps at 2592 x 1944; 7 fps at 2048 x 1536; 30 fps at 1920 x 1080; 30 fps at 1280 x 720; 30 fps at 800 x 600; 30 fps at 640 x 480; 15 fps at 320 x 240
  • WDR Technology: Basic WDR (70 dB)
  • Image Settings: White balance: automatic, hold and manual; Brightness; Contrast; Sharpness (auto); Auto gain control; 2D+3D digital noise reduction; Flickerless; User defined text on video; Image flip and mirror
  • Privacy Mask: 4 configurable regions
  • Built-in Microphone: No
  • Audio Capabilities: One-way via Line-in and mic-in, cable with 3.5mm phone jack
  • Alarm/Event Management: Video motion detection (3 regions); Sound detection; Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video or Snapshot to FTP
  • ONVIF: Yes
  • Security: IP address filtering; HTTPS encryption; Password protected user levels; Anonymous login; IEEE 802.1X network access control
  • Users: Software defined
  • On-board Storage: MicroSDHC/MicroSDXC memory card slot (card not included)
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: Weatherproof (IP68); Vandal proof (IK10); Vibration proof (EN50155)
  • Dimensions: 115 mm x 70 mm (4.5" x 2.8")
  • Weight: 475 g (1.05 lb)
  • Operating Temperature: -20°C ~ 50°C (-4°F ~ 122°F)
  • Operating Humidity: 10% - 85% RH
  • Power: PoE Class 2 (IEEE802.3af) / 5.04 W
  • Warranty: 3 Years
  • What's Included: Camera, hexagon screwdriver, screw kit, drill template, cosmetic covers (for unused IR LEDs), cable gland, quick install guide, warranty card
