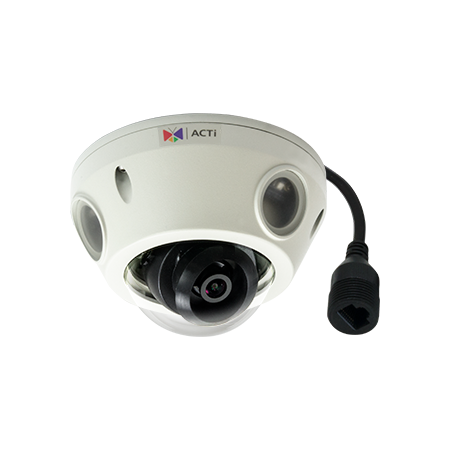

ACTi E933 Features
- Image Sensor 1/2.8" Progressive Scan CMOS
- Effective Pixels: 1944(H) X 1224(V) (2.38 MP)
- Day / Night: Yes
- Low Light Sensitvity: Superior
- Minimum Illumination: Color: 0.1 lux at F2.2 (30 IRE, 2400°K); B/W: 0 lux at F2.0
- Mechanical IR Cut Filter: Yes
- IR LED: Adaptive IR LED x 3 (850 nm)
- IR Working Distance: 15 m (0 lux, 30 IRE, Gain 255, Manual shutter mode)
- Focal Length / Aperture: Fixed focal, f2.55mm / F2.2
- Iris: Fixed iris
- Focus: Fixed focus
- Lens Mount: Board mount
- Horizontal Viewing Angle: 112.7°
- Compression: H.264 (Baseline / Main / High profile), MJPEG
- Max. Resolution vs. Frame Rate: 60 fps at 1920 x 1080; 60 fps at 1280 x 720; 30 fps at 640 x 480; 30 fps at 320 x 240
- Image Enhancement: Extreme WDR (145 dB); White balance: automatic, hold and manual; Brightness; Contrast; Sharpness;Automatic gain control; 2D+3D digital noise reduction; Flickerless; **Defogging, Privacy Mask 4 configurable regions; User defined text on video; Image flip and mirror
- Built-in Analytics: Motion Detection, Tamper, Digital Image Stabilizer, **Line Crossing, **Enter Area, **Exit Area, **Appear in Area, **Missing Object, **Unattended Object (**Will be available in the future)
- Audio Input: Line-in and mic-in, cable with 3.5mm phone jack
- Security: IP address filtering; HTTPS encryption; Password protected user levels; Anonymous login; IEEE 802.1X network access control
- Alarm Trigger: Video motion detection (3 regions); Sound detection
- Alarm Response: Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video or Snapshot to FTP
- Local Storage: MicroSDHC memory card slot (card not included)
- Power Source / Consumption: PoE Class 2 (IEEE802.3af) / 6.49 W
- Weight: 474 g (1.04 lb)
- Dimensions (Ø x H): 115 mm x 70 mm (4.5" x 2.8")
- Environmental Casing: Weatherproof (IP68 rated); Vandal proof (IK10 rated); Vibration Proof (EN50155); Transparent dome cover
- Operating Temperature: -20°C ~ 50°C (-4°F ~ 122°F)
