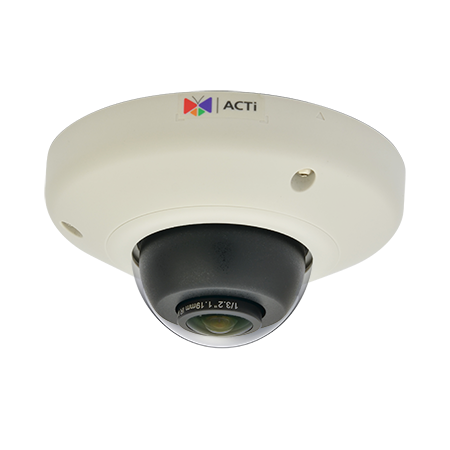

ACTi E98 Features
- Max Resolution: 3648 x 2736
- Image Sensor: 1/2.3" Progressive Scan CMOS
- Day/Night: No
- Mechanical IR Cut Filter: No
- Minimum Illumination: Color: 0.1 lux at F2.0 (30 IRE, 2400°K)
- IR Illuminators: No
- IR Illuminator Range: N/A
- Lens Type: Fixed Board Mount
- Focal Length: f1.37mm / F2.0
- Zoom: No
- Iris: Fixed
- Focus: Fixed
- Field of View: 180° (overview area), 109.8° (high detail area)
- Compression Styles: H.264 HP, MJPEG
- WDR Technology: Basic WDR (70 dB)
- Frame Rate: 7 fps at 3648 x 2736; 7 fps at 3648 x 2160; 7 fps at 2592 x 1944; 7 fps at 2048 x 1536; 6 fps at 1920 x 1440; 30 fps at 1920 x 1080; 6 fps at 1280 x 960; 30 fps 1280 x 720; 30 fps at 640 x 480; 15 fps at 320 x 240
- Image Settings: White balance: automatic, hold, and manual; Brightness; Contrast; Sharpness(auto); Auto gain control; Digital noise reduction; Flickerless; User defined text on video; Image flip and mirror
- Privacy Mask: Yes, 4 configurable regions
- Built-in Microphone: No
- Audio Capabilities: None
- Alarm/Event Management: Video motion detection (3 regions); Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video, Snapshot to FTP; Activate external device through digital output
- ONVIF: Yes
- Security: IP address filtering; HTTPS encryption; Password protected user levels; Anonymous login; IEEE 802.1X network access control
- On-board Storage: Yes, MicroSDHC memory card slot (card not included)
- Indoor/Outdoor: Indoor
- Housing/Enclosure Rating: Vandal Resistant (IK08); Transparent dome cover
- Dimensions: 110 mm x 58 mm (4.3" x 2.3")
- Weight: 242 g (0.533 Ib)
- Operating Temperature: -10°C ~ 45°C (14°F ~ 113°F)
- Operating Humidity: 10% ~ 85% RH
- Power/Consumption: PoE Class 1 (IEEE802.3af) / 3.84 W
- What's Included: Camera, screw kit, drill template, hexagon screwdriver, lens focus tuner, quick instaaltion guide, warranty card
