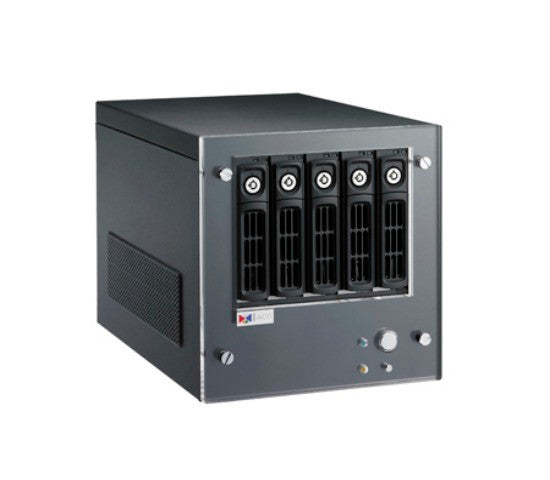

ACTi GNR-3000 64-Channel 5-Bay NVR
ACTi GNR-3000 64-Channel 5-Bay NVR

ACTi

ACTi GNR-3000 64-Channel 5-Bay NVR

$2,156.00
Discontinued
SKU: GNR-3000
Link to Manufacturer's Page

Contact

ACTI GNR-3000 NVR Features

  • Camera Compatibility: Fully compatible with ACTi cameras, encoders and CMS2.0
  • Maximum Number of Cameras/Channels: 64 (32 included with unit)
  • Throughput: 384 Mbps
  • Compression Styles: H.264, MPEG-4, MJPEG
  • Video Export Formats: Export video clips in AVI or RAW format; text overlay supported
  • Display Layout: 4:3 monitor: 1, 4, 5, 6, 8, 9, 10, 16, 25, 36, 49, 64, 16:9 wide screen monitor: 1, 4, 6, 9, 12, 18, 24, 35, 48, 64
  • Event Notification: Record video; Pop-up window with live video; Switch to hotspot window; Play beep sound; Activate external device through digital output; Upload snapshot to FTP server; Execute system command to activate other programs; E-mail notification with snapshots; Command a PTZ device to go to a preset point
  • Alarm Triggers: Video motion detection; Passive IR sensor; External device through digital input; Video loss and recovery; Network loss and recovery; Server loss and recovery; Disk full; Disk not found
  • Scheduled Recording: Yes, Video loss and recovery; Network loss and recovery; Server loss and recovery; Disk full; Disk not found
  • Event Recording: Yes, Record video when the alarm event is triggered, including the pre-event buffered video clip
  • Manual Recording: Yes, Different recording frame rate settings for non-event and triggered event
  • Recording Frame Rate: Max 1920 fps total; Max 30 fps per camera
  • Remote Access with PC Based Web Browser: Yes, Microsoft Internet Explorer 8.0 or 9.0 with live view, PTZ, playback, event management, setup
  • Mobile APP Support: Mobile device application (MobileGo) supports live view, PTZ control, event or time based search and playbackSupported devices: iPhone, iPad, iPod Touch
  • PTZ Controls: Yes, Pan, tilt and zoom controls; speed control; both buttons and mouse controls
  • Playback Features: Search video recordings by time or channel, Search alarm triggered video recordings, Continuous forward and backward playback with speeds 1x/2x/4x/8x or frame-by-frame; pause; stop, Up to 9 channels for local display; up to 64 channels for remote client, Instant snapshot from playback upon mouse click
  • Hard Drive Bays: Maximum 5 disks (1 system disk included to run embedded software)
  • Max TB per HD Bay: 3 TB
  • USB Ports: 4 x USB 2.0 Ports
  • Ethernet Ports: 2, Ethernet (1000 Base-T), RJ-45 connector
  • Display Port(s): 1 x VGA
  • Dimensions (W x H x D): 200 mm x 215 mm x 313.5 mm ( 7.9" x 8" x 12")
  • Weight: 3.88 kg (8.55 lb) without HDD
  • Operating Temperature: 0°C~ 40°C (32°F ~ 104°F)
  • Operating Humidity: 10% ~ 85% RH
  • Power Source / Consumption: 110V~220V AC 50/60Hz /200W
  • Warranty: 3 Year
