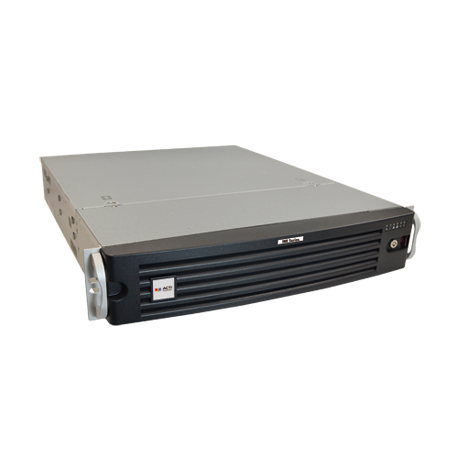

ACTi GNR-320 64-Channel 8-Bay Rackmount NVR

ACTI GNR-320 Features

• Maximum Number of Cameras: 64
• Free License: 32 Channels
• Compression: H.264, MPEG-4, MJPEG
• Maximum local display resolution: 1920 x1200
• Recording Throughput: Maximum total bitrate 300 Mbps
• Scheduled Recording: Record video with user defined schedule
• Event Recording: Record video when the alarm event is triggered, including the pre-event buffered video clip
• Manual Recording: Instant recording upon mouse click
• Recording Frame Rate: Max 1920 fps total; Max 30 fps per camera
• HDD Bay: 8
• RAID Level: Software RAID 0, 1
• Time Based Video Search: Search video recordings by time or channel
• Event Based Video Search: Search alarm triggered video recordings
• Playback Control: Continuous forward and backward playback with speeds 1x/2x/4x/8x or frame-by-frame; pause; stop
• Synchronized Playback: Up to 9 channels for local display; Up to 64 channels for remote client
• Manual Snapshot: Instant snapshot from playback upon mouse click
• Digital Zoom: Zoom in/out digitally by PiP (Picture-in-Picture)
• Video Croppin:g Crop a short video clip from long recording file and save it as an independent file
• Video Export: Export video clips in AVI or RAW format; Text overlay supported
• Event Trigger: Video motion detection; Passive IR sensor; External device through digital input; Video loss and recovery; Network loss and recovery; Server loss and recovery; Disk full; Disk not found
• Event Response: Record video; Pop-up window with live video; Switch to hotspot window; Play beep sound; Activate external device through digital output; Upload snapshot to FTP server; Execute system command to activate other programs; E-mail notification with snapshots; Command a PTZ device to go to a preset point
• Manual Event: Manually activate external devices through digital output via live view monitor
• Scheduler: Define the schedule of event manager
• Mobile Client: Program Mobile device application (Active Mobile Client) supports live view, PTZ control, event or time based search and playback
• Supported devices: iPhone, iPad, iTouch and Android device
• Dimensions (W x H x D: 482 mm x 88 mm x 560 mm (19” x 3.5” x 22.1”)
• Weight: 11.4 kg (with HDD*1 & front bezel)
• Operating Temperature: 0°C~ 40°C (32°F ~ 104°F)
• Operating Humidity: 10% ~ 85% RH
• Power Source / Consumption: 110V~220V AC, 50~60Hz / 200 W
