Discontinued - Recommended Replacement: B26, I27

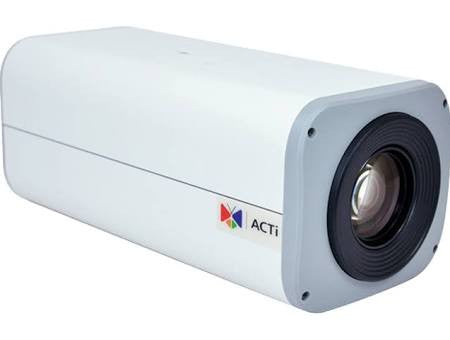

ACTi I28 Features
- Image Sensor: 1/2.8" Progressive Scan CMOS
- Effective Pixels: 1944 (H) x 1224 (V) (2.38 MP)
- Day / Night: Yes
- Low Light Sensitivity: Superior
- Minimum Illumination: Color: 0.1 lux at F1.6 (30 IRE, 2400°K); B/W: 0.05 lux at F1.6 (30 IRE, 2400°K)
- Mechanical IR Cut Filter: Yes
- IR Sensitivity Range 700 - 1100 nm
- IR LED: No
- Focal Length / Aperture: Zoom, f4.5 - 148.5mm / F1.6 - 5.0
- Zoom Ratio: 33x optical
- Zoom Speed: 2.7 sec (wide to tele)
- Iris: DC iris
- Focus: Auto focus
- Lens Mount: Board mount
- Horizontal Viewing Angle: 61.7° ~ 2.07°
- Compression: H.264 (Baseline / Main / High profile), MJPEG
- Max. Frame Rate vs. Resolution: 60 fps at 1920 x 1080; 60 fps at 1280 x 720; 30 fps at 640 x 480; 15 fps at 320 x 240
- Image Enhancement: Extreme WDR (145 dB); White balance: automatic, hold, and manual; Brightness; Contrast; Sharpness (auto); Auto gain control; 2D+3D digital noise reduction; Flickerless; Defogging; Digital image stabilizer; Privacy Mask 20 configurable regions; User defined text on video; Image flip and mirror, Rotation (0°, 90°)
- Audio-In: Terminal block
- Audio-Out: Terminal block
- Security: IP address filtering; HTTPS encryption; Password protected user levels; Anonymous login; IEEE 802.1X network access control
- Alarm Trigger: Video motion detection (3 regions); External device through digital input; Sound detection
- Alarm Response: Notify control center; Go to PTZ preset point or preset tour; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video or snapshot to FTP server; Activate external device through digital output
- Local Storage: MicroSDHC/MicroSDXC memory card slot (card not included)
- Power Source / Consumption: PoE Class 3 (IEEE802.3af) / 10.2 W; DC 12V (adapter not included) / 8.7 W
- Weight: 743 g (1.638 Ib)
- Dimensions (W x H x D): 81 mm x 71 mm x 176 mm (3.2" x 2.8" x 6.9")
- Operating Temperature: -10°C ~ 50°C (14°F ~ 122°F)
