ACTi I48

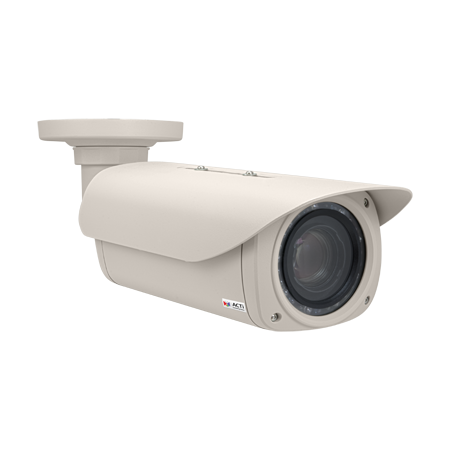

ACTi I48 2MP 33x Zoom Bullet Network Camera

ACTi

ACTi I48 2MP 33x Zoom Bullet Network Camera

$1,162.11
Discontinued
SKU: I48
Link to Manufacturer's Page

Contact

Discontinued - Recommended Replacement: I42

ACTi I48 Features:

  • Image Sensor: 1/2.8" Progressive Scan CMOS
  • Effective Pixels: 1944 (H) x 1224 (V) (2.38 MP)
  • Day / Night: Yes
  • Low Light Sensitivity: Superior
  • Minimum Illumination: Color: 0.1 lux at F1.6 (30 IRE, 2400°K); B/W: 0 lux (IR LED on)
  • Mechanical IR Cut Filter: Yes
  • IR LED: Adaptive IR LED x 27 (850 nm)
  • IR Working Distance: 40 m (0 lux, 30 IRE, Gain 255, Auto shutter mode)
  • Focal Length / Aperture: Zoom, f4.5 - 148.5 mm / F1.6 - 5.0
  • Zoom Ratio / Speed: 33x optical; 3 sec (wide to tele)
  • Iris: DC iris
  • Focus: Auto focus
  • Mount Type: Board mount
  • Horizontal Viewing Angle: 69.3° ~ 3°
  • Compression: H.264 (Baseline/ Main/ High profile), MJPEG
  • Max. Frame Rate vs. Resolution: 60 fps at 1920 x 1080; 60 fps at 1280 x 720; 30 fps at 640 x 480; 30 fps at 320 x 240
  • Image Enhancement: Extreme WDR (145 dB); White balance: automatic, hold, and manual; Brightness; Contrast; **Defogging; Sharpness (auto); Auto gain control; 2D+3D digital noise reduction; Flickerless; Defogging; Digital image stabilizer; Privacy Mask 20 configurable regions; User defined text on video; Image flip and mirror
  • Built-in Analytics: Object Based Motion Detection, Tamper, Shock Detection, **Line Crossing, **Enter Area, **Missing Object, **Unattended Object (**Will be available in the future)
  • Audio-In: Terminal block
  • Audio-Out: Terminal block
  • Security: IP address filtering; HTTPs encryption; Password protected user levels; Anonymous login; IEEE802.1X network access control
  • Alarm Trigger: Video motion detection (3 regions); External device through digital input; Sound detection
  • Alarm Response: Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video or snapshot to FTP server; Activate external device through digital output
  • Local Storage: **MicroSDHC card slot (card not included)
  • Power Source / Consumption: PoE Class 3 (IEEE802.3af) / 12.6W; DC 12V (adapter not included) / 10.3W
  • Weight: 2.18 kg (4.81 lb)
  • Dimensions (W x H x D): 122 mm x 124 mm x 363 mm (4.82” x 4.89” x 14.28”)
  • Environmental Casing: Weatherproof (IP67 rated); Vandal proof metal casing (IK10)
  • Operating Temperature: -40°C ~ 50°C (-40°F ~ 122°F)
