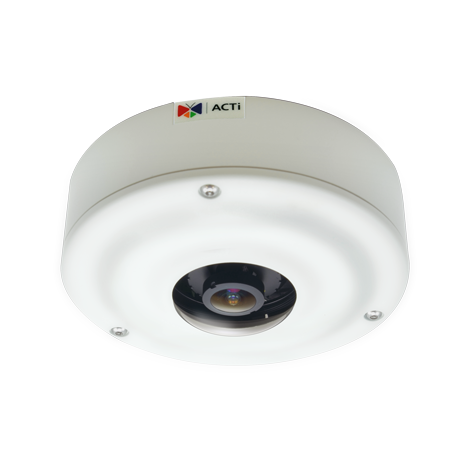

ACTi I71 5 Megapixel Hemispheric Outdoor Network Camera
ACTi I71 Features
- Max Resolution: 2592x1944
- Image Sensor: 1/2.5" Progressive Scan CMOS
- Day/Night: Yes with Superior Low Light Sensitivity
- Mechanical IR Cut Filter: Yes
- Minimum Illumination: Color: 0.1 lux at F2.8 (30 IRE, 2400°K); B/W: 0.05 lux at F2.8 (30 IRE, 2400°K)
- IR Illuminators: No
- IR Illuminator Range: N/A
- Lens Type: Fisheye board mount
- Focal Length: 1.05 mm / F2.8
- Iris: Fixed
- Zoom: ePTZ
- Focus: Fixed
- Field of View: 180° Horizontal
- Compression Styles: H.264 HP & MJPEG
- Frame Rate: 12 fps at 2592 x 1944; 12 fps at 2048 x 1536; 12 fps at 1920 x 1080; 12 fps at 1280 x 720; 12 fps at 640 x 480; 12 fps at 320 x 240
- WDR Technology: Advanced WDR (87 dB)
- Image Settings: White balance: automatic, hold and manual; Brightness; Contrast; Sharpness; Automatic gain control; 2D+3D digital noise reduction; Flickerless; User defined text overlay on video; Image flip and mirror
- Privacy Mask: 4 configurable regions
- Built-in Microphone: No
- Audio Capabilities: Audio in / Audio out terminal blocks
- Alarm/Event Management: Video motion detection (3 regions); External device through digital input; Notify control center; Go to ePTZ preset point or preset tour; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video, snapshot to FTP server; Activate external device through digital output
- ONVIF: Yes
- Security: IP address filtering; HTTPS encryption; Password protected user levels; IEEE 802.1X network access control; Anonymous Login
- Users: Software defined
- On-board Storage: MicroSDHC/MicroSDXC memory card slot (card not included)
- Indoor/Outdoor: Outdoor
- Housing/Enclosure Rating: IP66 weatherproof & IK10 vandal proof
- Dimensions: (Ø x H) 152mm X 66mm (6" X 2.6")
- Weight: 909 g (2.0 lb)
- Operating Temperature: -40 °C - 50°C (-40°F - 122°F)
- Operating Humidity: 10% ~ 85% RH
-
Power/Power Consumption: PoE Class 3 (IEEE 802.3af) / 7.06 W; DC 12V (adapter not included) / 6.12 W
- Warranty: 3 years
- What's Included: Camera, cable gland, conduit gland, hexagon screwdriver, screws & screw plugs, terminal block (for power), terminal block (for DI/DO), terminal block (for audio in/out), warranty card, quick install guide, drill template
