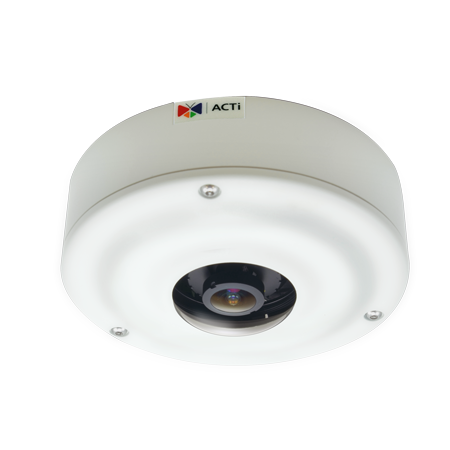

ACTi I73 6 Megapixel Hemispheric Outdoor Network Camera

ACTi

ACTi I73 6 Megapixel Hemispheric Outdoor Network Camera

$955.00
Discontinued
SKU: I73
Link to Manufacturer's Page

Contact

ACTi I73 Features

  • Max Resolution: 3096 x 2080
  • Image Sensor: Progressive Scan CMOS 1/1.8"
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes
  • Minimum Illumination: Color: 0.1 lux at F2.6 (30 IRE, 2400°K); B/W: 0.05 lux at F2.6 (30 IRE, 2400°K)
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: Fisheye board mount
  • Focal Length: 1.3mm / F2.6
  • Iris: Fixed
  • Zoom: N/A
  • Focus: Fixed
  • Field of View: 203.5° (Overview Area), 124.2° (High Detail Area)
  • Compression Styles: H.264 HP & MJPEG
  • Frame Rate: Fisheye view mode: 10 fps at 3072 x 2048; 10 fps at 2592 x 1944; 10 fps at 2048 x 1536; 10 fps at 1440 x 1080; 10 fps at 1280 x 960; 10 fps at 800 x 600; 10 fps at 640 x 480 Dewarped view mode: 12 fps at 2592 x 1944; 12 fps at 2048 x 1536; 12 fps at 1920 x 1080; 12 fps at 1280 x 720; 12 fps at 640 x 480; 12 fps at 320 x 240
  • WDR Technology: Advanced WDR (80 dB)
  • Image Settings: White balance: automatic, hold and manual; Brightness; Contrast; Sharpness (auto); Automatic gain control; 2D+3D digital noise reduction; Flickerless; Defogging; User defined text on video; Image flip and mirror
  • Privacy Mask: 4 configurable regions
  • Built-in Microphone: No
  • Audio Capabilities: N/A
  • Alarm/Event Management: Video motion detection (3 regions); External device through digital input; Sound detection, Notify control center; Go to ePTZ preset point or preset tour; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video or snapshot to FTP server; Activate external device through digital output
  • ONVIF: Yes
  • Security: IP address filtering; HTTPs encryption; Password protected user levels; Anonymous login; IEEE802.1X network access control
  • Users: Software defined
  • On-board Storage: MicroSDHC/MicroSDXC memory card slot (card not included)
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: IP66 weatherproof & IK10 vandal proof
  • Dimensions: 152 mm X 66 mm (6" X 2.6")
  • Weight: 894 g (1.97 lb)
  • Operating Temperature: -40 °C - 50°C (-40°F - 122°F)
  • Operating Humidity: 10% ~ 85% RH
  • Power: PoE Class 3 (IEEE802.3af)
  • Warranty: 3 years
  • What's Included: Camera, cable gland, conduit gland, hexagon screwdriver, screw plugs & screws, 3 terminal blocks (power, DI/DO, Audio In/Out), warranty card, quick install guide, drill template
