ACTi

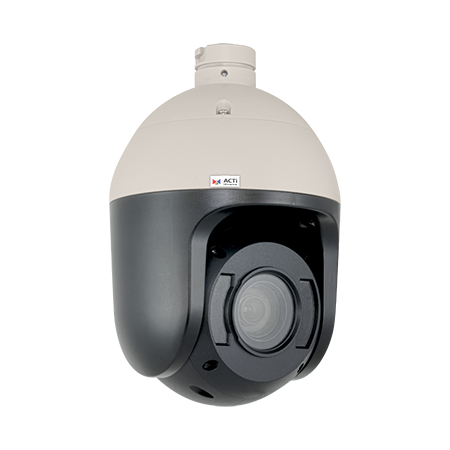

ACTi I98 2MP 33x Zoom IR Speed Dome Network Camera
Quantity:
ACTi I98 Features
- Image Sensor: 1/2.8" Progressive Scan CMOS
- Effective Pixels: 1944 (H) x 1224 (V) (2.38 MP)
- Day / Night: Yes
- Low Light Sensitivity: Superior
- Minimum Illumination: Color: 0.1 lux at F1.6 (30 IRE, 2400°K); B/W: 0 lux at F1.6 (IR LED On)
- Mechanical IR Cut Filter: Yes
- IR LED: Adaptive IR LED x 8 (850nm)
- IR Working Distance: 160m (0 lux, 30 IRE, Gain 255, Auto shutter mode)
- Focal Length: Zoom, f4.5 - 148.5mm / F1.6 - 5.0
- Zoom Ratio / Speed: 33x optical, 10x digital / 2.7 sec (tele to wide)
- Iris: DC iris
- Focus: Auto focus
- Horizontal Viewing Angle: 69.3° - 3°
- Panning Range: 360° Endless
- Tilting Range: -20° ~ 200°
- Control: Remote manual control; 256 preset points; 10 preset tours; Auto scan
- Compression: H.264 (Baseline / Main / High profile), MJPEG
- Max. Frame Rate vs. Resolution: 60 fps at 1920 x 1080; 60 fps at 1280 x 720; 30 fps at 640 x 480; 15 fps at 320 x 240
- Image Enhancement Extreme WDR (145 dB); White balance: automatic, hold and manual; Brightness; Contrast; Sharpness; Automatic gain control; 2D+3D digital noise reduction; Flickerless; **Defogging; Privacy Mask 20 configurable regions; User defined text on video; Image flip and mirror
- Built-in Analytics Motion Detection, Tamper, Shock Detection, PTZ Auto Tracking, Digital Image Stabilizer, **Line Crossing, **Enter Area, **Exit Area, **Appear in Area, **Missing Object, **Unattended Object (**Will be available in the future)
- Compression: 8 kHz, Mono, PCM, 16 bit encoding; G.711
- Audio-In / Audio-Out: Cable with 3.5mm phone jack
- Security: IP address filtering; HTTPS encryption; Password protected user level; Anonymous login; IEEE 802.1X network access control
- Alarm Trigger: Video motion detection (10 regions); External device through digital input; Sound detection
- Alarm Response: Notify control center; Go to PTZ preset point or preset tour; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video or snapshot to FTP server; Activate external device through digital output
- Local Storage: **MicroSDHC memory card slot (card not included)
- Power Source: High PoE (IEEE802.3at) 50W / AC 24V 62W (With heater controlled by thermostat)
- Weight: 3112 g (6.86 lb)
- Dimensions (Φ x H): 170 mm x 260 mm (6.69" x 10.23")
- Environmental Casing: Weatherproof (IP66); Vandal proof metal casing (IK10); Scratch-resistant and water-repellent lens glass
- Operating Temperature: -40°C ~ 55°C (-40°F ~ 131°F )
