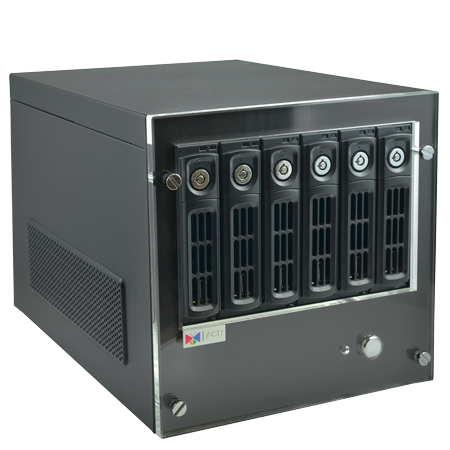

ACTi INR-340 64-Channel 6-Bay NVR

Name: ACTi INR-340 64-Channel 6-Bay NVR
Brand: ACTi
SKU: INR-340
Price: 3836.0 USD
Availability: OutOfStock

$3,836.00 $4,795.00

Discontinued

SKU: INR-340

• General

• Live View

Display Layout Mode: Local: 1, 4, 5, 6, 8, 9, 10, 12, 16
Remote: 1, 4, 5, 6, 8, 9, 10, 12, 16, 18, 24, 25, 35, 36, 48, 49, 64
Local Live View: Performance Please check “Standalone NVR Performance Validator” (http://www.acti.com/SANVRPerformance)
View Manager: An interface to define display layouts and the pre-set cameras within layout in the public or private view
View Patrol: Automatic switch between different views or devices
View Panel: Contains the list of pre-defined views for quick launch
Digital Zoom: Zoom in/out digitally by PiP (Picture-in-Picture)
Camera Tree Drag and drop video source from camera tree into display layout; display camera status on the tree
Manual Recording / Snapshot Instant recording upon mouse click / Instant snapshot upon mouse click or hot key
Event Panel: Display event status upon alarm or upon connection loss or recovery
Two-Way Audio: Audio sound from and to all the audio supported devices; audio broadcast to multiple devices at the same time
Dual Stream Management: Live view of stream 1 or stream 2 of dual stream devices
Instant Playback: Instant playback in live view window

• e-Map

• PTZ

Control Pan, tilt and zoom controls; speed control; both buttons and mouse controls
Preset Points and Tours: Create preset points; create auto tours between preset points
Number of Preset Points: 32
Joystick USB based joystick supported
Default Protoco:l Auto-detect camera's PTZ protocol. Available protocols: ACTi, Pelco-P, Pelco-D, Dynacolor, Visca

• Recording

Recording Throughput: Maximum total bitrate 300 Mbps
Scheduled Recording: Record video with user defined schedule
Event Recording: Record video when the alarm event is triggered, including the pre-event buffered video clip
Speed Up Different recording frame rate settings for non-event and triggered event
Manual Recording: Instant recording upon mouse click
Dual Stream Management Recording of stream 1 or stream 2 of dual stream devices
Recording Frame Rate: Max 1920 fps total; Max 30 fps per camera

• Storage

• Search & Playback

Time Based Video Search: Search video recordings by time or channel
Event Based Video Search: Search alarm triggered video recordings
Playback Control: Continuous forward and backward playback with speeds 1x/2x/4x/8x or frame-by-frame; pause; stop
Synchronized Playback: Up to 9 channels for local display; Up to 64 channels for remote client
Manual Snapshot: Instant snapshot from playback upon mouse click
Digital Zoom: Zoom in/out digitally by PiP (Picture-in-Picture)
Video Cropping: Crop a short video clip from long recording file and save it as an independent file
Video Export: Export video clips in AVI or RAW format; Text overlay supported

• Event Management

Event Trigger: Video motion detection; Passive IR sensor; External device through digital input; Video loss and recovery;
Network loss and recovery; Server loss and recovery; Disk full; Disk not found

Event Response

Record video; Pop-up window with live video; Switch to hotspot window; Play beep sound; Activate external device through digital output; Upload snapshot to FTP server; Execute system command to activate other programs; E-mail notification with snapshots; Command a PTZ device to go to a preset point
Manual Event: Manually activate external devices through digital output via live view monitor
Scheduler: Define the schedule of event manager

• System

Permission Control: Multi-group/users, liveview/playback/setup/remote level permission
Operating System: Win 7 Std. Embedded
Language: Multi-language support

• Remote Access

PC Client Program: User interface program (Workstation) with live view, PTZ, playback, e-Map, event management, setup
PC System Requirement: 1-16 channels: Intel Core 2 Quad 2.4GHz, 4GB RAM; 17-64 channels: Intel Core i7-920 2.67 GHz, 4GB RAM
PC Operating System: Windows 7, Windows 8, Windows 10, Windows Server 2008, Windows Server 2012
PC Web Browser: Internet Explorer 10, Internet Explorer 11
Mobile Client Program: Mobile device application (Active Mobile Client) supports live view, PTZ control, event or time based search and playback
Supported devices: iPhone, iPad, iTouch and Android device

• Network

Protocol & Service: IPv4, IPv6, TCP/IP, UDP, HTTP, DHCP, RTP, RTSP, DNS, NTP (SNTP), ICMP, ARP, SMTP, FTP, UPnP, LDAP, ONVIF
Ethernet Port 2, Gigabit Ethernet ports (1000 Base-T), RJ-45 connector

• Hardware
