ACTi INR-420

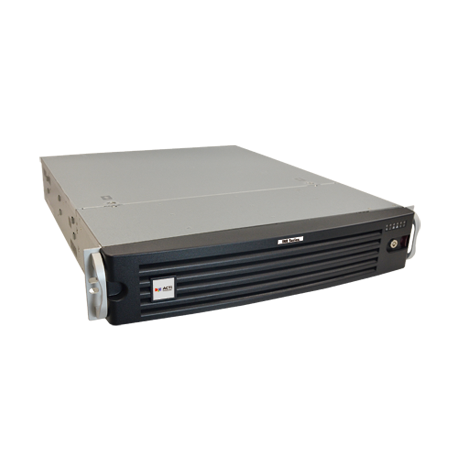

ACTi INR-420 Rackmount Standalone NVR

ACTi

ACTi INR-420 Rackmount Standalone NVR

$5,230.00
Discontinued
SKU: INR-420
Link to Manufacturer's Page

Contact

ACTi INR-420 Features

  • CPU: Intel Processor
  • Camera Compatibility: Fully compatible with ACTi cameras, encoders and CMS2.0; Non-ACTi camera support via licensed Camera Device Pack
  • Maximum Number of Cameras/Channels: 200 (64 included with unit)
  • Recording Throughput: Maximum total bitrate 300 Mbps
  • RAID Level: Hardware RAID 0, 1, 5, 10
  • Compression Styles: H.264 / MPEG4 / MJPEG
  • Video Export Formats: Export video clips in AVI or RAW format; text overlay supported
  • Display Layout: Local: 1, 4, 5, 6, 8, 9, 10, 12, 16; Remote: 1, 4, 5, 6, 8, 9, 10, 12, 16, 18, 24, 25, 35, 36, 48, 49, 64
  • Event Notification: Video motion detection; Passive IR sensor; External device through digital input; Video loss and recovery; Network loss and recovery; Server loss and recovery; Disk full; Disk not found
  • Alarm & Event Management: Record video; Pop-up window with live video; Switch to hotspot window; Play beep sound; Activate external device through digital output; Upload snapshot to FTP server; Execute system command to activate other programs; E-mail notification with snapshots; Command a PTZ device to go to a preset point
  • Scheduled Recording: Yes, Record video with user defined schedule
  • Event Recording: Yes, Record video when the alarm event is triggered, including the pre-event buffered video clip
  • Manual Recording: Yes, Instant recording upon mouse click
  • Recording Frame Rate: Max 6000 fps total; Max 30 fps per camera
  • Remote Access with PC Based Web Browser: Yes, Fully compatibility on iPhone, iTouch, iPad, & Android, and Internet Explorer® on Windows® operating system
  • Mobile App Support: Mobile device application (Active Mobile Client) supports live view, PTZ control, event or time based search and playback
  • PTZ Controls: PTZ controls, speed control, both buttons & mouse controls, create preset points, create auto tours between preset points
  • Playback Features: Search video recordings by time or channel, Search alarm triggered video recordings
  • Hard Drive Bays: 8 (1 bay is occupied by system HDD Seagate 500GB 3.5'' SATA HDD)
  • Max TB per HD Bay: N/A
  • USB Ports: USB 2.0, 8 ports (2 front ports, 6 rear ports)
  • Ethernet Ports: 2, Gigabit Ethernet ports (1000 Base-T), RJ-45 connector
  • Display Port(s): 2 HDMI, 1 VGA
  • Dimensions: 889 mm x 437 mm x 5334 mm (3.5” x 17.2” x 21”)
  • Weight: 11.42kg (with HDD*1 & front bezel)
  • Operating Temperature: 0°C~ 40°C (32°F ~ 104°F)
  • Operating Humidity: 10% ~ 85% RH
  • Power Source / Consumption: 110V~220V AC 50/60Hz / 85 W
  • Warranty: 3 Years
  • Please note: Pre-installed hard drive not included but can be purchased separately. Please contact us for more information.
