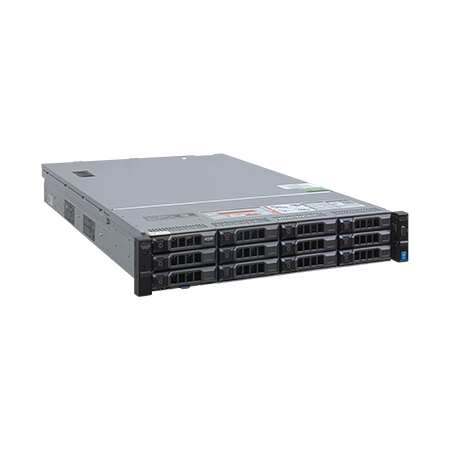

ACTi INR-450 200-Channel 12-Bay Rackmount NVR

ACTi INR-450 Features

• Maximum Number of Cameras: 200
• Free License: 64 Channels (64-channel for ACTi and 1-channel for third-party video device)
• Compression: H.264, MPEG-4, MJPEG
• Maximum Local Display Resolution: 1920 x1080
• Recording Throughput: Maximum total bitrate 300 Mbps
• Scheduled Recording: Record video with user defined schedule
• Event Recording: Record video when the alarm event is triggered, including the pre-event buffered video clip
• Manual Recording: Instant recording upon mouse click
• Dual Stream: Management Recording of stream 1 or stream 2 of dual stream devices
• Recording Frame Rate: Max 6000 fps total; Max 30 fps per camera
• HDD Bay: 12
• RAID Level: Hardware RAID 0, 1, 5, 10
• Recording Search: Search video recordings by time, event, channel and bookmark, and the results are listed as clickable thumbnails for full-size view and snapshot download
• Playback Control: Continuous forward and backward playback with speeds 1x/2x/4x/8x or frame-by-frame; pause; stop
• Synchronized Playback: Up to 9 channels for local display; up to 64 channels for remote client
• Manual Snapshot: Instant snapshot from playback upon mouse click
• Digital Zoom: Zoom in/out digitally by PiP (Picture-in-Picture)
• Video Cropping: Crop a short video clip from long recording file and save it as an independent file
• Video Export: Export video clips in AVI or RAW format; text overlay supported
• Event Trigger: Video motion detection; Passive IR sensor; External device through digital input; Video loss and recovery; Network loss and recovery; Server loss and recovery; Disk full; Disk not found
• Event Response: Record video; Pop-up window with live video; Switch to hotspot window; Play beep sound; Activate external device through digital output; Upload snapshot to FTP server; Execute system command to activate other programs; E-mail notification with snapshots; Command a PTZ device to go to a preset point
• Manual Event: Manually activate external devices through digital output via live view monitor
• Scheduler: Define the schedule of event manager
• Mobile Client: Program Mobile device application (Active Mobile Client) supports live view, PTZ control, event or time based search and playback
• Supported devices: iPhone, iPad, iTouch and Android device
• Dimensions (W x H x D): 482 mm x 88 mm x 620 mm (19” x 3.5” x 22.1”)
• Weight: 16.4 kg
• Operating Temperature: 5°C~ 40°C (41°F ~ 104°F)
• Operating Humidity: 10% ~ 85% RH
• Power Source / Consumption: 100V~240V AC, 47~63Hz (Built-in Redundant Power Supply) / 85.5 W
• Bundled Accessories: Power cord x 2, RJ-45 Ethernet cable x 3, External RJ-11 to DB-9 serial cable x 1, External SATA cable x 2
