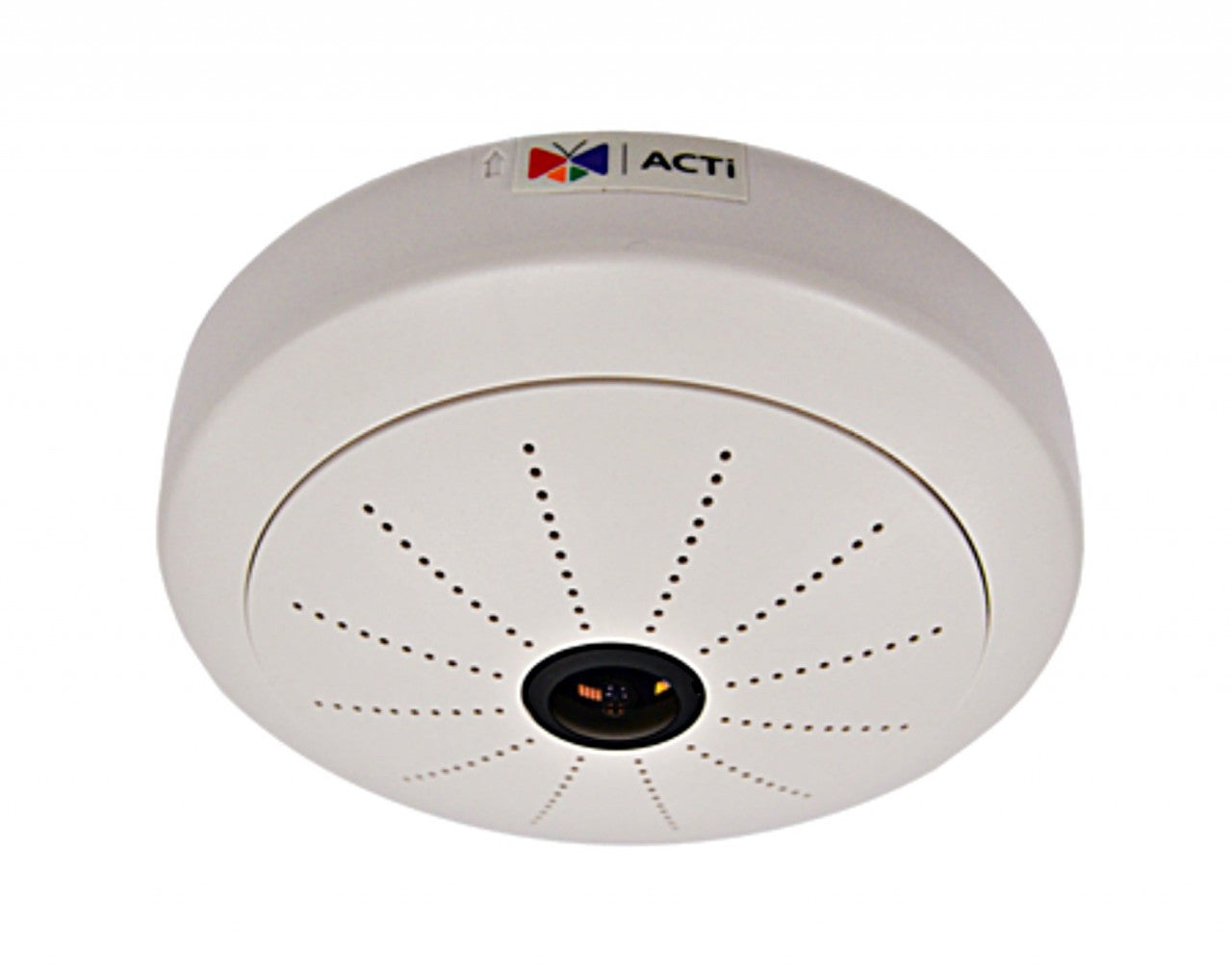

ACTi KCM-3911 4 Megapixel Hemispheric Network Camera
ACTi KCM-3911 4 Megapixel Hemispheric Network Camera
ACTi KCM-3911 4 Megapixel Hemispheric Network Camera

ACTi

ACTi KCM-3911 4 Megapixel Hemispheric Network Camera

Sale price$660.00
Discontinued
SKU: KCM-3911

Contact

Discontinued, replaced by the B57, I51, Q51, A81, A82, B59.

ACTi KCM-3911 Features

  • Resolution: 2032 x 1920
  • Image Sensor: Progressive Scan CMOS
  • Sensor Size: 1/2.5 “ (5.7 x 4.28 mm)
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes
  • Minimum Illumination: Color: 1.63 lux at F2.8 (30 IRE, 2400°K); B/W: 0.06 lux at F2.8 (30 IRE, 2400°K)
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: Fisheye
  • Focal Length: 1.05 mm
  • Iris: Fixed
  • Focus: Fixed
  • Field of View: 180° Horizontal
  • Compression Styles: H.264, MPEG-4 SP, MJPEG
  • Frame Rate: 6 fps at 2032 X 1920; 12 fps at 1920 X 1080; 12 fps at 1280 X 720; 12 fps at 640 X 480
  • Image Settings: ExDR (Extreme Dynamic Range), White balance: automatic, hold and manual; Brightness; Saturation; Contrast; Edge enhancement; Automatic gain control; 2D+3D Digital noise reduction; Flickerless; Defogging
  • Privacy Mask: Yes
  • Built-in Microphone: No
  • Audio Capabilities: Audio in, Audio out, 2 Cables with 3.5mm Phone Jack
  • Alarm/Event Management: Video motion detection (3-6 regions, depending on video mode); External device through digital input, Notify control center; Go to ePTZ preset point or preset tour; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video, snapshot to FTP server; Activate external device through digital output
  • ONVIF: Yes
  • Security: IP address filtering; HTTPS encryption; Password protected user levels; IEEE 802.1X network access control
  • Users: N/A
  • On-board Storage: Yes
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: N/A
  • Dimensions: 150mm x 45.32mm (5.9" x 1.8")
  • Weight: 425 g (0.93 lb)
  • Operating Temperature: -10 °C - 50°C (14°F - 122°F)
  • Operating Humidity: 10% ~ 85% RH
  • Power: PoE Class 3 (IEEE 802.3af) / 9.6W, DC 12V / 7.68W ( adapter not included)

ACTi KCM-3911 Overview

The KCM-3911 is a hemispheric camera featuring video motion detection and two-way audio, making it possible to record audio as well as to remotely speak to those who are in the surveillance area. As is customary with hemispheric cameras, the KCM-3911 is capable of capture a 180°/360° panorama image of the space it occupies. Equipped with a mechanical IR cut filter and capable of recording black and white images in an area with a minimum illumination of just 0.05 lux at F2.8, the KCM-3911 surveillance is a excellent option for those who wish to monitor a large space throughout the day and night with just one camera. Weighing just 0.93 pounds and measuring 5.9” x 1.8”, the KCM-3911 can be mounted flush against a wall or ceiling, mounted as a pendant system, installed on a pole or even placed on a corner. Capable of operating in humidity ranging from 10% to 85% relative humidity and in temperatures ranging from 14° to 122° F, the KCM-3911 can withstand virtually any indoor condition. Powered through Power over Ethernet, or PoE, technology, the KCM-3911 can be placed in even the most remote locations where power may not otherwise be available. With its ability to create up to 6 cropped regions as independent channels, the KCM-3911 allows the user to choose between viewing a panoramic scene or viewing 6 specific areas independently. Yet, with a frame rate of 6 frames per second, its 2032 x 1920 resolution and the option to choose between H.264, MPEG-4SP and MJPEG compressions with dual streaming capabilities, the KCM-3911 is capable to suit a wide range of applications.
