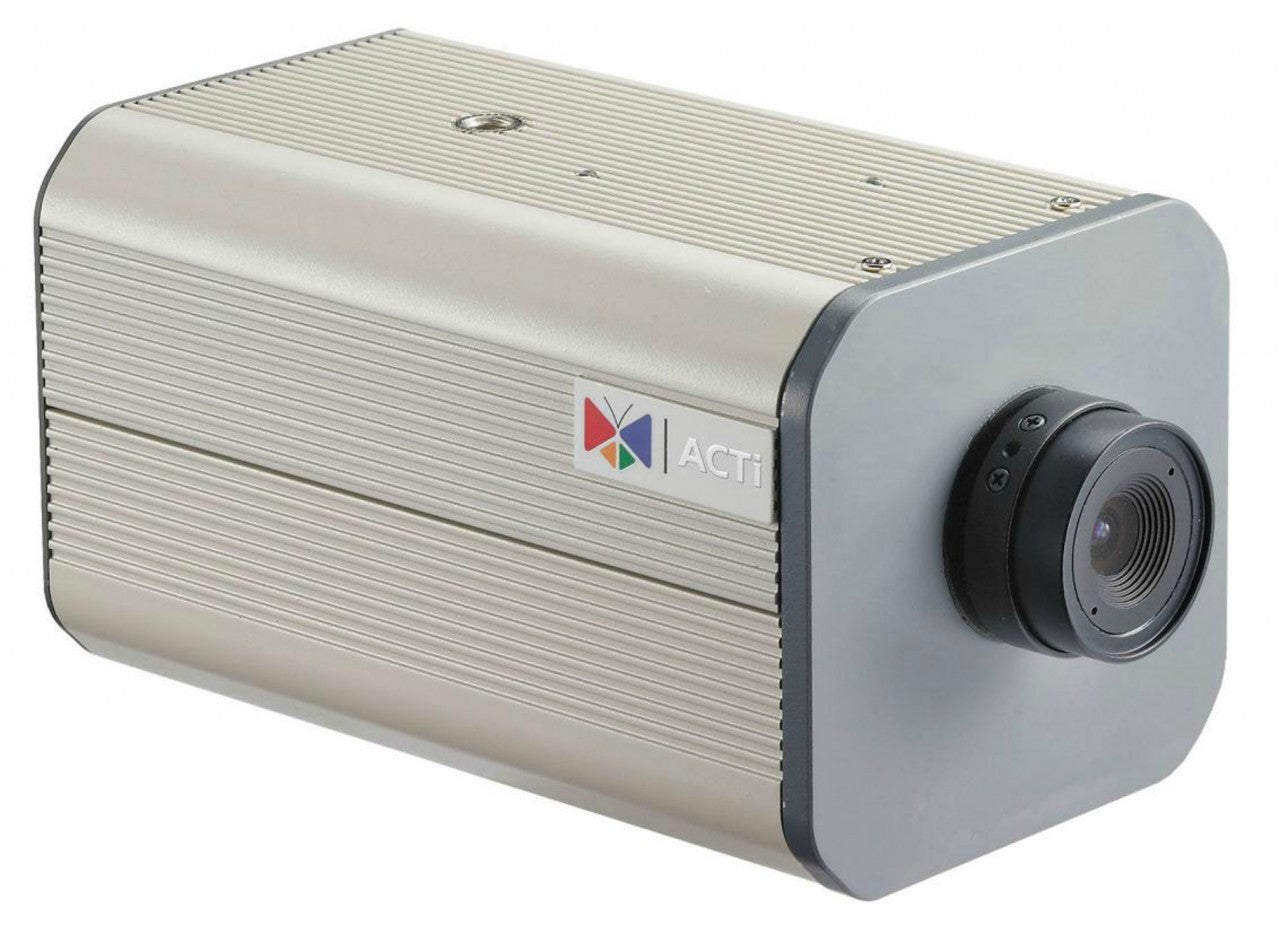

ACTi KCM-5111 PoE Box Style Network Camera
ACTi KCM-5111 PoE Box Style Network Camera
ACTi KCM-5111 PoE Box Style Network Camera
ACTi KCM-5111 PoE Box Style Network Camera

ACTi

ACTi KCM-5111 PoE Box Style Network Camera

Sale price$455.00
Discontinued
SKU: KCM-5111

Discontinued.

ACTi KCM-5111 Features

  • Resolution: 1280 x 720
  • Image Sensor: Progressive Scan CMOS
  • Sensor Size: 1/3.2 “ (4.5 x 3.4 mm)
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes
  • Minimum Illumination: Color: 0.1 lux at F2.0 (30 IRE, 2400°K); B/W: 0.05 lux at F2.0 (30 IRE, 2400°K)
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: Fixed
  • Focal Length: f2.8 mm / F2.0
  • Zoom: N/A
  • Iris: Fixed
  • Focus: Manual
  • Field of View: 82.59° Horizontal
  • Compression Styles: H.264, MPEG-4 SP, MJPEG
  • Frame Rate: 8 fps at 2032 X 1920; 15 fps at 1920 X 1080 (HD 1080p); 30 fps at 1280 x 720 (HD 720p); 30 fps at 640 x 480 (VGA)
  • Image Settings: White balance: automatic, hold and manual; Brightness; Contrast; Automatic gain control; Digital noise reduction; Flickerless; Image Flip and Mirror
  • Privacy Mask: Yes, 4 configurable regions
  • Built-in Microphone: Yes, 3.5mm Phone Jack
  • Audio Capabilities: Audio In, Audio Out
  • Alarm/Event Management: Video motion detection 3 regions in single view mode, 1 region each in 4 cropped VGA mode; External device through digital input; Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video, snapshot to FTP server; Activate external device through digital output
  • ONVIF: Yes
  • Security: IP address filtering; HTTPS encryption; Password protected user levels; IEEE 802.1X network access control
  • Users: N/A
  • On-board Storage: N/A
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: N/A
  • Dimensions: 76 mm x 71.4 mm x 126.2 mm (2.99" x 2.81" x 4.97")
  • Weight: 600 g (1.32 lb)
  • Operating Temperature: -10°C ~ 50°C (14°F ~ 122°F)
  • Operating Humidity: 10% ~ 85% RH
  • Power: PoE Class 3 (IEEE802.3af) / 8.64W DC 12V / 6.72W (adapter not included)
  • Warranty: 3 Years
  • What's Included: Software Development Kit (SDK) available

ACTi KCM-5111 Overview


Offering both day and night functions, the ACTi KCM-5111 is a box camera capable of providing quality imaging in low-light settings. With its mechanical IR cut filter, the ACTi KCM-5111 can record color imaging in settings as low as 0.1 lux at F2.0 and black and white images in a settings with light as low as 0.05 lux at F2.0. With its dual streaming capabilities coupled with its 8 fps at 2032 x 1920 resolution, the ACTi KCM-5111 box camera provides high-quality imaging and selectable H.264, MPEG-4 SP and MJPEG compression options.

Featuring Power over Ethernet Class 3/DC 12V technology, the ACTi KCM-5111 can be powered even in an area where power may not otherwise be available. With its video motion detection technology, the ACTi KCM-5111 begins recording whenever activity is detected in the area. Thanks to its MicroSD/MicroSDHC card slot, the video images can be locally stored and retrieved at a later date if necessary. With its two-way audio system, the user can also listen to what is taking place in the viewing area while also having the option to communicate with those who are in the area.

Bundled with the f2.8 mm / F2.0 Megapixel fixed lens and available with the optional P-Iris lens, the ACTi KCM-5111 camera offers a horizontal viewing angle of 82.59 degrees. Capable of providing up to 4 cropped regions as independent channels, the ACTi KCM-5111 provides a variety of viewing options to suit the unique needs of the user.
