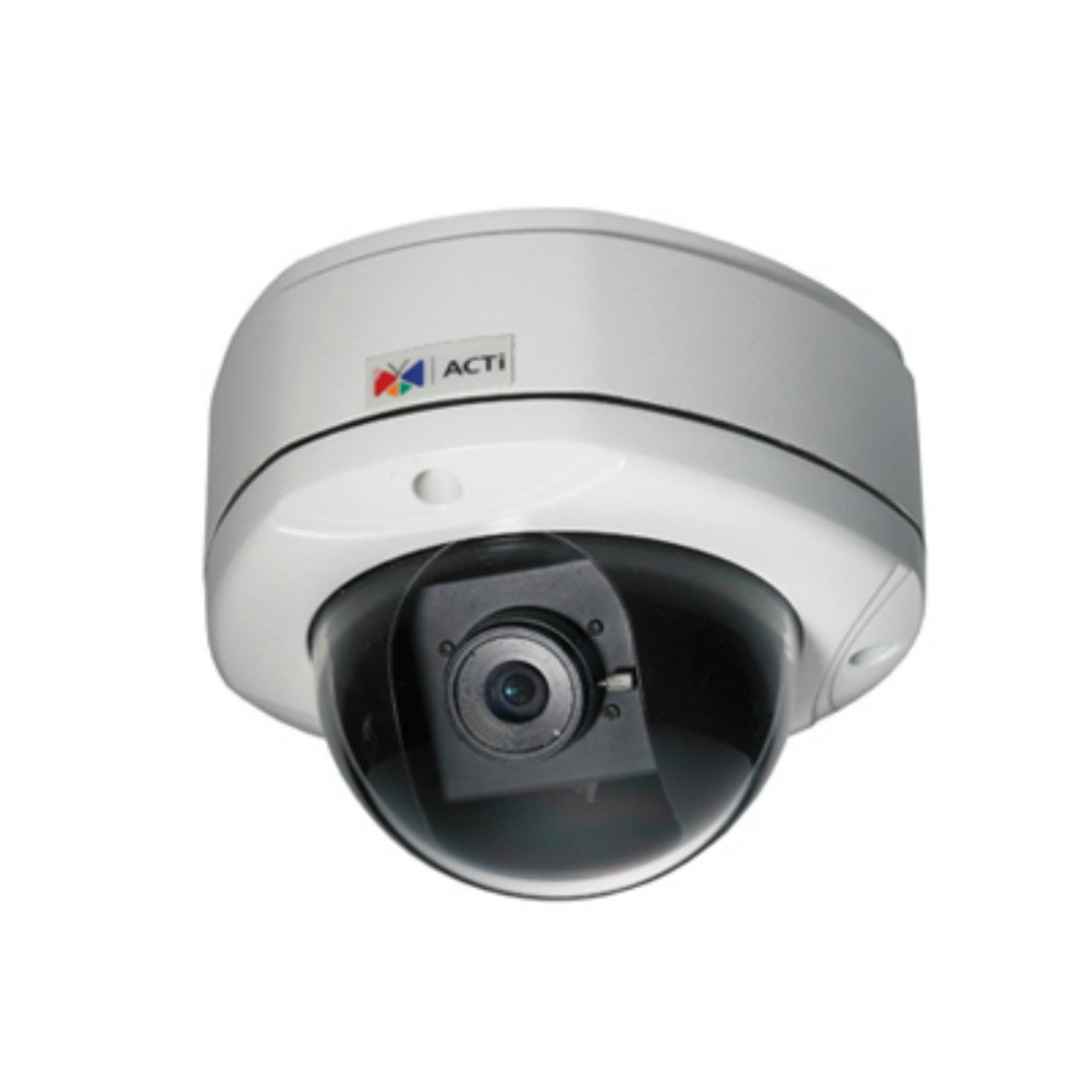

ACTi KCM-7111 4MP Outdoor Dome Network Camera

ACTi KCM-7111 Features

• Resolution: 2032 X 1920
• Image Sensor: Progressive Scan CMOS
• Sensor Size: 1/3.2 “ (4.5 x 3.4 mm)
• Day/Night: Yes
• Mechanical IR Cut Filter: Yes
• Minimum Illumination: Color: 0.1 lux at F2.0 (30 IRE, 2400°K); B/W: 0.05 lux at F2.0 (30 IRE, 2400°K)
• IR Illuminators: No
• IR Illuminator Range: n/a
• Lens Type: Varifocal
• Focal Length: f2.8 mm / F2.0
• Zoom: N/A
• Iris: Fixed
• Focus: Manual
• Field of View: Horizontal Viewing Angle: 82.59°
• Compression Styles: H.264, MPEG-4 SP, MJPEG
• Frame Rate: 8 fps at 2032 X 1920; 15 fps at 1920 X 1080 (HD 1080p); 30 fps at 1280 x 720 (HD 720p); 30 fps at 640 x 480 (VGA)
• MPEG-4 SP: 5 fps at 2032 X 1920; 11 fps at 1920 X 1080 (HD 1080p); 25 fps at 1280 x 720 (HD 720p); 30 fps at 640 x 480 (VGA)
• VGA: 15 fps at 640 x 480
• Image Settings: White balance: automatic, hold, and manual; Brightness; Contrast;Auto gain control; Digital noise reduction; Flickerless
• Privacy Mask: Yes, 4 configurable regions
• Built-in Microphone: No
• Audio Capabilities: N/A
• Alarm/Event Management: Video motion detection (3 regions); 1 region each in 4 cropped VGA mode; External device through digital input, Notify control cente; Change camera settings; Command other devices; E-mail notification with snapshots; Upload video, snapshot to FTP server; Activate external device through digital output
• ONVIF: Yes
• Security: IP address filtering; HTTPS encryption; Password protected user levels; Anonymous login; IEEE 802.1X network access control
• Users: N/A
• On-board Storage: N/A
• Indoor/Outdoor: Outdoor
• Housing/Enclosure Rating: Weatherproof (IP66 rated)
• Dimensions: 151.69 mm x 114.9 mm (5.97" x 4.52")
• Weight: 1415 g (3.12 lb)
• Operating Temperature: -30°C ~ 50°C (-22°F ~ 122°F)
• Operating Humidity: 10% ~ 85% RH
• Power: PoE Class 3 (IEEE802.3af) / 10.08W, DC 12V / 8.28W (adapter not included)
• Warranty: Two Years

ACTi KCM-7111 Overview

The KCM-7111 is a fixed-dome camera capable of both day and night function and offering features that make it ideal for both indoor and outdoor operation. With its IP66-rated, the KCM-7111 is both vandal- and weatherproof, capable of operating in temperatures ranging from -22°F to 122°F and in relative humidity ranging from 10% to 85%. Powered by Power over Ethernet, or PoE, technology and capable of motion detection, the KCM-7111 surveillance camera can be used in even the most remote locations. Not only can the KCM-7111 be mounted on a wall or ceiling, but it can also be placed on a pole, in a corner or even hung as a pendant camera.

Capable of creating up to 4 cropped regions as independent channels and featuring two-way audio, the KCM-7111 allows the user to focus on specific surveillance areas while also communicating with anyone located in the area. Featuring video motion detection and capable of monitoring three regions for motion detection in a single view mode, the KCM-7111 can effectively monitor several areas with just one camera.

Offering a horizontal viewing angle of 82.59° and capable of rotating 360°, the KCM-7111 can cover a significant amount of space with just one camera. With a resolution of 8 fps at 2032 x 1920, the KCM-7111 is capable of capturing quality images from virtually any vantage point. With its IR cut filter system, the KCM-7111 is capable of capturing color recordings in light levels as low as 0.1 lux at F2.0 and black and white recordings in light levels as low as 0.05 lux at F2.0 with an IR sensitivity range of 700 to 1100 nm.
