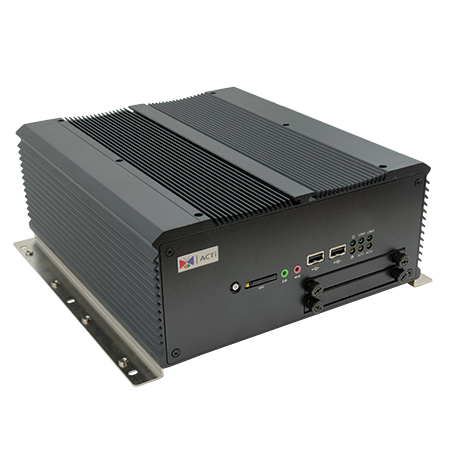

ACTi MNR-310 Features
- Camera Compatibility: Fully compatible with ACTi cameras, encoders, central management system, TV wall and intelligent video surveillance software; Non-ACTi camera support via licensed Camera Device Pack
- Maximum Number of Cameras 32 (16 free)
- Max Clients: 1 local, 3 remote
- Video Compression: H.264, MPEG-4, MJPEG
- MaxLocal Display Resolution: 1920 x1200
- Max Throughput: 192 Mbps
- Recording Frame Rate: Max 960 fps total; Max 30 fps per camera
- Video Export Formats: Export video clips in AVI or RAW format; text overlay supported
- Display Layout: Local: 1, 4; Remote: 1, 4, 5, 6, 8, 9, 10, 12, 16, 18, 24, 25, 32
- Scheduled Recording: Record video with user defined schedule
- Event Recording: Record video when the alarm event is triggered, including the pre-event buffered video clip
- Manual Recording: Instant recording upon mouse click / Instant snapshot upon mouse click or hot key
- PTZ Controls: Pan, tilt and zoom controls; speed control; both buttons and mouse controls
- Search Features: Search video recordings by time, channel or event, and the results are listed as clickable thumbnails for full-size view and snapshot download; Search Search alarm triggered video recordings
- Playback Features: Continuous forward and backward playback with speeds 1x/2x/4x/8x or frame-by-frame; pause; stop
- Alarm Triggers: Video motion detection; Passive IR sensor; External device through digital input; Video loss and recovery; Network loss and recovery; Server loss and recovery; Disk full; Disk not found
- Alarm Notification: Record video; Pop-up window with live video; Switch to hotspot window; Play beep sound; Activate external device through digital output; Upload snapshot to FTP server; Execute system command to activate other programs; E-mail notification with snapshots; Command a PTZ device to go to a preset point; Manually activate external devices through digital output via live view monitor
- Remote Access with PC Based Web Browser: Microsoft Internet Explorer 8.0, 9.0, 10.0 and 11.0 with live view, PTZ, playback, event management, setup
- ONVIF: Yes
- Hard Drive Bays: 2
- Max TB per HD Bay: 1 TB
- USB Ports: USB 2.0, 4 ports (USB 1.1 not supported)
- Ethernet Ports: 2, Gigabit Ethernet ports (1000 Base-T), RJ-45 connector
- Display Port(s): 1 HDMI Port & 1 VGA
- Dimensions (W x H x D): 235 mm x 101 mm x 268 mm (9.25” x 3.97” x 10.55”)
- Weight: 5.25 kg (11.57 lb) without HDD
- Operating Temperature: 20°C ~ 60°C (-4°F ~ 140°F)
- Operating Humidity: 10% ~ 90% RH (non-condensing)
- Power Source/Consumption: 110V~220V AC / 9V~36V DC
- Warranty: 2 Years
