ACTi MNR-320P

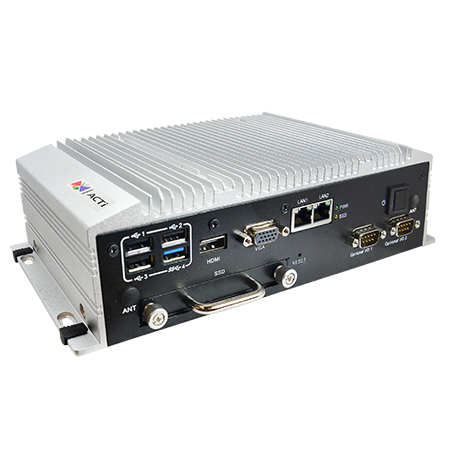

ACTi MNR-320P 16-Channel 1-Bay Mobile NVR

ACTi

ACTi MNR-320P 16-Channel 1-Bay Mobile NVR

$5,736.80 $7,171.00
Save $1,434.20
SKU: MNR-320P
Quantity:
Link to Manufacturer's Page

Contact

ACTi MNR-320P Features

• General

  • Maximum Number of Clients 1 local, 5 remote
  • Maximum Number of Cameras 16 Channels
  • Maximum Number of POS Devices 16 Channels
  • Maximum Number of Access
  • Control and Network I/O Devices 16 Channels
  • Free License 16 Channels
  • Compression H.265, H.264, MPEG-4, MJPEG
  • Maximun local display resolution 1920 x1200

• Live View

  • Display Layout Mode 1, 4, 5, 6, 8, 9, 10, 12, 16
  • View Manager An interface to define display layouts and the pre-set cameras within layout in the public or private view
  • View Patrol Automatic switch between different views or devices
  • View Panel Contains the list of pre-defined views for quick launch
  • Digital Zoom Zoom in/out digitally by mouse scroll wheel or by zoom control buttons
  • Camera Tree Drag and drop video source from camera tree into display layout; display camera status on the tree
  • Manual Recording / Snapshot Instant recording upon mouse click / Instant snapshot upon mouse click or hot key
  • Event Panel Display event status upon alarm or upon connection loss or recovery between server and client or when the allocated disk space is full or
  • Point-of-sale (POS), Access control and Network I/O status
  • Two-way Audio Audio sound from and to all the audio supported devices; audio broadcast to multiple devices at the same time
  • Multiple Stream Management Live view of stream 1, stream 2 or stream 3 of miulti-stream devices
  • Instant Playback Instant playback in live view window
  • Web Controller Display and connect to pre-configured embedded website

• e-Map

  • Layout Area maps with camera icons, small live view windows; hyperlinked
  • e-Map Type Google Maps; Static Map (JPG image)
  • Setup e-Map image upload; Google maps settings and preset management; camera positioning; vision angle and pointed direction of camera;
  • view positioning; source positioning; extended devices for Point-of-sale (POS), Access control and Network I/O
  • PTZ Mode Mouse PTZ mode to control e-Map video streams

• PTZ

  • Control Pan, tilt and zoom controls; speed control; both buttons and mouse controls
  • Preset Points and Tours Create preset points; create auto tours between preset points
  • Number of Preset Points 32
  • Joystick USB based joystick supported
  • Default Protocol Auto-detect camera's PTZ protocol. Available protocols: ACTi, Pelco-P, Pelco-D, Dynacolor, Visca

• Recording

  • Recording Throughput Maximum total bitrate 192 Mbps
  • Scheduled Recording Record video with user defined schedule
  • Event Recording Record video when the alarm event is triggered, including the pre-event buffered video clip
  • Speed Up Different recording frame rate settings for non-event and triggered event
  • Manual Recording Instant recording upon mouse click
  • Pre-Event Recording User-defined time period to record before event occurs, and the maximum buffer is 60 seconds (default 5 seconds)
  • Post-Event Recording User-defined time period to record after event occurs, and the maximum buffer is 3600 seconds (default 30 seconds)
  • Multiple Stream Management Recording of stream 1, stream 2 or stream 3 of miulti-stream devices
  • Recording Frame Rate Max 960 fps total; Max 30 fps per camera

• Storage

  • Interface Serial ATA
  • Bundled System Drive TBD
  • HDD Bay 1
  • RAID Level Software RAID 0, 1
  • External Storage Support USB

• Search & Playback

  • Recording Search Search video recordings by time, events (motion, DI, Video Status, Network Status, Manual Recordings, extended device status, event confirm status with invalid or valid), channel, bookmark, notification and listed as clickable time-based thumbnails for full-size view and snapshot download
  • Smart Search Smart search of recorded video by Motion Detection and Tamper
  • Playback Control Continuous forward and backward playback with speeds 1x/2x/4x/8x/16x or frame-by-frame; pause; stop
  • Synchronized Playback Up to 9 channels for local display; up to 16 channels for remote client
  • Manual Snapshot Instant snapshot from playback upon mouse click
  • Digital Zoom Zoom in/out digitally by PiP (Picture-in-Picture)
  • Video Cropping Crop a short video clip from long recording file and save it as an independent file
  • Video Export Export video clips in EXE, AVI or RAW format; text overlay and Point-of-sale (POS) transaction data supported

• Event Management

  • Event Trigger
  • NVR: Disk full, Disk not found, Disk is available, Schedule service start/stop, Video Push start/stop, CPU limit exceeded
  • Video Device: Video motion detection, Passive IR sensor, External device through digital input, Sound detection, Intelligent event detection,
  • Video Push start/stop, Video loss and Recovery, Network loss and recovery
  • Extended Device: Point-of-sale (POS) status, Network I/O status, Access control allowed/denied, Car park status
  • Event Response
  • Pop-up window with live video and event confirmation activation, Switch to hotspot window, Switch to customize view, Command a PTZ device to go to a preset point, Play alert sound, Activate external device through digital output, Execute system command to activate other programs, Upload video or snapshot to FTP server, E-mail notification with snapshots, Push notification
  • Manual Event Manually activate external devices through digital output via live view monitor
  • Event Handling Define the schedule of event manager

• Video Analytics

  • Built-in Analytics Shock Detection with built-in G-sensor

• System

  • Permission Control Unlimited number of users, Active Directory, Customizable permissions for user groups, Account lockout, Playback password protected,
  • Password validity period
  • Operating System Win 7 Std. Embedded
  • Language Multi-language support
  • Language Import/Export Possibility to import or export language packs for convenient local language management
  • Customizable User Interface Define the layout of user interface for live view and playback
  • Quick Setup Configure basic settings of NVR
  • GPS Position Manual setting

• Remote Access

  • PC Client Program User interface program (Workstation) with live view, PTZ, playback, e-Map, video push, event management, setup
  • PC Web Browser Microsoft Internet Explorer with live view, PTZ, playback, e-Map, video push, event management, setup
  • Mobile Client Program Mobile device application (Active Mobile Client) supports live view, PTZ control, video push, event or time based search and playback;
  • Supported devices: iPhone, iPad, iTouch and Android device

• Hardware

  • CPU Intel Processor
  • RAM 4GB
  • Dimensions (W x H x D) 264.5mm x 69.2mm x 133mm (10.41" x 2.72" x 5.23")
  • Operating Temperature 0°C ~ 45°C (32°F ~ 113°F)
  • Operating Humidity 10% ~ 95% RH (non-condensing)
  • Power Source DC 12V, DC 9-36V
  • Approvals CE (EN 55022 Class A, EN 55024), FCC (Part15 Subpart B Class A), e-Mark (e13), MIL-STD-810F, UL (for optional power adapter), CCC, BSMI
  • USB 4 ( USB 2.0 x 3, USB 3.0 x 1)
  • RJ-45 Connector 2, Gigabit Ethernet ports (1000 Base-T), RJ-45 connector
  • Built-in PoE Connectors 4 Ports
  • Audio Port Mic-in x 1; Line-out x 1; Line-Out x 1
  • Ethernet Gigabit Ethernet ports*2
  • Serial Ports 2 x DB9 connectors for RS-232/422/485 signal
  • GPIO 6 x DI & 2 x DO
  • Power Ignition Module 1
