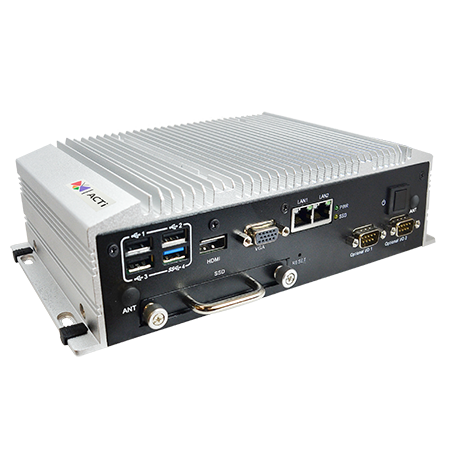

ACTi MNR-330P Features
General
- Full Name ACTi Transportation Standalone Network Video Recorder MNR-330P
- Maximum Number of Clients 1 local, 5 remote
- Maximum Number of Cameras 16 Channels
- Maximum Number of POS Devices 16 Channels
- Maximum Number of Access Control and Network I/O Devices 16 Channels
- Free License 16 Channels
- Compression H.265, H.264, MPEG-4, MJPEG
- Maximum local display resolution 1920 x1200
Live View
- Display Layout Mode 1, 4, 5, 6, 8, 9, 10, 12, 16
- View Manager An interface to define display layouts and the pre-set cameras within layout in the public or private view
- View Patrol Automatic switch between different views or devices
- View Panel Contains the list of pre-defined views for quick launch
- Digital Zoom Zoom in/out digitally by mouse scroll wheel or by zoom control buttons
- Camera Tree Drag and drop video source from camera tree into display layout; display camera status on the tree
- Manual Recording / Snapshot Instant recording upon mouse click / Instant snapshot upon mouse click or hot key
- Event Panel Display event status upon alarm or upon connection loss or recovery between server and client or when the allocated disk space is full or Point-of-sale (POS), Access control and Network I/O status
- Two-way Audio Audio sound from and to all the audio supported devices; audio broadcast to multiple devices at the same time
- Multiple Stream Management Live view of stream 1, stream 2 or stream 3 of miulti-stream devices
- Instant Playback Instant playback in live view window
- Web Controller Display and connect to pre-configured embedded website
e-Map
- Layout Area maps with camera icons, small live view windows; hyperlinked
- e-Map Type Google Maps; Static Map (JPG image)
- Setup e-Map image upload; Google maps settings and preset management; camera positioning; vision angle and pointed direction of camera; view positioning; source positioning; extended devices for Point-of-sale (POS), Access control and Network I/O
- PTZ Mode Mouse PTZ mode to control e-Map video streams
PTZ
- Control Pan, tilt and zoom controls; speed control; both buttons and mouse controls
- Preset Points and Tours Create preset points; create auto tours between preset points
- Number of Preset Points 32
- Joystick USB based joystick supported
- Default Protocol Auto-detect camera's PTZ protocol. Available protocols: ACTi, Pelco-P, Pelco-D, Dynacolor, Visca
Recording
- Recording Throughput Maximum total bitrate 192 Mbps
- Scheduled Recording Record video with user defined schedule
- Event Recording Record video when the alarm event is triggered, including the pre-event buffered video clip
- Speed Up Different recording frame rate settings for non-event and triggered event
- Manual Recording Instant recording upon mouse click
- Pre-Event Recording User-defined time period to record before event occurs, and the maximum buffer is 60 seconds (default 5 seconds)
- Post-Event Recording User-defined time period to record after event occurs, and the maximum buffer is 3600 seconds (default 30 seconds)
- Multiple Stream Management Recording of stream 1, stream 2 or stream 3 of miulti-stream devices
- Recording Frame Rate Max 960 fps total; Max 30 fps per camera
Storage
- Interface Serial ATA
- Bundled System Drive TBD
- HDD Bay 1
- RAID Level Software RAID 0, 1
- External Storage Support USB
Search & Playback
- Recording Search Search video recordings by time, events (motion, DI, Video Status, Network Status, Manual Recordings, extended device status, event confirm status with invalid or
- valid), channel, bookmark, notification and listed as clickable time-based thumbnails for full-size view and snapshot download
- Smart Search Smart search of recorded video by Motion Detection and Tamper
- Playback Control Continuous forward and backward playback with speeds 1x/2x/4x/8x/16x or frame-by-frame; pause; stop
- Synchronized Playback Up to 9 channels for local display; up to 16 channels for remote client
- Manual Snapshot Instant snapshot from playback upon mouse click
- Digital Zoom Zoom in/out digitally by PiP (Picture-in-Picture)
- Video Cropping Crop a short video clip from long recording file and save it as an independent file
- Video Export Export video clips in EXE, AVI or RAW format; text overlay and Point-of-sale (POS) transaction data supported
Event Management
- Event Trigger:
- NVR: Disk full, Disk not found, Disk is available, Schedule service start/stop, Video Push start/stop, CPU limit exceeded
- Video Device: Video motion detection, Passive IR sensor, External device through digital input, Sound detection, Intelligent event detection,
- Video Push start/stop, Video loss and Recovery, Network loss and recovery
- Extended Device: Point-of-sale (POS) status, Network I/O status, Access control allowed/denied, Car park status
- Event Response:
- Pop-up window with live video and event confirmation activation, Switch to hotspot window, Switch to customize view, Command a PTZ
- device to go to a preset point, Play alert sound, Activate external device through digital output, Execute system command to activate other
- programs, Upload video or snapshot to FTP server, E-mail notification with snapshots, Push notification
- Manual Event Manually activate external devices through digital output via live view monitor
- Event Handling Define the schedule of event manager
Video Analytics
- Built-in Analytics Shock Detection with built-in G-sensor
System
- Permission Control Unlimited number of users, Active Directory, Customizable permissions for user groups, Account lockout, Playback password protected,
- Password validity period
- Operating System Win 7 Std. Embedded
- Language Multi-language support
- Language Import/Export Possibility to import or export language packs for convenient local language management
- Customizable User Interface Define the layout of user interface for live view and playback
- Quick Setup Configure basic settings of NVR
- GPS Position Manual setting
Remote Access
- PC Client Program User interface program (Workstation) with live view, PTZ, playback, e-Map, video push, event management, setup
- PC Web Browser Microsoft Internet Explorer with live view, PTZ, playback, e-Map, video push, event management, setup
- Mobile Client Program Mobile device application (Active Mobile Client) supports live view, PTZ control, video push, event or time based search and playback;
- Supported devices: iPhone, iPad, iTouch and Android device
Hardware
- CPU Intel Processor
- RAM 8GB
- Dimensions (W x H x D) 264.5mm x 69.2mm x 133mm (10.41" x 2.72" x 5.23")
- Operating Temperature 0°C ~ 45°C (32°F ~ 113°F)
- Operating Humidity 10% ~ 95% RH (non-condensing)
- Power Source DC 12V, DC 9-36V
- Approvals CE (EN 55022 Class A, EN 55024), FCC (Part15 Subpart B Class A), e-Mark (e13), MIL-STD-810F, UL (for optional power adapter), CCC, BSMI
- USB 4 ( USB 2.0 x 3, USB 3.0 x 1)
- RJ-45 Connector 2, Gigabit Ethernet ports (1000 Base-T), RJ-45 connector
- Built-in Poe Connectors 4 Ports
- Audio Port Mic-in x 1; Line-out x 1; Line-Out x 1
- Ethernet Gigabit Ethernet ports*2
- Serial Ports 2 x DB9 connectors for RS-232/422/485 signal
- GPIO 6 x DI & 2 x DO
- Power Ignition Module 1
Integration
- Unified Solution Fully compatible with ACTi cameras, encoders, central management system, TV wall and intelligent video surveillance software
- Open Platform Solution Support ONVIF compliant devices
- ISV CMS Integration Software Development Kit (SDK) available
- Third-Party Integration Point-of-sale (POS), Access control, Network I/O, Car Park
Licensing Part Numbers
- ACTi video device license: LNVR3003
- Third-party video device integration license: LCDP1003
- POS device integration license: LPOS3000
- Access control and network I/O device integration license: LEXD3000
