ACTi

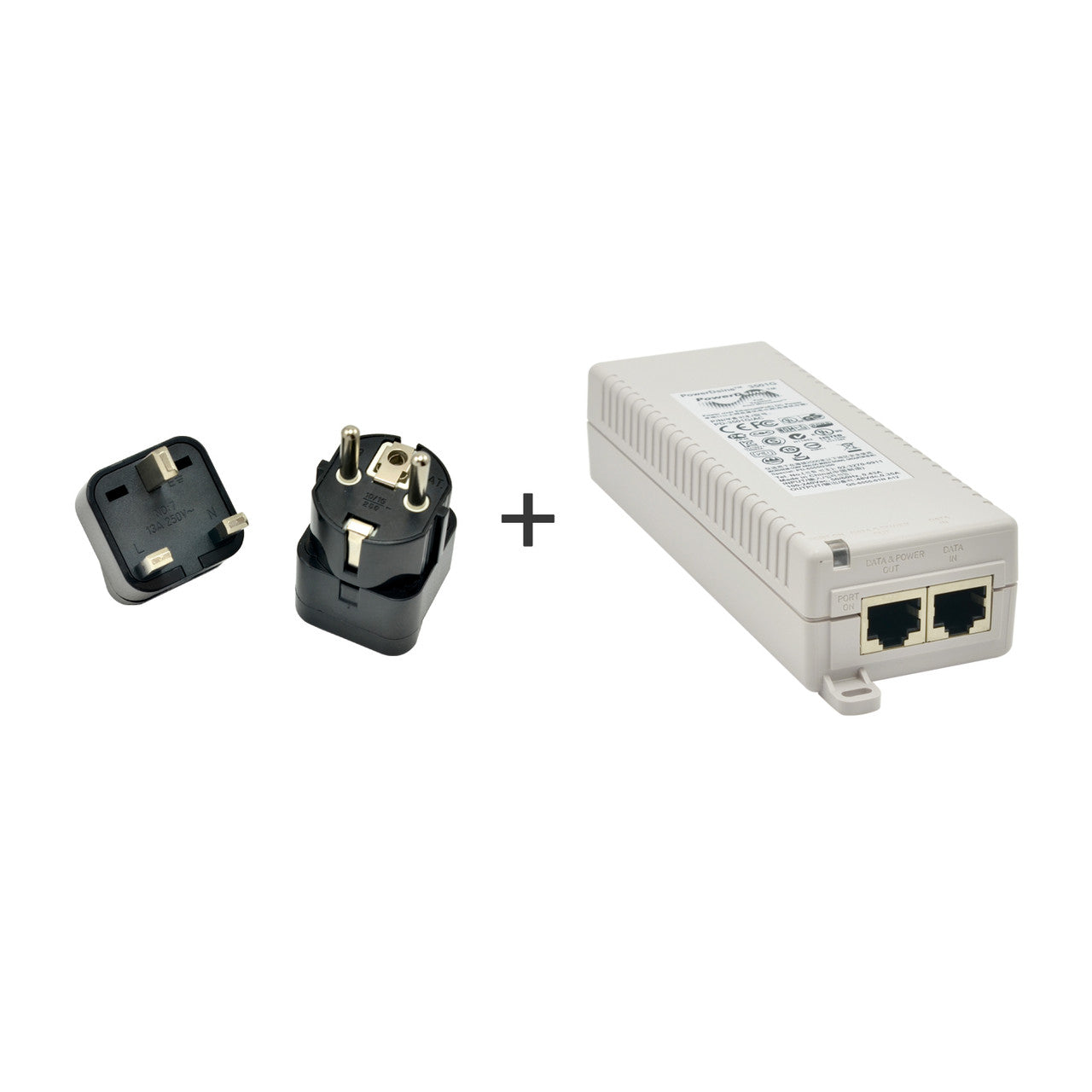

ACTi PPOE-0001 PoE Injector
Discontinued - Recommended Replacement: PPOE-0002
ACTi PPOE-0001 PoE Injector Features
- IEEE802.3af PoE Injector for Class 1, 2 or 3 devices, with universal adapter
- Warranty: 1 year
Device
| Original Manufacturer | Microsemi |
| Product Type | PoE Injector |
| Original Model | PD-3501G |
| Description | PoE Injector , IEEE 802.3af compliant, AC 100~240V, with universal connectors |
Network
| Ethernet Port | PoE: 2 port(s), Ethernet (10/100/1000 Base-T), RJ-45 connector |
General
| PoE Output | Maximum 15.4 Watts per port |
| PoE Power Budget | Maximum 15.4 W |
| Power Source | AC 110-240V, 0.5 A |
| Weight | 200g (0.44lb) |
| Dimensions | (W x H x D): 32.5mm x 140mm x 53mm (1.28" x 5.5" x 2.09") |
| Bundled Accessories | Universal power connector |
| Starting Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Power Connector Type | United States, Japan, United Kingdom, Europe, Australia |
| Approvals | CE, FCC, UL, CCC, GS, CB, VCCI, KC, KCC, CQC, S-Mark, C-Tick, NOM/NYCE, GOST, SABS, BSMI |
| Color | White |
| Warranty | 1 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
| PoE Standard | IEEE 802.3af |
| Power Output | DC 48V |
