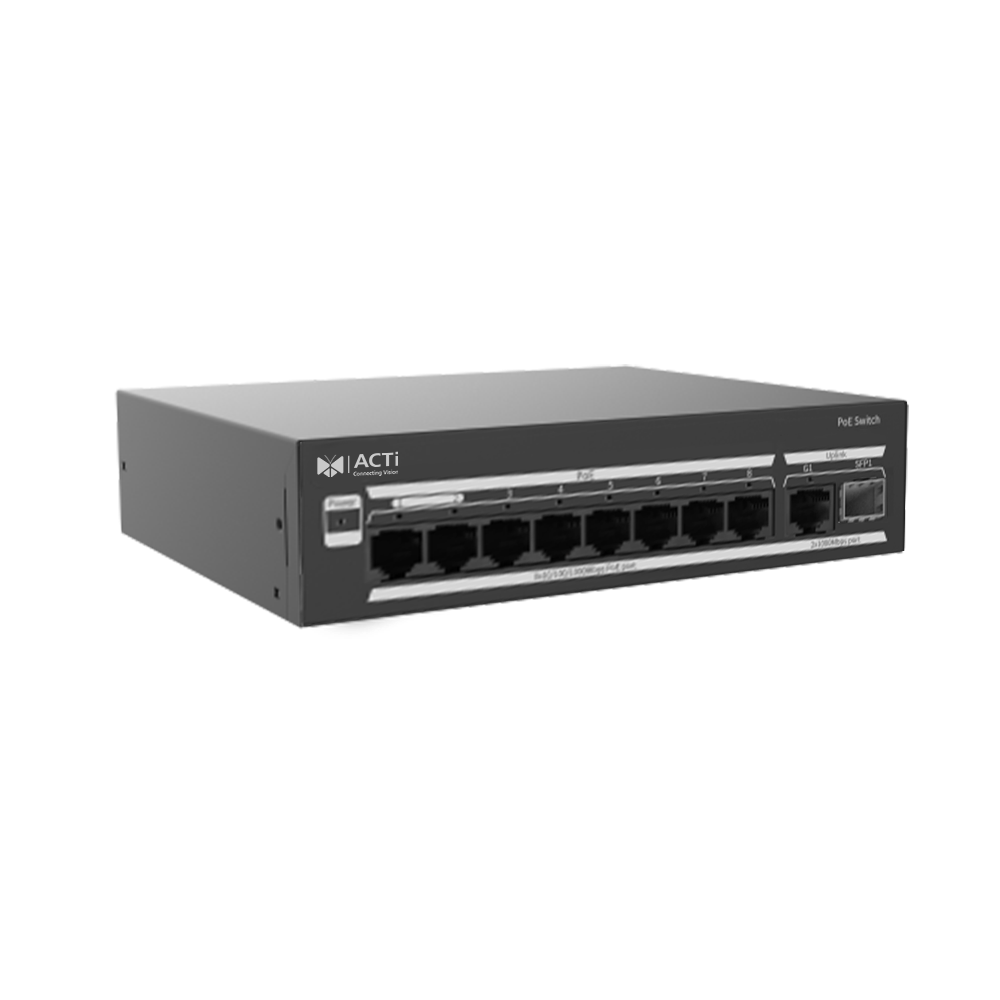

ACTi PPSW-0109 8-Port 802.3at Smart Managed PoE Switch (PoE Budget 120W)
Quantity:
Choose options
Quantity:
| Product Type | Data Switch |
| Description | 8-Port 802.3at Smart Managed PoE Switch (PoE Budget 120W) |
| Switch Architecture | Store-and-Forward |
Switch Performance
| Switching Capacity | 20Gbps |
| Forwarding Rate | 14.88Mpps |
| MAC Address Table | 8K |
| Packet Buffer | 4 megabits |
| Flow Control | Full-duplex; Half-duplex; Auto-negotiation |
Network
| Network Protocol & Service | IEEE 802.1Q, STP, RSTP, IGMP, IEEE 802.1p, QoS (DSCP), SNMP |
| Ethernet Port | Total ports: 10 port(s) PoE: 8 port(s), Ethernet (10/100/1000 Base-T), RJ-45 connector Non-PoE: 1 port(s), Ethernet (10/100/1000 Base-T), RJ-45 connector 1 x Ethernet (1000 Base-T), SFP connector |
System
| Managed | Yes (Smart Managed) |
| Management Features | Cloud managed, Web browser |
General
| PoE Standard | IEEE 802.3af, IEEE 802.3at |
| PoE Output | Maximum 30 Watts per port |
| PoE Power Budget | Maximum 120 W |
| Power Source | AC 100-240V |
| Weight | 850g(1.87lb) |
| Dimensions | (W x H x D): 169mm x 40mm x 132mm (6.7" x 1.6" x 5.2") |
| Fan | No |
| Operating Temperature | 0°C ~ 45°C (32°F ~ 113°F) |
| Operating Humidity | 10% - 90% RH, non-condensing |
| Color | Black |
| Material | Metal |
| Warranty | 1 Year(s) |
8-Port 802.3at Smart Managed PoE Switch (PoE Budget 120W)
