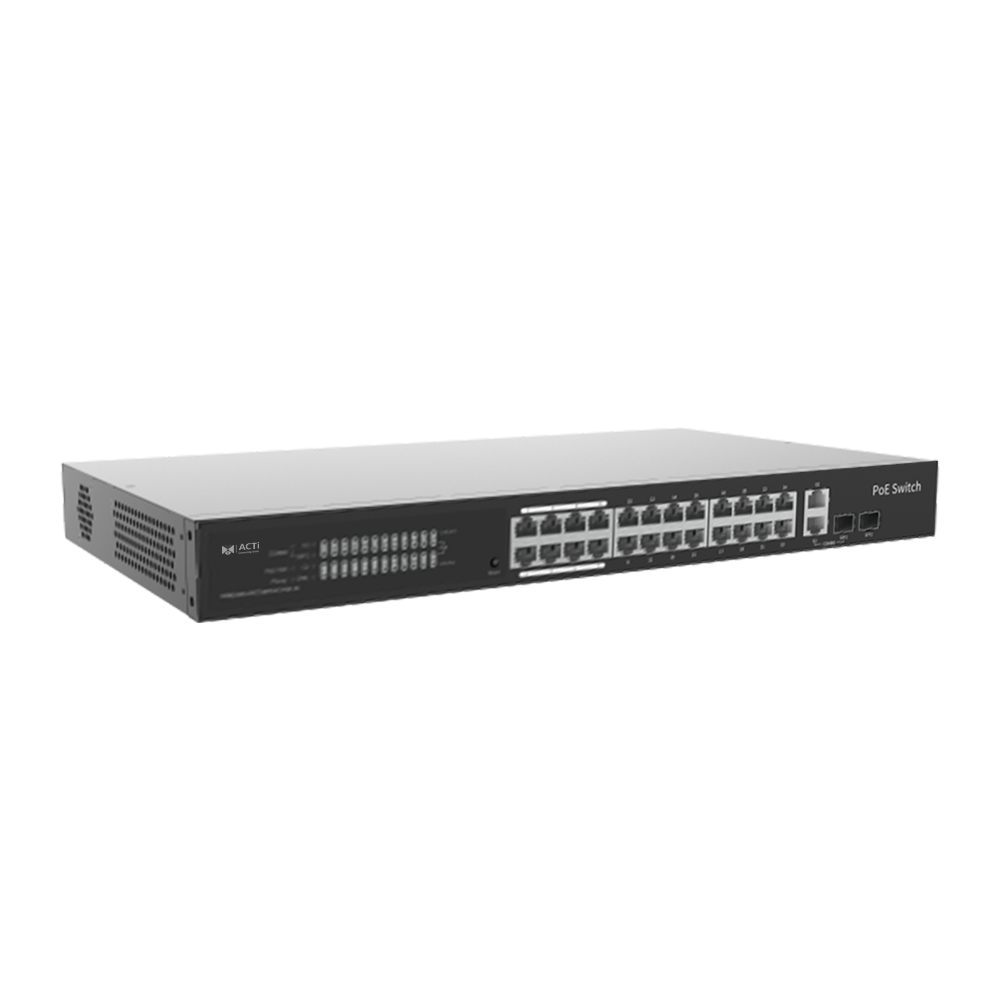

ACTi PPSW-1107 24-port 10/100/1000Mbps PoE, Smart Managed Gigabit Ethernet PoE Switch
Quantity:
Choose options
Quantity:
Product Profile
| Product Type | Data Switch |
| Description | 24-port 10/100/1000Mbps PoE, Smart Managed Gigabit Ethernet PoE Switch |
| Switch Architecture | Store-and-Forward |
Switch Performance
| Switching Capacity | 54Gbps |
| Forwarding Rate | 40.18Mpps |
| MAC Address Table | 8K |
| Packet Buffer | 4 megabits |
| Flow Control | Full-duplex; Half-duplex; Auto-negotiation |
Network
| Ethernet Port | Total ports: 26 port(s) PoE: 24 port(s), Ethernet (10/100/1000 Base-T), RJ-45 connector Non-PoE: 1 port(s), Ethernet (10/100/1000 Base-T), RJ-45 connector Non-PoE: 1 port(s), Ethernet (100/1000 Base-X), SFP connector |
System
| Managed | Yes (Smart Managed) |
| Management Features | Cloud managed, Web browser |
General
| PoE Standard | IEEE 802.3af, IEEE 802.3at |
| PoE Output | Maximum 30 Watts per port |
| PoE Power Budget | Maximum 370 W |
| Power Source | AC 100-240V |
| Fan | Yes, 1 fan(s) |
| Operating Temperature | 0°C ~ 45°C (32°F ~ 113°F) |
| Operating Humidity | 10% - 90% RH, non-condensing |
| Color | Black |
| Material | Metal |
| Warranty | 1 Year(s) |
24-port 10/100/1000Mbps PoE, Smart Managed Gigabit Ethernet PoE Switch
