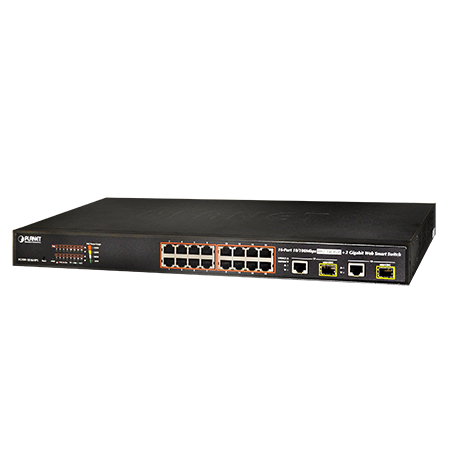

ACTi PPSW-3100 PLANET FGSW-1816HPS 16-Port 802.3at PoE Switch
ACTi PPSW-3100 PLANET FGSW-1816HPS 16-Port 802.3at PoE Switch (PoE Budget 220W)

ACTi

ACTi PPSW-3100 PLANET FGSW-1816HPS 16-Port 802.3at PoE Switch (PoE Budget 220W)

$862.67 $995.00
Save $132.33
SKU: PPSW-3100
Quantity:
Link to Manufacturer's Page

Contact

16-Port 802.3at PoE Switch , (PoE Budget 220W)

  • Rack Space: 1U
  • Web Client

Device

Original Manufacturer PLANET
Product Type Data Switch
Original Model FGSW-1816HPS
Description 16-Port 802.3at PoE Switch , (PoE Budget 220W)

Network

Network Protocol & Service IP, TCP, UDP, STP, RSTP, IGMP, IEEE 802.1p, IEEE 802.1Q, SNMP
Ethernet Port Total ports: 16 port(s)
PoE: 16 port(s), Ethernet (10/100 Base-T), RJ-45 connector

General

PoE Output Maximum 30 Watts per port
PoE Power Budget Maximum 220 W
Power Source AC 100-240V
Weight 2550g (5.64lb)
Dimensions (W x H x D): 440mm x 44.5mm x 200mm (17.32" x 1.75" x 7.87")
Rack Space: 1U
Operating Temperature 0°C ~ 50°C (32°F ~ 122°F)
Remote Access Web Client
Approvals CE, FCC
Warranty 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty
PoE Standard IEEE 802.3af, IEEE 802.3at
Storage Temperature -10 °C ~ 70 °C (14 °F ~ 158 °F)

Photo Indication

  1. Reset Button
  2. LED Indicators
  3. PoE Ports
  4. Gigabit TP/SFP Combo Port
  5. Power Switch
  6. Power Connector

PLANET FGSW-1816HPS 16-Port 802.3at PoE Switch (PoE Budget 220W)
