ACTi

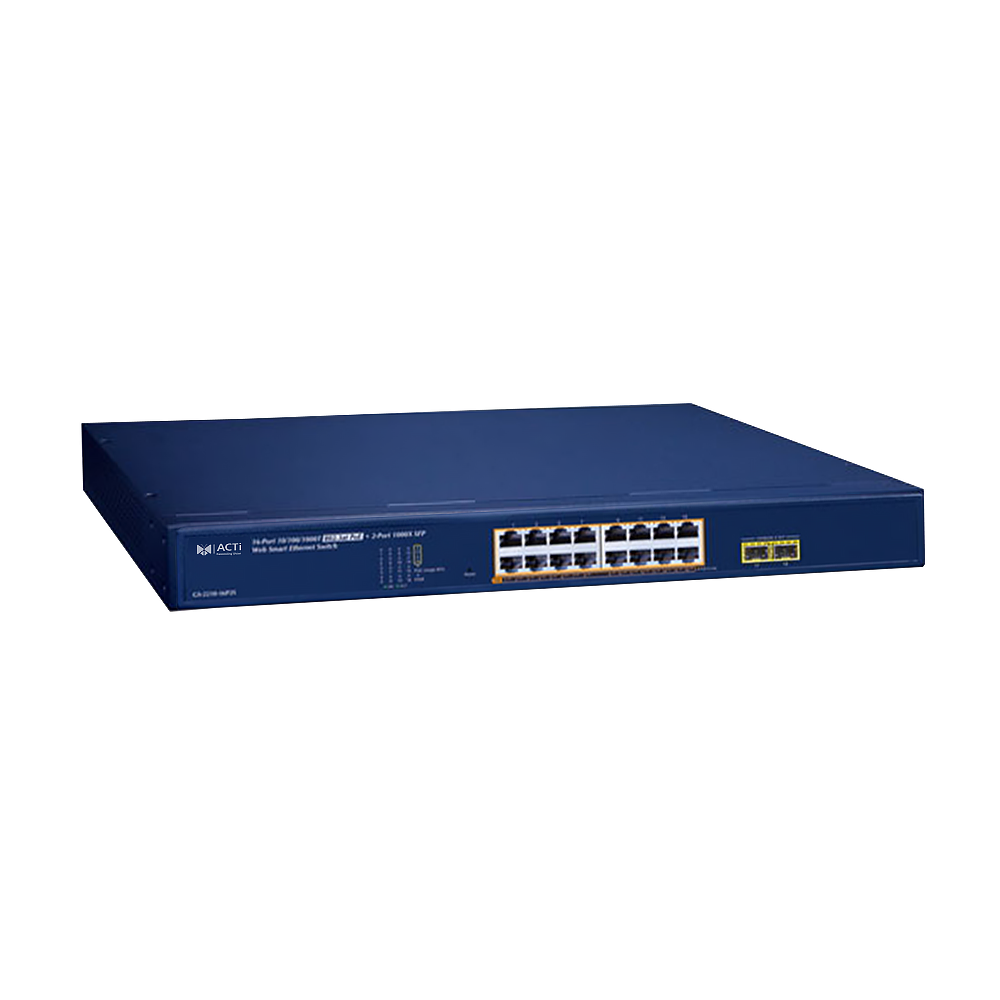

ACTi PPSW-3101 16-Port Gigabit 802.3at Managed PoE Switch (PoE Budget 240W)
Quantity:
Choose options
Quantity:
| Original Manufacturer | PLANET |
| Product Type | Data Switch |
| Original Model | GS-2210-16P2S |
| Description | 16-Port Gigabit 802.3at Managed PoE Switch (PoE Budget 240W) |
| Switch Class | Layer 2 |
| Switch Architecture | Store-and-Forward |
Switch Performance
| Switching Capacity | 36Gbps, Non-Blocking |
| Forwarding Rate | 26.78Mpps |
| MAC Address Table | 8K |
| Packet Buffer | 4.1 megabits |
| Flow Control | IEEE 802.3x pause frame for full-duplex; Back pressure for half-duplex |
| Jumbo Frame | 10K |
Network
| Network Protocol & Service | IPv4, IGMP, IEEE 802.1P, IEEE 802.1Q, QoS, DHCP, NTP, HTTP, ICMP, TFTP, Telnet |
| Ethernet Port | Total ports: 18 port(s) PoE: 16 port(s), Ethernet (10/100/1000 Base-T), RJ-45 connector 2 x Ethernet (100/1000 Base-X), SFP connector |
System
| Managed | Yes (Layer 2 Managed) |
| Management Features | Web browser, Telnet, SSHv2 Secure CLI, SNMP (v1, v2c, v3) |
General
| PoE Standard | IEEE 802.3af, IEEE 802.3at |
| PoE Output | Maximum 32 Watts per port |
| PoE Power Budget | Maximum 240 W |
| Power Source | AC 100-240V |
| Weight | 1732g (3.82lb) |
| Dimensions | (W x H x D): 440mm x 44mm x 207mm (17.32" x 1.73" x 8.15") Rack Space: 1U |
| Fan | Yes, 2 fan(s) |
| Operating Temperature | 0°C ~ 50°C (32°F ~ 122°F) |
| Storage Temperature | -10 °C ~ 70 °C (14 °F ~ 158 °F) |
| Operating Humidity | 5% - 95% RH, non-condensing |
| ESD Protection | Contact Discharge: 6KV, Air Discharge: 8KV |
| Approvals | CE Class A, FCC Class A |
| Color | Deep Blue |
| Material | Metal |
| Warranty | 1 Year(s) |
16-Port Gigabit 802.3at Managed PoE Switch (PoE Budget 240W)
