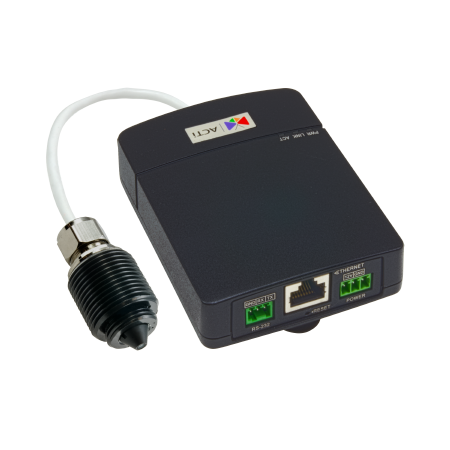

ACTi Q112 5MP Indoor Pinhole Covert Network Camera

Discontinued - Recommended Replacement: Q115 (MPI), Q113

ACTi Q112 Features:

• Image Sensor: 1/3.2" Progressive Scan CMOS
• Effective Pixels: 2592(H) X 1944(V) (5.04 MP)
• Day / Night: No
• Low Light Sensitivity: Standard
• Minimum Illumination: Color: 0.1 lux at F2.5 (30 IRE, 2400°K)
• Mechanical IR Cut Filter: No
• Focal Length / Aperture: Fixed focal, f3.7mm / F2.5
• Iris: Fixed iris
• Focus: Fixed focus
• Cable Type: RJ12 connector up to 12m from main unit
• Horizontal Viewing Angle: 70.2°
• Compression: H.264 (Baseline / Main / High profile), MJPEG
• Max. Frame Rate vs. Resolution: 15 fps at 2592 x 1944; 15 fps at 2048 x 1536; 30 fps at 1920 x 1080; 30 fps at 1280 x 720; 30 fps at 800 x 600; 30 fps at 640 x 480; 15 fps at 320 x 240
• Image Enhancement: Basic WDR (74 dB); White balance: automatic, hold, and manual; Brightness; Contrast; Sharpness (auto); Auto gain control; digital noise reduction; Flickerless; Privacy Mask 4 configurable regions; User defined text on video; Image flip and mirror
• Audio-In: Mic-in and line-in, Terminal block
• Audio-Out: Line-out, Terminal block
• Security: IP address filtering; HTTPs encryption; Password protected user levels; Anonymous login; IEEE802.1X network access control
• Alarm Trigger: Video motion detection (3 regions); External device through digital input; Sound detection
• Alarm Response: Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video or snapshot to FTP; Activate external device through digital output
• Local Storage: MicroSDHC/MicroSDXC memory card slot (card not included)
• Power Source / Consumption: PoE Class 2 (IEEE802.3af) / 4.32 W; DC 12V (adapter not included) / 3.6 W
• Weight: 0.583 kg (1.285 lb)
• Dimensions (L x W x H): 100.33mm x 75mm x 25.5mm (3.95" x 2.95" x 1")
• Environmental Casing: Vibration proof (EN50155)
• Operating Temperature: -30°C ~ 60°C (-22°F ~ 140°F)
