ACTi Q22-K1

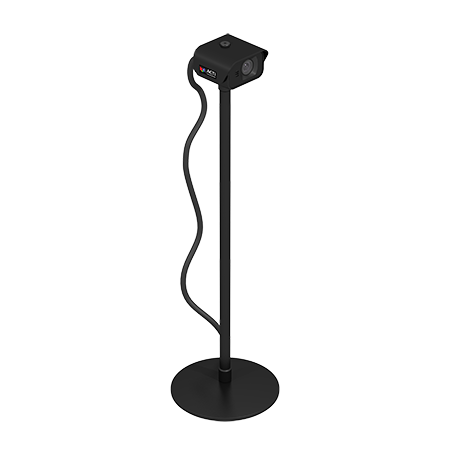

ACTi Q22-K1 2MP Outdoor Micro Box Network Camera

ACTi

ACTi Q22-K1 2MP Outdoor Micro Box Network Camera

Sale price$680.70
Discontinued
SKU: Q2-K1

Contact

ACTi Q22-K1 Features

  • Image Sensor: 1/2.8" Progressive Scan CMOS
  • Effective Pixels: 1944(H) x 1224(V) (2.38 MP)
  • Day / Night: No
  • Low Light Sensitivity: Superior
  • Minimum Illumination: Color: 0.1 lux at F2.2 (30 IRE, 2400°K)
  • Mechanical IR Cut Filter: No
  • Focal Length / Aperture: Fixed focal, f2.55mm / F2.2
  • Iris: Fixed iris
  • Focus: Fixed focus
  • Cable Type: RJ12 connector up to 3m from main unit
  • Horizontal Viewing Angle: 110.3° (overview area), 67.3° (high detail area)
  • Compression: H.264 (Baseline / Main / High profile), MJPEG
  • Max. Frame Rate vs. Resolution: 30 fps at 1920 x 1080; 30 fps at 1280 x 720; 30 fps at 800 x 600; 30 fps at 640 x 480; 15 fps at 320x240
  • Image Enhancement: Basic WDR (75 dB); White balance: automatic, hold, and manual; Brightness; Contrast; Sharpness (auto); Auto gain control; 2D+3D digital noise reduction; Flickerless; Privacy Mask 4 configurable regions; User defined text on video; Image flip and mirror
  • Audio-In: Built-in Microphone
  • Audio-Out: Line-out, Terminal block
  • Security: IP address filtering; HTTPs encryption; Password protected user levels; Anonymous login; IEEE802.1X network access control
  • Alarm Trigger: Video motion detection (3 regions); External device through digital input; Sound detection
  • Alarm Response: Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Save video to local storage; Upload video or snapshot to FTP; Activate external device through digital output
  • Local Storage: MicroSDHC/MicroSDXC memory card slot (card not included)
  • Power Source / Consumption: PoE Class 2 (IEEE802.3af) / 4.32 W; DC 12V (adapter not included) / 3.6 W
  • Weight (Camera / Main Unit): 0.465 kg (1.025 lb) / 0.195 kg (0.43 lb)
  • Dimensions (L x W x H): 100.33mm x 75mm x 25.5mm (3.95" x 2.95" x 1")
  • Environmental Casing: Vibration proof (EN50155)
  • Operating Temperature: -30°C ~ 60°C (-22°F ~ 140°F)
