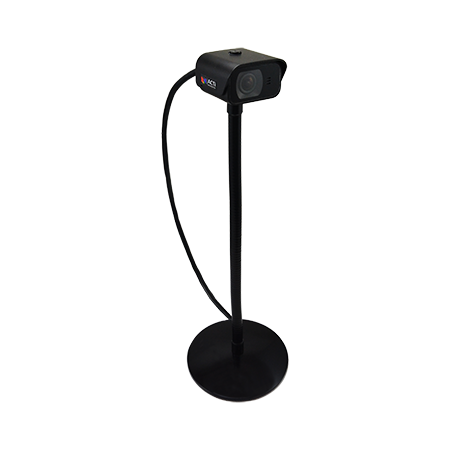

ACTi Q22-K1 2MP Outdoor Micro Box with Basic WDR, SLLS, Fixed lens, f2.55mm/F2.2
ACTi Q22-K1 2MP Outdoor Micro Box with Basic WDR, SLLS, Fixed lens, f2.55mm/F2.2 (HOV:110.3°

ACTi

ACTi Q22-K1 2MP Outdoor Micro Box with Basic WDR, SLLS, Fixed lens, f2.55mm/F2.2 (HOV:110.3°

$645.33 $745.00
Save $99.67
SKU: Q22-K1
Quantity:
Link to Manufacturer's Page

Contact

  • 2 Megapixel
  • Fixed Lens with f2.55mm/F2.2
  • Basic WDR
  • Super wide angle
  • Event trigger, response and notification

Device

Product Type Micro Box
Maximum Resolution 2MP
Application Environment Outdoor
Image Sensor Progressive Scan CMOS
Sensor Size 1/2.8 "
Effective Pixels 1944(H) X 1224(V) (2.38 MP)
Day / Night No
Low Light Sensitivity Superior
Minimum Illumination Color: 0.1 lux at F2.2 (50 IRE)
Mechanical IR Cut Filter No
IR LED No
Horizontal Resolution (TV Lines) 1100 TVL
S/N Ratio 52 dB

Lens

Focal Length Fixed focal, f2.55mm
Aperture F2.2
Iris Fixed iris
Focus Fixed focus
Lens Mount RJ12 connector up to 3m from main unit
Horizontal Viewing Angle 110.3°
Vertical Viewing Angle 61.3°

Video

Compression H.264 (Baseline/ Main/ High profile), MJPEG
Maximum Frame Rate vs. Resolution 30 fps at 1920 x 1080
30 fps at 1280 x 720
30 fps at 800 x 600
30 fps at 640 x 480
15 fps at 320 x 240
Multi-Streaming Simultaneous dual streams based on two configurations
Bit Rate 28Kbps - 6Mbps (per stream)
Bit Rate Mode Constant, Variable
Wide Dynamic Range Basic WDR (75 dB)
Digital Noise Reduction DNR
Privacy Mask 4 configurable regions
On-Screen Graphics Yes
Server-based Analytics Object Line Counting, People Counting, Face Detection, Object Based Motion Detection, Tamper, Object Line Crossing Detection, Object Enter Area Detection, Missing Object Detection, Unattended Object Detection, Smoke Detection, Heat Map, Dwell Time, Direction Detection, Automatic License Plate Recognition, People Queue Detection, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy)

Audio

Audio Type 2-way, Built-in Microphone, Mic-in, Line-out
Audio Compression 8 kHz, 16 bit encoding, Mono, PCM, G.711

Network

Network Protocol & Service IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X
Ethernet Port 1 x RJ-45 connector
Security IP address filtering, HTTPS encryption, Password protected user level, Anonymous login, IEEE 802.1X network access control

Event

Event Trigger Video motion detection (3 regions), External device through digital input, Sound detection,
Event Response Notify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Play the audio file, Push notification to mobile device, Save video to local storage, Upload video or snapshot to FTP server, Upload video to NVR server, Activate external device through digital output

Integration

Unified Solution Fully compatible with ACTi software
GPS Position Manual setting
ONVIF Compliant Yes, Profile S, Profile G, Profile T* (To be available through future firmware upgrade), Profile Q
GB28181 Compliant Yes
Web Browser IE 11
Auto Firmware Upgrade Yes

Interface

Local Storage MicroSDHC, MicroSDXC memory card slot (card not included)
Digital Input/Output 1/1

General

Power Source DC 12V, PoE Class 2 (IEEE802.3af)
Power Consumption 6.49 W (PoE)
Dimensions Main Unit
(W x H x D): 75mm x 100.33mm x 30mm (3.0" x 4.0" x 1.2")
Lens Unit
(W x H x D): 57.2mm x 34.1mm x 56.5mm (2.3" x 1.3" x 2.2")
Environmental Casing Weatherproof (IP68), (for Camera module and Lens cable), Vandal proof metal casing (IK10), Q22: Vibration proof (EN50155)
Bundled Accessories Gooseneck Bracket (PMAX-1110), Desktop Mount (PMAX-0901)
Mount Type Desktop Mount, Edge Clamp, Bracket, Pole Mount
Starting Temperature -20°C ~ 50°C (-4°F ~ 122°F)
Operating Temperature -30°C ~ 60°C (-22°F ~ 140°F)
Approvals Camera: CE, FCC, IP68, NEMA 4X, (for Camera module and Lens cable), EN50155, IK10 (metal casing), UL (for optional PoE injector and power adapter)
Warranty 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty

Photo Indication

  1. Camera Module
  2. Built-in Microphone
  3. LED Indicators
  4. Memory Card Slot
  5. Digital Input/Output
  6. Camera Input
  7. Audio Out
  8. Ethernet Port
  9. Serial Port
  10. DC 12V Power Input
  11. Reset Button

2MP Outdoor Micro Box with Basic WDR, SLLS, Fixed lens, f2.55mm/F2.2 (HOV:110.3°), H.264, 1080p/30fps, DNR, Built-in Microphone, MicroSDHC/MicroSDXC, PoE/DC12V, IP68 (for Lens module and Lens cable), IK10 (metal casing), EN50155, DI/DO, RS-232, Includes Q22 camera, PMAX-1110 and PMAX-0901 camera mounts
