ACTi Q61

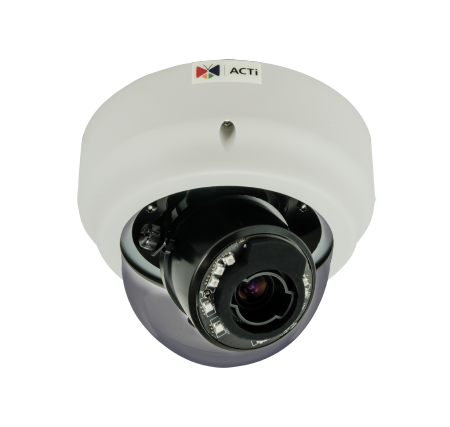

ACTi Q61 2MP 3x Zoom Indoor Dome Network Camera with Counting Analytics

ACTi

ACTi Q61 2MP 3x Zoom Indoor Dome Network Camera with Counting Analytics

$1,000.00
Discontinued
SKU: Q61
Link to Manufacturer's Page

Contact

ACTi Q61 Features:

  • Image Sensor: 1/2.8" Progressive Scan CMOS
  • Effective Pixels: 1944(H) X 1224(V) (2.38 MP)
  • Day / Night: Yes
  • Low Light Sensitivity: Superior
  • Minimum Illumination: Color: 0.1 lux at F1.3 (30 IRE, 2400°K); B/W: 0 lux (IR LED on)
  • Mechanical IR Cut Filter: Yes
  • IR LED: Adaptive IR LED x 10 (850nm)
  • IR Working Distance: 4 m (0 lux, 30 IRE, Gain 255, Auto shutter mode)
  • Focal Length / Aperture: Zoom, f3 - 9mm / F1.3 - 2.2
  • Zoom Ratio / Speed: 3x optical / 1.25 sec (wide to tele)
  • Iris: DC iris
  • Focus: Auto focus
  • Lens Mount: Board mount
  • Horizontal Viewing Angle: 102.1° ~ 36°
  • Compression: H.264 (Baseline / Main / High profile), MJPEG
  • Max. Frame Rate vs. Resolution: 60 fps at 1920 x 1080; 60 fps at 1280 x 720; 30 fps at 640 x 480; 30 fps at 320 x 240
  • Image Enhancement Extreme WDR (145 dB); White balance: automatic, hold and manual; Brightness; Digital image stabilizer; Contrast; Sharpness (auto); Auto gain control; 2D + 3D digital noise reduction; Flickerless; Defogging; Privacy Mask 20 Configurable regions; User defined text on video; Image flip, mirror and rotation (90°)
  • Built-in Analytics: People Counting, Object Counting, Object Based Motion Detection, Tamper, Digital Image Stabilizer
  • Audio-In: Terminal block
  • Audio-Out: Terminal block
  • Security: IP address filtering; HTTPs encryption; Password protected user levels; Anonymous login; IEEE802.1X network access control
  • Alarm Trigger: Video motion detection (10 regions); External device through digital input; Sound detection
  • Alarm Response: Notify control Center; Change camera settings; Command other devices; E-mail notification with snapshots;
  • Save video or snapshot to local storage; Upload video or snapshot to FTP server; Activate external device through digital output
  • Local Storage: MicroSDxC memory card slot (card not included)
  • Power Source / Consumption: PoE Class 3 (IEEE 802.3af) / 12 W; DC 12V (adapter not included) / 11 W
  • Weight: 709 g (1.563 lb)
  • Dimensions (Ø x H): 146 mm x 107 mm (5.7'' x 4.2'')
  • Environmental Casing: Vandal proof (IK09); Transparent dome cover
  • Operating Temperature: -20°C ~ 50°C (-4°F ~ 122°F)
