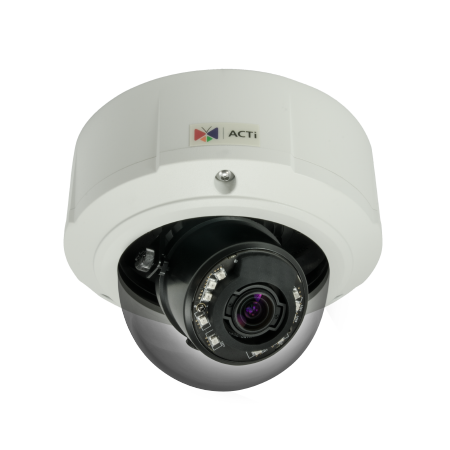

ACTi Q81 Features:
- Image Sensor: 1/2.8" Progressive Scan CMOS
- Effective Pixels: 1944 (H) x 1224 (V) (2.38 MP)
- Day / Night: Yes
- Low Light Sensitivity: Superior
- Minimum Illumination: Color: 0.1 lux at F1.3 (30 IRE, 2400°K); B/W: 0 lux (IR LED on)
- Mechanical IR Cut Filter: Yes
- IR LED: Adaptive IR LED x 10 (850nm)
- IR Working Distance: 4 m (0 lux, 30 IRE, Gain 255, Auto shutter mode)
- Focal Length / Aperture: Zoom, f3 - 9mm / F1.3 - 2.2
- Zoom Ratio / Speed: 3x optical / 1.25 sec (wide to tele)
- Iris: DC iris
- Focus: Auto focus
- Lens Mount: Board mount
- Horizontal Viewing Angle: 102.1° ~ 36°
- Compression: H.264 (Baseline / Main / High profile), MJPEG
- Max. Frame Rate vs. Resolution: 60 fps at 1920 x 1080; 60 fps at 1280 x 720; 30 fps at 640 x 480; 30 fps at 320 x 240
- Image Enhancement Extreme WDR (145 dB); White balance: automatic, hold and manual; Brightness; Contrast; Sharpness (auto); Auto gain control; 2D + 3D digital noise reduction; Flickerless; Defogging; User defined text on video; Image flip, mirror and rotation (90° and 270°); Privacy Mask 20 Configurable regions
- Built-in Analytics: People Counting, Object Counting, Object Based Motion Detection, Tamper, Digital Image Stabilizer
- Audio-In: Terminal block
- Audio-Out: Terminal block
- Security: IP address filtering; HTTPs encryption; Password protected user levels; Anonymous login; IEEE802.1X network access control
- Alarm Trigger: Video motion detection (10 regions); External device through digital input; Sound detection
- Alarm Response: Notify control Center; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video or snapshot to FTP server; Activate external device through digital output
- Local Storage: MicroSDxC memory card slot (card not included)
- Power Source / Consumption: PoE Class3 / 12W; DC12V / 11W
- Weight: 1266 g (2.79 lb)
- Dimensions (Ø x H): 152 mm x 114.5 mm (6.0'' x 4.5'')
- Environmental Casing Weatherproof: (IP67 rated); Vandal proof (IK10); Transparent dome cover
- Operating Temperature: -40°C ~ 50°C (-40°F ~ 122°F)
