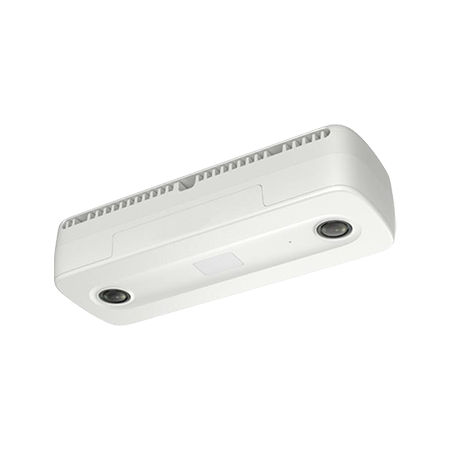

ACTi Q963 2MP People Counting Metadata Camera with D/N, IR, SLLS, 2 Fixed lenses, f2.0mm/F
Quantity:
Device
| Product Type | Metadata Camera |
| Maximum Resolution | 2MP |
| Product Application | People Counting |
| Application Environment | Indoor |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/2.7 " |
| Day / Night | Yes |
| Low Light Sensitivity | Superior |
| Minimum Illumination | Color: 0.005 lux; B/W: 0.001 lux |
| Mechanical IR Cut Filter | Yes |
| IR LED | IR LED (850 nm) |
| IR Working Distance | 6m |
| Electronic Shutter | 1/25-1/10000 second (auto mode) |
Lens
| Number of Lenses | 2 Lenses |
| Focal Length | Fixed focal, f2mm |
| Aperture | F2.25 |
| Iris | Fixed iris |
| Lens Mount | Board mount |
| Horizontal Viewing Angle | 104.5° |
| Vertical Viewing Angle | 70.5° |
Video
| Compression | H.265, H.264 (Baseline/ Main/ High profile) |
| Maximum Frame Rate vs. Resolution | 30 fps at 1920 x 1080 30 fps at 1280 x 720 30 fps at 704 x 480 30 fps at 640 x 480 |
| Multi-Streaming | Simultaneous dual streams |
| Bit Rate | 32Kbps - 16Mbps (per stream) |
| Wide Dynamic Range | Basic WDR |
| Digital Noise Reduction | 3D DNR |
| Privacy Mask | Yes |
| Counting Technology | 3D |
| Built-in Analytics | People Counting (3D Counting, Line Counting, Region Counting), People Line Counting, People Area Counting, Tampering Detection, (Offering 100 days of counting data storage.) |
| IVS performance | Certain algorithms may require more computing power, which may limit the number of algorithms that can be concurrently used in the camera. Please test the actual performance before using in a project. |
Audio
| Audio Type | 2-way, Built-in Microphone, Line-in, Line-out |
Network
| Network Protocol & Service | IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, Bonjour, UPnP, QoS, IEEE 802.1X, SNMP |
| Ethernet Port | 1 x Ethernet (10/100 Base-T), RJ-45 connector |
Video Analytics
| Analysis Source Type | Video |
| Metadata Accuracy | Excellent |
Event
| Event Trigger | Tampering detection, External device through digital input |
Integration
| Metadata Reporting and Presentation | Fully compatible with ACTi Market Application Suite package (Any customization may require additional NRE fees) |
| ONVIF Compliant | Yes, Profile S, Profile G |
| Web Browser | IE 11 |
Interface
| Serial Port | 1 x RS-485 |
| Audio Interface | Built-in microphone, 1/1, Terminal block |
| Digital Input/Output | 1/1 |
Installation
| Distance to Target (People) | 2.1m - 6m (6.9ft - 19.7ft) |
| Lens Direction & Counting Method (People) | Face Down: Line Counting |
| Installation Recommendation | Installation Height / Width of the Scene 2.1m(6.9ft) / 0.8m (2.6ft) 2.6m(8.5ft) / 2.1m (6.9ft) 3.1m(10.2ft) / 3.4m (11.2ft) 3.6m(11.8ft) / 4.6m (15.1ft) 4.1m(13.5ft) / 5.9m (19.4ft) 4.6m(15.1ft) / 5.4m (17.7ft) 5.1m(16.7ft) / 6.3m (20.7ft) 5.6m(18.4ft) / 7.3m (24.0ft) 6.0m(19.7ft) / 8.1m (26.6ft) |
General
| Power Source | DC 12V (adapter not included), PoE Class 3 (IEEE802.3af) |
| Power Consumption | 8 W (DC), 8.3 W (PoE) |
| Weight | 435g (1lb) |
| Dimensions | (W x H x D): 168mm x 61mm x 36mm (6.6" x 2.4" x 1.4") |
| Bundled Accessories | Surface mount |
| Mount Type | Surface |
| Operating Temperature | -30°C ~ 45°C (-22°F ~ 113°F) |
| Operating Humidity | 0% - 95% RH |
| Warranty | 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
Dimension Diagram
Unit: mm [inch]
2MP People Counting Metadata Camera with D/N, IR, SLLS, 2 Fixed lenses, f2.0mm/F2.25 (HOV:104.5°), H.265/H.264, 1080p/30fps, 3D DNR, Audio, PoE/DC12V, DI/DO, RS-485
