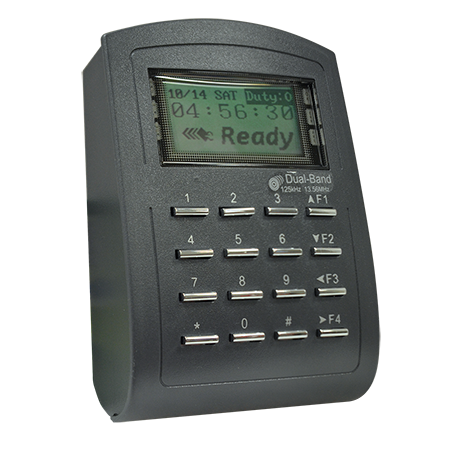

ACTi R11C-30 Dual Band LCD Card Reader and Controller with 16,000 Card Database, Networking,
Quantity:
LCD Access Controller with 16,000 Card Database
- RFID Card Detection
Device
| Product Type | Reader and Controller |
| Product Application | RFID Card Detection |
| Description | LCD Access Controller with 16,000 Card Database |
Lens
Video
| Built-in Analytics | RFID Recognition |
Video Analytics
| Analysis Source Type | Text |
| Metadata Accuracy | Excellent |
Event
| Event Log | 32,000 |
Access Control Functionality
| Access Mode | Card only |
RFID Card
| Communication Frequency | 125 KHz, 13.56 MHz |
| RFID Standard | [125 kHz] EM Standard (ISO 11784, ISO 11785) [13.56 Mhz] ISO 14443A NFC Type 5, ISO/IEC 15693 |
| Reading Range | [125 kHz] 5-15cm [13.56 MHz] 2-5cm |
| RFID Options | EM, MIFARE, NFC |
Storage
| User Database | Card Capacity: 16,000 |
General
| Power Source | DC 10-24V (adapter not included) |
| Power Consumption | 5 W (DC) |
| Weight | 242g (0.534lb) |
| Warranty | 1 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
Photo Indication
- LCD Display
- Keypad / Card Reader
- Connectors
- Tamper Switch
Dimension Diagram
Unit: mm [inch]
Dual Band LCD Card Reader and Controller with 16,000 Card Database, Networking, Keypad, DC 10-24V, IP54, DI (Egress x 2, Door Contact x 2), Relay Output, Wiegand, RS-485
