ACTi

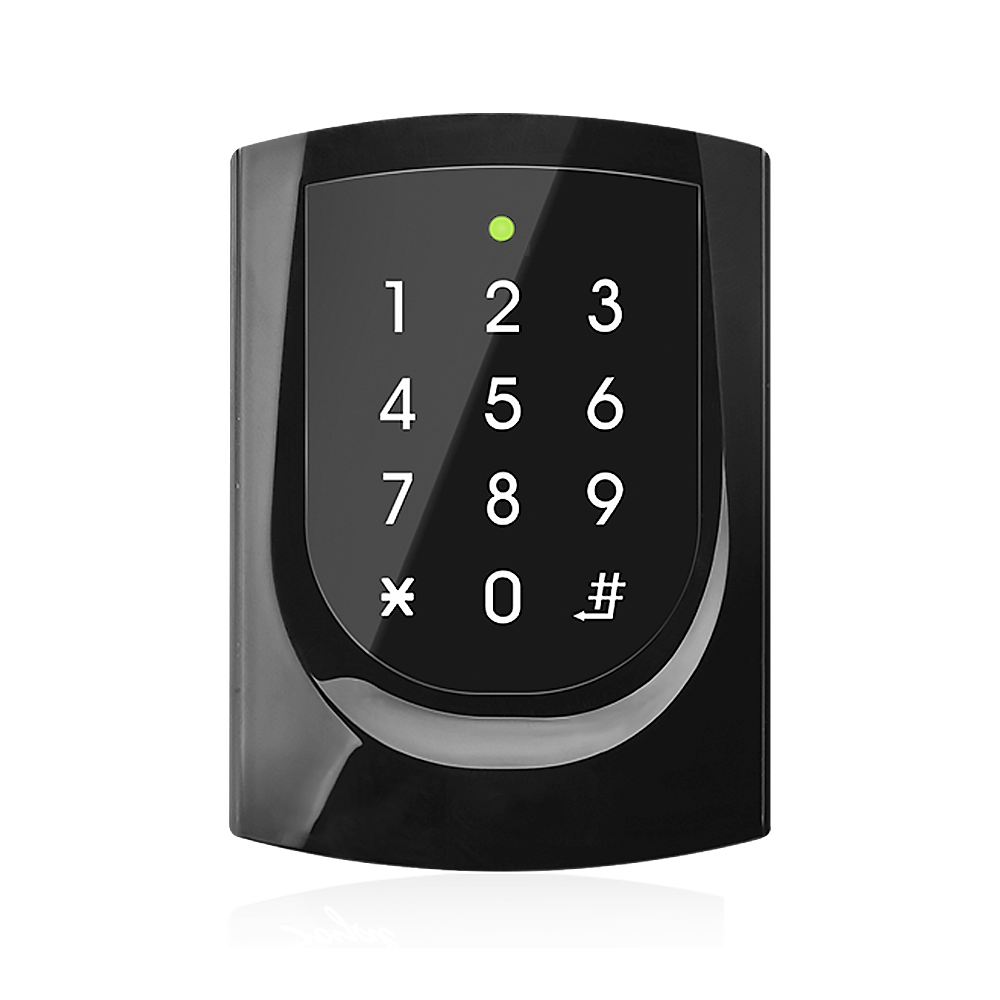

ACTi R11C-310 RFID Card Detection RFID Reader and Controller with Bundled 16000 Card Database
Quantity:
Choose options
Quantity:
| Product Type | Reader and Controller |
| Device Type | Access Controller RFID Reader |
| Product Application | RFID Card Detection |
| Application Environment | Indoor |
Video
| Built-in Analytics | RFID Recognition |
Network
| Ethernet Port | 1 x Ethernet (10/100 Base-T), RJ-45 connector |
Event
| Event Log | 32,000 |
Access Control Functionality
| Access Mode | Card only, Card or Password, Card and Password |
| Wiegand Format | Wiegand 26-64 |
| Wiegand Output | Wiegand Data 0, Data 1 and Arming Output, Duress Output share the same terminal. |
RFID Card
| RFID Frequency | 125 KHz, 13.56 MHz |
| RFID Standard | [125 kHz] ISO 18000-2: EM4001 and EM4095 compatible [13.56 Mhz] ISO 14443 Mifare DESFire EV1, EV2 ISO 15693 FeliCa |
| Reading Range | 2-15cm |
| RFID Options | EM, Mifare |
Storage
| User Database | Card Capacity: 16000 |
Interface
| Button | Illuminated touch-panel keypad |
| Serial Port | 1 x RS-485 |
| Digital Input | Egress x 2, Door contact x 2 |
| Relay Output | Door lock x 1 |
| Alarm Output | Open Collector x 1 |
| Wiegand Port | Wiegand Data 0 Intput x 1, Wiegand Data 1 Intput x 1, Red LED Output x 1, Green LED Output x 1, Beeper Output x 1 |
| Open Collect Output | Arming Output x 1, Security Trigger Signal x 1, Duress Output x 1 |
| Tamper Switch | 1 Form C/ 1000mA / 30VDC |
| Indicator | LED, Buzzer |
General
| Power Source | DC 9-24V (adapter not included) |
| Power Consumption | 5 W (DC) |
| Dimensions | (W x H x D): 110mm x 79mm x 26mm (4.33" x 3.11" x 1.02") |
| Operating Temperature | -20°C ~ 70°C (-4°F ~ 158°F) |
| Operating Humidity | 0% - 90% RH, non-condensing |
| Color | Black |
| Material | Plastic (PC) |
| Real-time Clock (RTC) | Yes |
| Warranty | 1 Year(s) |
Dual Band Card Wiegand Reader and Controller with 16,000 Card Database, TCP/IP, Keypad, DC 12-24V, IP55, DI (Egress x 2, Door Contact x 2), Alarm Output, Wiegand, RS-485
