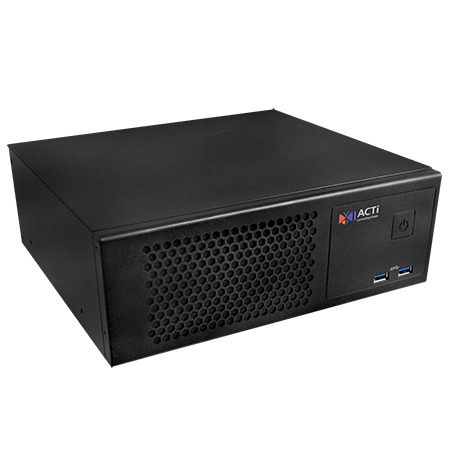

ACTi RAS-100 100-Channel 1-Bay Mini Standalone Retail Application Suite with HDMI, DVI
ACTi RAS-100 100-Channel 1-Bay Mini Standalone Retail Application Suite with HDMI, DVI and Di

ACTi

ACTi RAS-100 100-Channel 1-Bay Mini Standalone Retail Application Suite with HDMI, DVI and Di

$2,285.60
Discontinued
SKU: RAS-100
Link to Manufacturer's Page

Contact

  • Total Traffic Performance vs Weather
  • Total Traffic Performance vs Gender/Age
  • Total Traffic Performance vs Weather vs Gender/Age
  • Gender distribution pie chart
  • Age distribution bar chart
  • Export Report to Excel
  • Customizable layout for media display
  • 1-bay Mini Standalone Market Application Suite
  • Maximum Number of Video Devices: 100
  • Free License: 4 (for LMAS4000 license)
  • Location-based management with e-Map
  • Recommended add-on 1TB storage to keep stored face recognition data at least 7 days
  • Intel Core i5-6500TE, 8GB

Device

Product Type Standalone Market Application Suite
Product Application Retail Application
Maximum Number of Video Devices 100

Hardware

CPU Intel Core i5-6500TE
RAM 8GB

License

License required Yes
Free License 4 (for LMAS4000 license)

Market Application Suite Features

Main Features ● Total Traffic Performance vs Weather
● Total Traffic Performance vs Gender/Age
● Total Traffic Performance vs Weather vs Gender/Age
● Gender distribution pie chart
● Age distribution bar chart
● Export Report to Excel
● Customizable layout for media display
Device Health Monitoring ● MAS Server Health Monitoring
System Management ● User Permission Management
● Store Name Customization
● Floor Map Customization
● Camera Configuration
● MAS Server Configuration
● IVS Setting
Traffic Performance Number of people going in and out from specific entrance or exit for defined period of time. The results from multiple entrances can be compared to define the best time and location for future in-store campaigns.
Total Traffic Performance vs Weather Total traffic performance can be mapped with weather information for correlation analysis to predict future trends of traffic based on weather forecast.
Total Traffic Performance vs Gender/Age Total traffic performance can be mapped with age and gender detection information to segment the incoming traffic for more detailed analysis.
Total Traffic Performance vs Weather vs Gender/Age Gender and Age based traffic performance can be mapped with weather information for correlation analysis to predict future trends of traffic based on weather forecast.

Map

e-Map Yes

Audio

Audio Type 2-way, Mic-in, Line-out

Network

Ethernet Port Total ports: 2 port(s)
Non-PoE: 2 port(s), Ethernet (1000 Base-T), RJ-45 connector

System

Server Operating System Windows 10 IoT
USB 6-Port USB 3.0

Storage

System Drive SSD, 128GB
Storage Bay SATA, Max. 1 Disk(s) (optional for project request)
Recommended add-on 1TB storage to keep stored face recognition data at least 7 days
HDD Size 3.5"

Interface

Serial Port 2 x RS-232
Audio Interface 1/1, 3.5mm Phone Jack
External Storage Interface eSATA, iSCSI
Local Access Keyboard & mouse
Local Display Interface HDMI x 1, DVI x 1, Display Port x 1,

General

Power Source AC 100-240V
Weight 3172g (6.993lb)
Dimensions (W x H x D): 255mm x 88mm x 230mm (10" x 3.5" x 9.1")
Bundled Accessories Power cord
Fan Yes
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Operating Humidity 0% - 85% RH
Approvals CE, FCC
Color Black
Warranty 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty

Photo Indication

  1. Power Button
  2. USB 3.0 Port (2)
  3. Display Port
  4. Ethernet Port (LAN, WAN)
  5. Serial Port
  6. Audio Output
  7. HDMI Port
  8. USB 3.0 Ports
  9. DVI Port
  10. Audio Input
  11. eSATA Port

Dimension Diagram

Unit: mm [inch]

100-Channel 1-Bay Mini Standalone Retail Application Suite with HDMI, DVI and Display port, 4-channel free license included, Supports External Storage (eSATA, iSCSi), 1-Bay (Storage Disks not included), Audio, AC 100-240V
