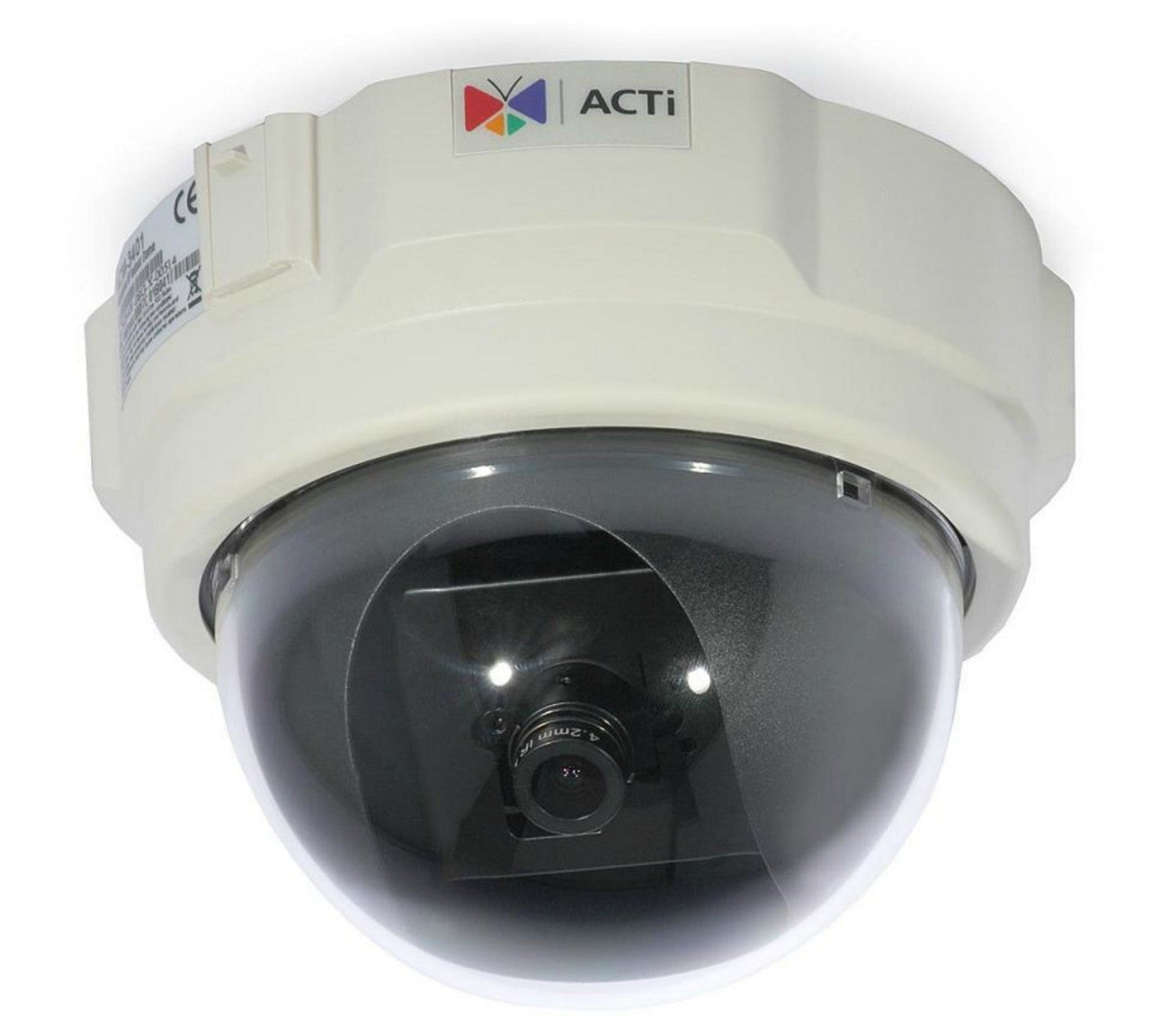

ACTi TCM-3111 H.264 Megapixel IP PoE Fixed Dome Network Camera
ACTi TCM-3111 H.264 Megapixel IP PoE Fixed Dome Network Camera

ACTi

ACTi TCM-3111 H.264 Megapixel IP PoE Fixed Dome Network Camera

$290.00
Discontinued
SKU: TCM-3111
Link to Manufacturer's Page

Contact

Discontinued, replaced by the D51, E51, B51, B53, B54.

ACTi TCM-3111 Features

  • Resolution: 1280 x 1024
  • Image Sensor: Progressive Scan CMOS
  • Sensor Size: 1/3” (4.8 x 3.6 mm)
  • Day/Night: Yes (electronic)
  • Mechanical IR Cut Filter: No
  • Minimum Illumination: Color: 0.5 lux at F1.0 (30 IRE, 2400°K); B/W: 0.5 lux
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: Fixed
  • Focal Length: 2.8 mm
  • Iris: Fixed
  • Focus: Fixed
  • Field of View: 68.15° Horizontal
  • Compression Styles: H.264, MPEG-4 SP, MJPEG
  • Frame Rate: 18 fps at 1280 x 1024 (SXGA); 26 fps at 1280 x 720 (HD 720p); 30 fps at 640 x 480 (VGA); 30 fps at 320 x 240 (QVGA); 30 fps at 160 x 112 (QQVGA)
  • Image Settings: White balance: automatic, hold, predefined and manual; Brightness; Saturation; Contrast; Sharpness; Auto exposure: automatic, predefined and manual; Flickerless
  • Privacy Mask: Yes, 4 configurable regions
  • Built-in Microphone: No
  • Audio Capabilities: N/A
  • Alarm/Event Management: Video motion detection (3 regions), Notify control Center; Change camera settings; Command other devices; E-mail notification with snapshots; Upload video, snapshot to FTP server
  • ONVIF: Yes
  • Security: IP address filtering; HTTPS encryption; Password protected user levels; IEEE 802.1X network access control
  • Users: N/A
  • On-board Storage: Yes
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating:
  • Dimensions: 130 mm x 99 mm (5.12” x 3.90”)
  • Weight: 270 g (0.6 lb)
  • Operating Temperature: -10 °C ~ 50 °C (14 °F ~ 122 °F)
  • Operating Humidity: 10% ~ 85% RH
  • Power: PoE Class 2 (IEEE802.3af) / 4.368 W
  • Notes: Also available with 2.8mm lens, please specify when ordering.
