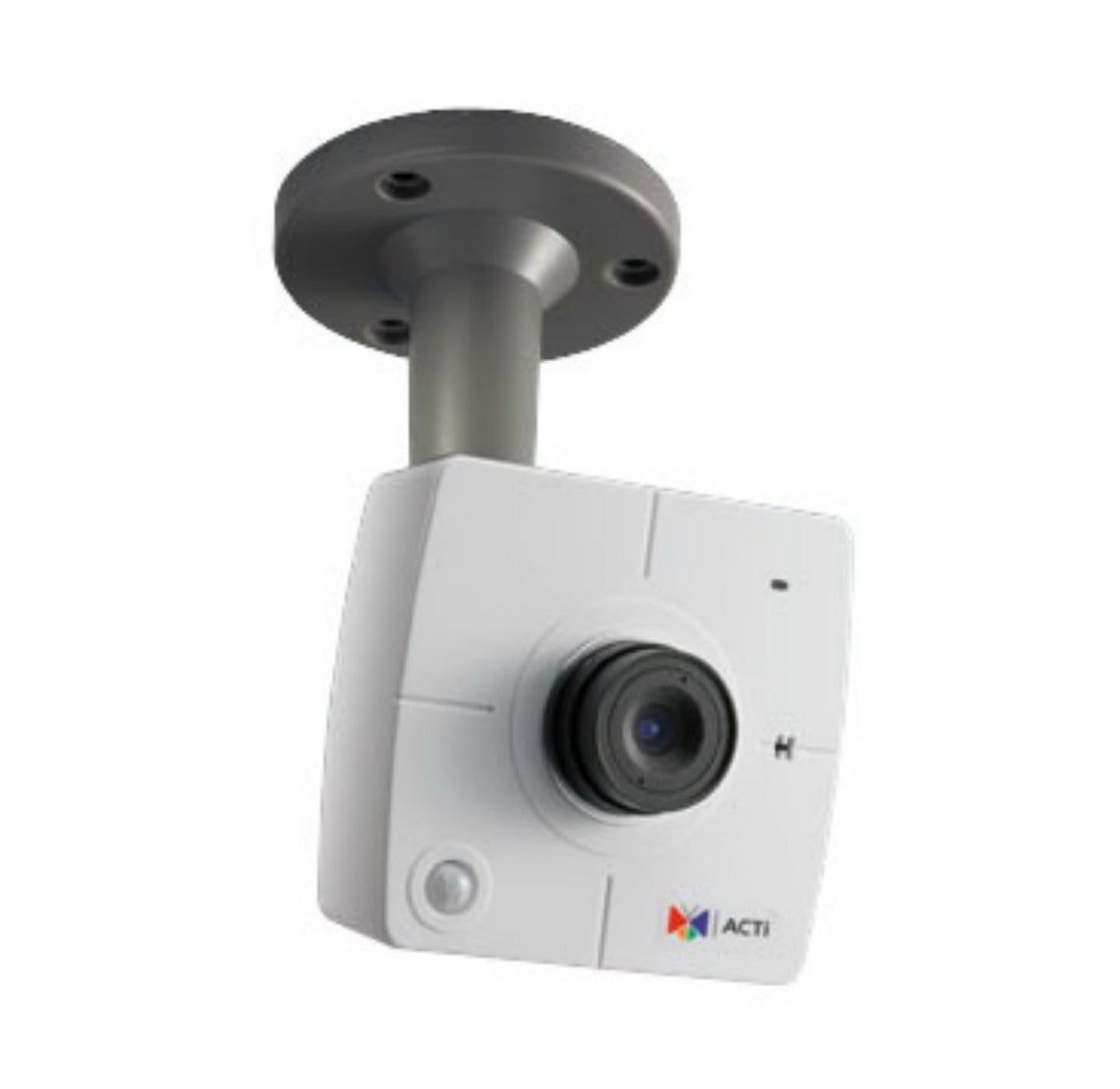

ACTi TCM-4511 Megapixel IP PoE Cube Network Camera
ACTi TCM-4511 Megapixel IP PoE Cube Network Camera


ACTi TCM-4511 Megapixel IP PoE Cube Network Camera

Sale price$175.00
SKU: TCM-4511

Discontinued, replaced by the E11 & E12

ACTi TCM-4511 Features

  • Resolution: 1280 x 1024
  • Image Sensor: Progressive Scan CMOS
  • Sensor Size: 1/3" (4.8 x 3.6 mm)
  • Day/Night: Yes (electronic)
  • Mechanical IR Cut Filter: No
  • Minimum Illumination: Color: 0.5 lux at F1.0 (30 IRE, 2400 °K); B/W: 0.5 lux at F1.0 (30 IRE, 2400 °K)
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: Fixed focal
  • Focal Length: f4.2 mm / F1.8
  • Zoom: N/A
  • Iris: Fixed
  • Focus: Manual
  • Field of View: Horizontal Viewing Angle: 69.2°
  • Compression Styles: H.264, MPEG-4 SP, MJPEG
  • Frame Rate: 18 fps at 1280 x 1024 (SXGA); 26 fps at 1280 x 720 (HD 720p); 30 fps at 640 x 480 (VGA); 30 fps at 320 x 240 (QVGA); 30 fps at 160 x 112 (QQVGA)
  • Image Settings: White balance: automatic, hold, predefined and manual; Brightness; Saturation; Contrast; Sharpness; Automatic gain control; Auto exposure: automatic, predefined and manual; Flickerless
  • Privacy Mask: Yes, 4 configurable regions
  • Built-in Microphone: No
  • Audio Capabilities: N/A
  • Alarm/Event Management: Video motion detection (3 regions), Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Upload video, snapshot to FTP server
  • ONVIF: Yes
  • Security: IP address filtering; HTTPS encryption; Password protected user levels; IEEE 802.1X network access control
  • Users: N/A
  • On-board Storage: Yes
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: N/A
  • Dimensions: 88 mm x 85 mm x 39 mm (3.47" x 3.35" x 1.54")
  • Weight: 150 g (0.331 lb)
  • Operating Temperature: -10 °C ~ 50 °C (14 °F ~ 122 °F)
  • Operating Humidity: 10% ~ 85% RH
  • Power: PoE Class 2 (IEEE802.3af) / 4.512 W
  • Warranty: 2 Years

ACTi TCM-4511 Overview

This is a cutting-edge digital video surveillance camera. It can compress and transmit real time images with outstanding image quality (18 FPS @ SXGA, 1280x1024) through a standard TCP/IP network. This camera is your best choice to build an intelligent IP surveillance system. This device supports 3 compression formats, H.264, MPEG-4 and MJPEG. It brings superior image quality at 18 frames per second up to a resolution of SXGA (1280 x 1024) pixels, and offers up to 26 frames per second in HD720 (1280x720). In VGA (640 x 480) / QVGA / QQVGA the device reaches 30 frames per second. No more external motion sensors are required. You may assign up to 3 video motion detection areas. By tuning the object size and sensitivity, it will reliably detect objects passing though is view. Hardware motion detection also offers better sensitivity and faster response time than software motion detection. To extend the capabilities of the IP Box Camera series, a powerful surveillance program is included in the package for free. Users can easily use an existing PC as a digital video recorder. Scheduled recording and manual recording keep every important video recorded in the local hard disk. Reliable and accurate motion detection with instant warning enables immediate response in every condition. Quick and simple search and playback function lets you easily find the images and video you want. This IP Camera can be integrated or controlled by applications from third party software developers. Software developers can save considerable efforts by using our Streaming Library or ActiveX control. Please contact us for details on integration support.
