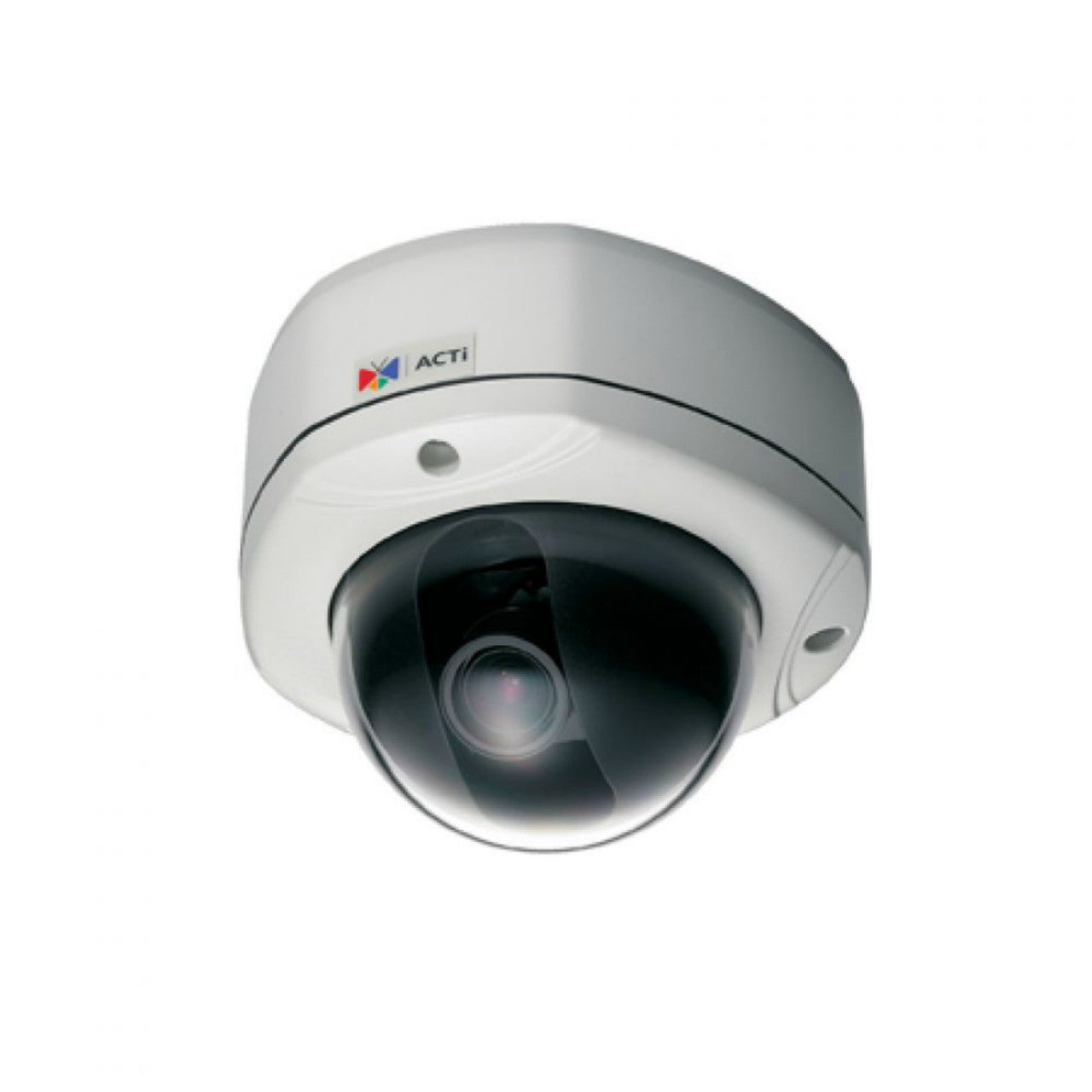

ACTi TCM-7411 1.3MP Varifocal Day/Night  Vandal Outdoor Dome IP Network Camera
ACTi TCM-7411 1.3MP Varifocal Day/Night  Vandal Outdoor Dome IP Network Camera


ACTi TCM-7411 1.3MP Varifocal Day/Night Vandal Outdoor Dome IP Network Camera

Sale price$590.00
SKU: TCM-7411



ACTi TCM-7411 Features

  • Resolution: 1280 x 1024
  • Image Sensor: Progressive Scan CMOS
  • Sensor Size: 1/3" (4.8 x 3.6 mm)
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes
  • Minimum Illumination: Color: 0.5 lux at F1.0 (30 IRE, 2400°K); B/W: 0.05 lux at F1.0 (30 IRE, 2400°K)
  • IR Illuminators: No
  • IR Illuminator Range: n/a
  • Lens Type: Vari-focal
  • Focal Length: f3.3 - 12 mm / F1.6
  • Zoom: N/A
  • Iris: Fixed
  • Focus: Fixed
  • Field of View: Horizontal Viewing Angle: 78.4° - 23.1°
  • Compression Styles: H.264, MPEG-4 SP, MJPEG
  • Frame Rate: 8 fps at 1280 x 1024 (SXGA); 10 fps at 1280 x 720 (HD 720p); 30 fps at 640 x 480 (VGA); 30 fps at 320 x 240 (QVGA); 30 fps at 160 x 112 (QQVGA)
  • Image Settings: Wide Dynamic Range, White balance: automatic, hold, predefined and manual; Brightness; Saturation; Contrast; Sharpness; Automatic gain control; Auto exposure: automatic, predefined and manual; Flickerless
  • Privacy Mask: Yes
  • Built-in Microphone: No
  • Audio Capabilities: Audio in, Audio out
  • Alarm/Event Management: Video motion detection (3 regions); External device through digital input; Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Upload video, snapshot to FTP server; Activate external device through digital output
  • ONVIF: Yes
  • Security: IP address filtering; HTTPS encryption; Password protected user levels; IEEE 802.1X network access control
  • Users: N/A
  • On-board Storage: Yes
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: Weatherproof (IP66 rated); Transparent vandal proof dome cover, up to 659.23 kgF (1453.35 lbF)
  • Dimensions: 151.69 mm x 114.9 mm (6.0" x 4.5")
  • Weight: 1040 g (2.29 lb)
  • Operating Temperature: -30 °C ~ 50 °C (-22 °F ~ 122 °F) for DC 12V; -5 °C ~ 50 °C (23 °F ~ 122 °F) for PoE
  • Operating Humidity: 10% ~ 85% RH
  • Power: PoE Class 3 (IEEE802.3af), DC 12V
  • Warranty: 2 Years

ACTi TCM-7411 Overview

The TCM-7411 is a fixed-dome camera featuring a built-in f3.3 - 12 mm / F1.6 Megapixel vari-focal lens capable of achieving a horizontal viewing angle of 78.4° to 23.1°. Featuring video motion technology, the TCM-7411 automatically notifies the user with an email and a snapshot whenever any activity is identified within the designated area. With its two-way audio system, the TCM-7411 is also capable of recording sounds within the surveillance area while also allowing the user to communicate with anyone in that same area.

Offering a resolution of 18 fps at 1280 x 1024 and the option to choose between H.264, MPEG-4SP and MJPEG compressions with dual streaming capabilities, the TCM-7411 can be used for a variety of purposes. Offering both day and night functioning with its IR cut filter system, the TCM-7411 is capable of recording color video in light levels as low as 0.5 lux at F1.0 and recording black and white video in light levels as low as 0.05 lux at F1.0.

Capable of operating in temperatures ranging from -22°F to 122°F and in relative humidity ranging from 10% to 85%, the TCM-7411 can function in a variety of different environments and settings. With its Power over Ethernet, or PoE, technology, the TCM-7411 can also be used in remote areas where power may otherwise be difficult to obtain or completely unavailable. Weighing just 2.29 pounds and measuring 6.0” x 4.5”, the TCM-7411 can be easily mounted in virtually any location where surveillance is necessary, including on a wall, on a pole, in a corner or as a pendant camera.
