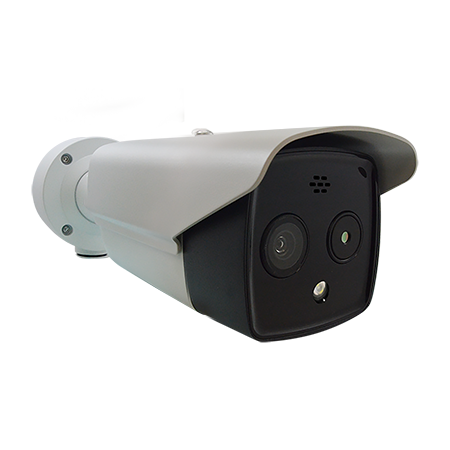

ACTi VMGB-352 4MP Metadata Camera with Day/Night, IR LED
Discontinued - Recommended Replacement: VMGB-359
Thermal and 4MP H.265 network Bullet camera for behavior analysis function which is based on deep learning algorithm as Line crossing, Intrusion and area enter and exit that are for perimeter defense purpose. The thermal imaging module is for advanced fire detection as a fire-prevention.
- 4 Megapixel Thermal and Optical Metadata Camera
- Day & Night with IR LED
- Built-in Temperature Measurement, Fire Detection
Device
| Product Type | Metadata Camera |
| Maximum Resolution | 4MP |
| Product Application | Temperature Measurement, Fire Detection |
| Application Environment | Outdoor |
| Description | Thermal and 4MP H.265 network Bullet camera for behavior analysis function which is based on deep learning algorithm as Line crossing, Intrusion and area enter and exit that are for perimeter defense purpose. The thermal imaging module is for advanced fire detection as a fire-prevention. |
| Image Sensor | Progressive Scan CMOS + Thermal sensor |
| Sensor Size | Optical: 1/2.7 " |
| Effective Pixels | Thermal: 160(H) X 120(V) |
| Spectral Range | 8-14μm |
| Thermal Sensitivity | NETD <40mK at F1.1 |
| Spatial Resolution | 2.74 mrad |
| Day / Night | Yes |
| Low Light Sensitivity | Superior |
| Mechanical IR Cut Filter | Yes |
| IR LED | Adaptive IR LED (850-940 nm) |
| IR Working Distance | 40m |
| Electronic Shutter | 1-1/100000 second (auto mode) |
Lens
| Number of Lenses | 2 Lenses |
| Focal Length | Thermal camera Fixed focal, f6.2mm Visual camera Fixed focal, f8.0mm |
| Horizontal Viewing Angle | (Visual camera) 39.42° (Thermal camera) 25° |
| Vertical Viewing Angle | (Visual camera) 22.14° (Thermal camera) 18.7° |
Video
| Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate vs. Resolution | (Visual camera) 30 fps at 2688 x 1520 30 fps at 1920 x 1080 30 fps at 1280 x 960 30 fps at 1280 x 720 (Thermal camera) 30 fps at 1280 x 720 30 fps at 704 x 576 30 fps at 640 x 480 30 fps at 352 x 288 30 fps at 320 x 240 |
| Multi-Streaming | Simultaneous dual streams |
| Wide Dynamic Range | Superior WDR (120 dB) |
| Digital Noise Reduction | 3D DNR |
| Built-in Analytics | Object Line Crossing Detection, Object Enter Area Detection, Object Exit Area Detection, People Line Crossing Detection, People Enter Area Detection, People Exit Area Detection, Vehicle Line Crossing Detection, Vehicle Enter Area Detection, Vehicle Exit Area Detection, Intrusion Detection (Forbidden Area Detection), Fire Detection |
Audio
| Audio Type | 2-way, Mic-in, Line-in, Line-out |
| Audio Compression | G.711 u-law, G.711 A-law, G.722.1, MP2L2, G.726, PCM |
Network
| Ethernet Port | 1 x Ethernet (10/100 Base-T), RJ-45 connector |
Video Analytics
| Analysis Source Type | Video |
| Metadata Accuracy | Excellent |
Temperature Measurement
| Temperature Range | -20°C ~ 150°C (-4°F ~ 302°F) |
| Temperature Accuracy | ±8°C (14.4°F) |
Detection Range
| Triggering Analytics Event Notification | (People 1.8x0.5m) 42m (Vehicle 1.4x4.0m) 126m (Supported Analytics Events included Line Crossing Detection, Enter Area Detection and Exit Area Detection for People, Vehicle and any objects.) |
| Triggering Temperature Notification | (Object 1x1m) 66m (Object 2x2m) 132m |
| Triggering Fire Detection Event Notification | (Object 1x1m) 180m (Object 2x2m) 360m |
| Observation Range | Detection: People 182m; Vehicle 559m Recognition: People 46m; Vehicle 140m Identification: People 23m; Vehicle 70m (People: 1.8 x 0.5m) (Vehicle: 1.4 x 4.0m) |
Interface
| Serial Port | 1 x RS-485 |
| Audio Interface | 1/1, 3.5mm Phone Jack |
| Local Storage | MicroSD, MicroSDHC, MicroSDXC Memory Card Slot (card not included, up to 128GB) |
| Digital Input/Output | 2/2 |
General
| Power Source | DC 12V, PoE Class 3 (IEEE802.3af) |
| Power Consumption | 7.5 W (DC), 8 W (PoE) |
| Weight | 1760g (3.88lb) |
| Dimensions | (W x H x D): 113.5mm x 115.2mm x 358.4mm (4.47" x 4.53" x 14.10") |
| Environmental Casing | Weatherproof (IP66) |
| Operating Temperature | -40°C ~ 65°C (-40°F ~ 149°F) |
| Approvals | IP66 |
| Warranty | 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
Dimension Diagram
Unit: mm [inch]
